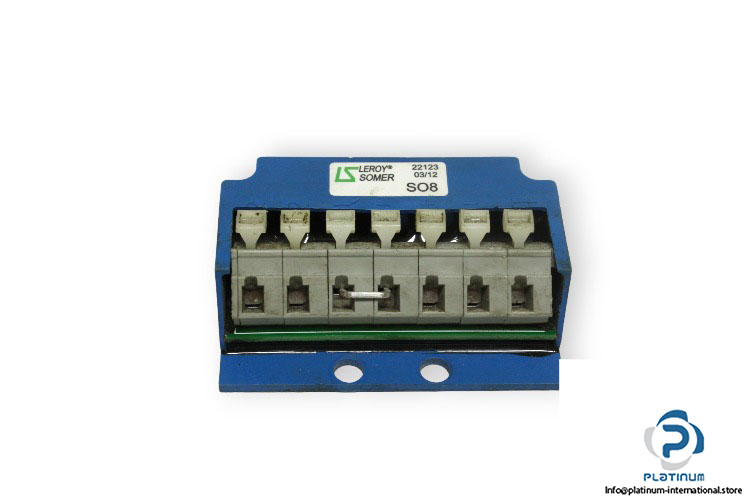

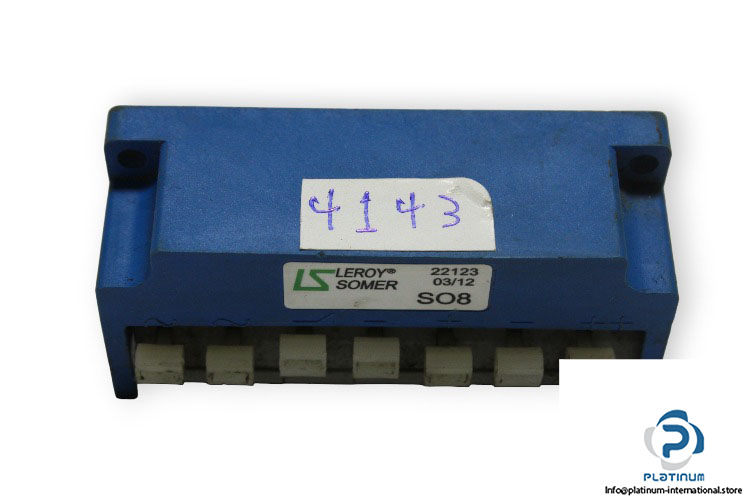

Leroy Somer SO8 Brake Rectifier
49,99$
Brushless AC Servo Motor
The Control Techniques 115 UMC301CACAA is a 115 mm frame brushless servo motor for Unidrive systems. With 9.4 Nm torque, 3000 rpm speed, and integrated 24 VDC brake, it ensures precise, efficient motion control for automation applications.Control Techniques 115 UMC301CACAA Brushless AC Servo Motor
The Control Techniques 115 UMC301CACAA is a high-performance brushless AC servo motor engineered for precision motion control applications. Designed for use with Unidrive systems, it offers excellent torque density, smooth speed regulation, and reliable braking performance. With Class H insulation and a compact 115 mm frame size, this servo motor is ideal for demanding industrial automation and robotics applications.
Manufacturer: Control Techniques
Type: Brushless AC Servo Motor
Model: 115 UMC301CACAA
MNF No.: 873755
Frame Size: 115
Motor Type: UM “ For Unidrive
Stator Length: C
| Stall Current | 5.9 A |
| Stall Torque | 9.4 Nm |
| Rated Speed | 3000 rpm |
| Constant Voltage | 98 Vrms/krpm |
| Constant Torque | 1.6 Nm/Arms |
| Number of Poles | 6 |
| Brake Voltage | 24 VDC |
| Brake Current | 0.7 A |
| Brake Torque | 12 Nm |
| Insulation Class | H |
