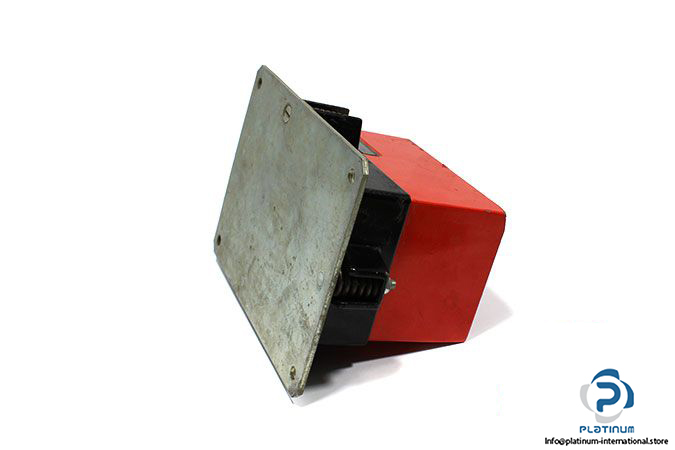

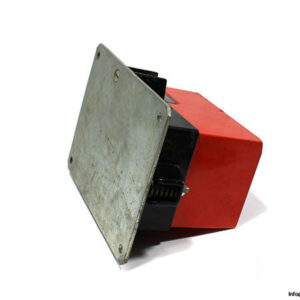

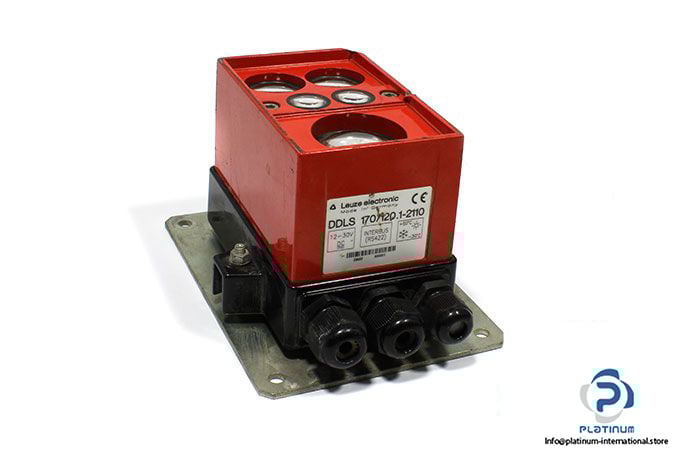

Leuze Ddls 170/120.1-2110 Serial Optical Data Transmission With BUS Capability

Manufacturer: LEUZE

Type: Serial Optical Data Transmission With Bus Capability

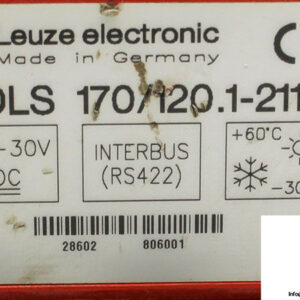

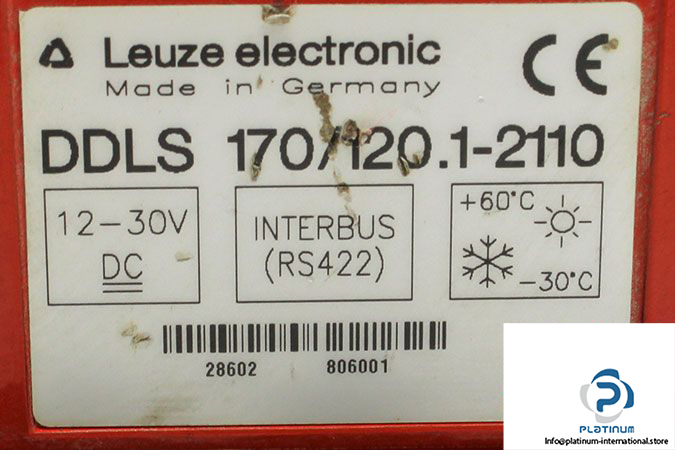

Order Code: DDLS 170/120.1-2110

Operating range: 0 … 120 m

Transmission rate: DC – 500 kbit/s

Operating voltage: 12 … 30 V DC

Connector type: M12 Connector,5-pin

Input, Terminal 4: Tx DIS

Input, Terminal 5: Rx DIS

Output, Terminal 8: Reception without functional reserve, PNP, plus switching UB – 2 V

Output, Terminal 9: Reception with functional reserve PNP, plus switching UB – 2 V

Dimensions: 36 x 140 x 69 mm

Ambient Operating temperature: –30 … 60°C

Housing: Rectangular

Housing material: Aluminum

Weight: 1.6 Kg
