Leuze Electronic VBT-50-1950.4000 / IVBR/4-50-1950-03,4000 Safety Light Curtain Receiver/Transmitter
766,66$
Safety Light Curtain
LEUZE ELECTRONIC VARIO safety light curtain set with 1,950 mm protection height, 40 beams, 50 mm spacing, and 24 V DC operation, designed for industrial machine safeguarding.LEUZE ELECTRONIC IVBR/4-50-1950-3.400 Safety Light Curtain

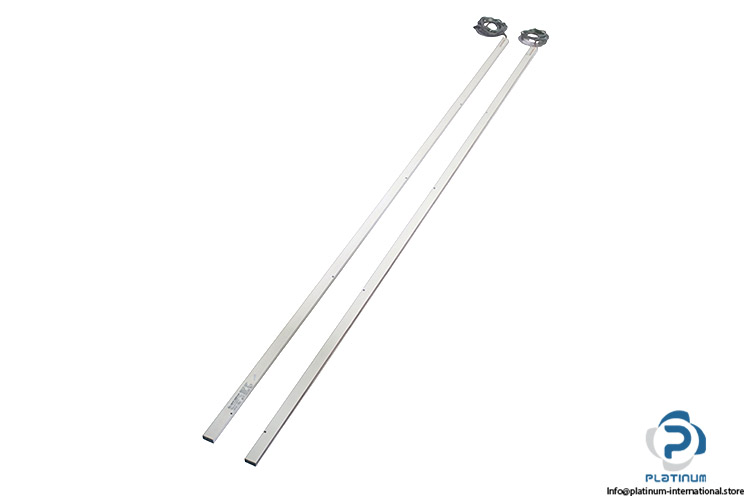

The LEUZE ELECTRONIC VARIO series safety light curtain (receiver and transmitter set) is designed for reliable machine safeguarding and personnel protection in industrial automation environments. With precise infrared LED technology and a 1,950 mm protection height, it ensures dependable detection and safety monitoring in hazardous areas.
Manufacturer: LEUZE ELECTRONIC
Type: Safety Light Curtain Receiver / Transmitter

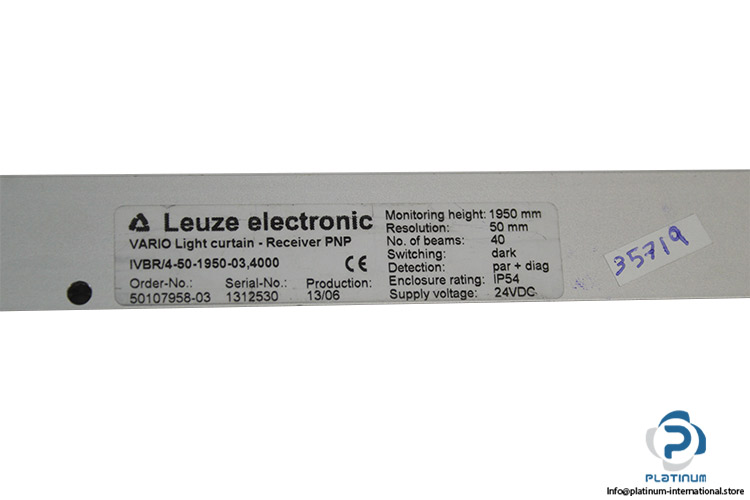

Receiver Model: IVBR/4-50-1950-3.400

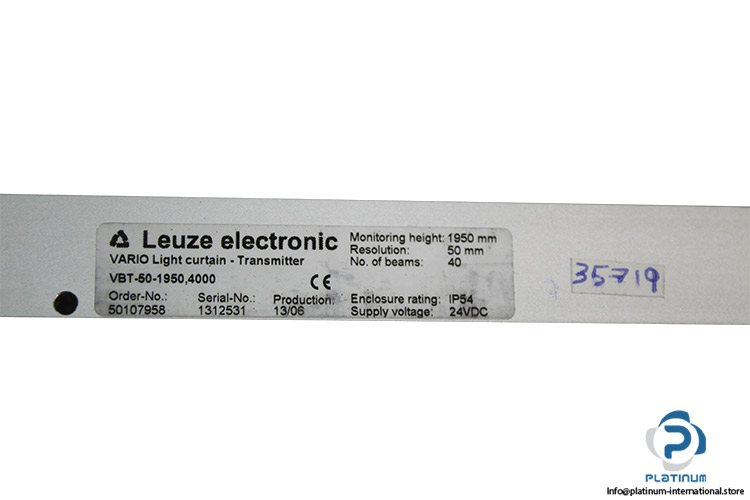

Transmitter Model: IVBR/4-50-1950-03,4000
Order No.: 50107958 / 50107958-03
Serial No.: 1312530 / 1312531
| Series | VARIO |
| Beam Spacing | 50 mm |
| Number of Beams | 40 |
| Protection Height | 1,950 mm |
| Operating Range | 0.7 ... 5 m |
| Light Source | LED, Infrared |
| Output Type | Digital Switching Output |
| Switching Device | Transistor, PNP |
| Switching Principle | Dark Switching |
| Supply Voltage | 24 V DC |
| Current Consumption (Max.) | 40 mA |
| Output | PNP / NPN (Push-Pull) |
| Output Logic | NO / NC Selectable |
| Material | Aluminum |

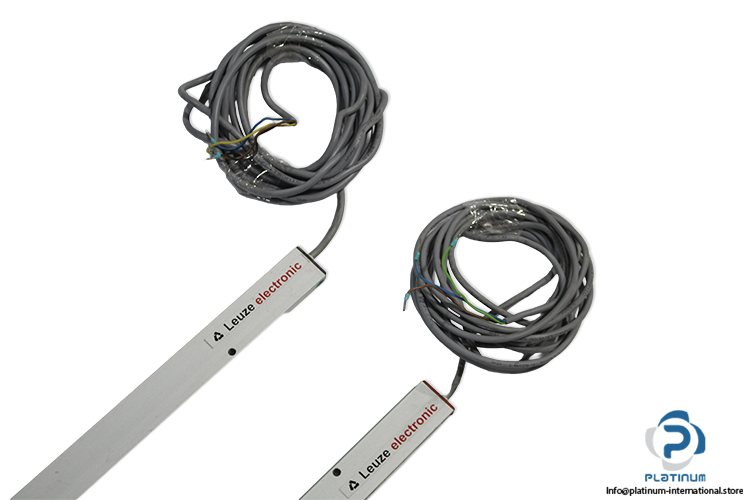

| Connection Type | Cable 4 m, 3-wires |
| Protection Class | IP54 |
| Ambient Temperature | -10 ... 40 °C |
| Dimensions | 10 x 2,160 x 27 mm |
