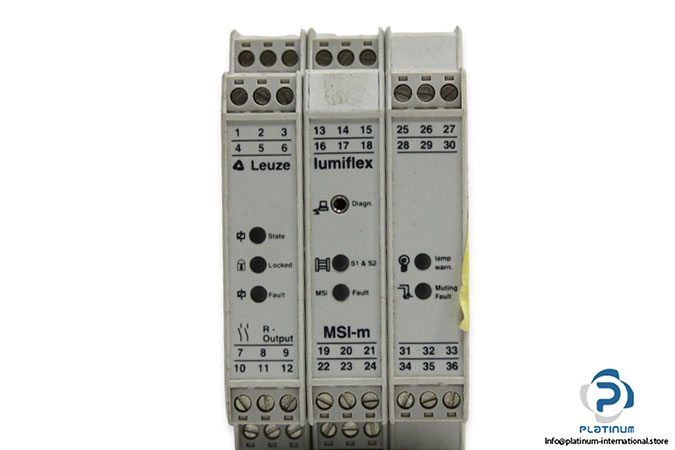

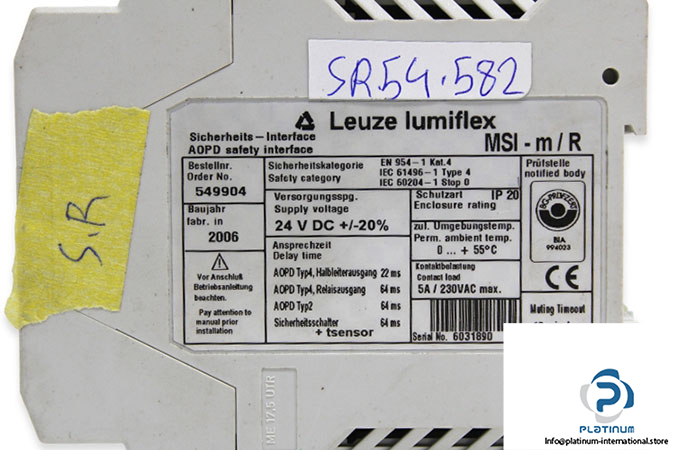

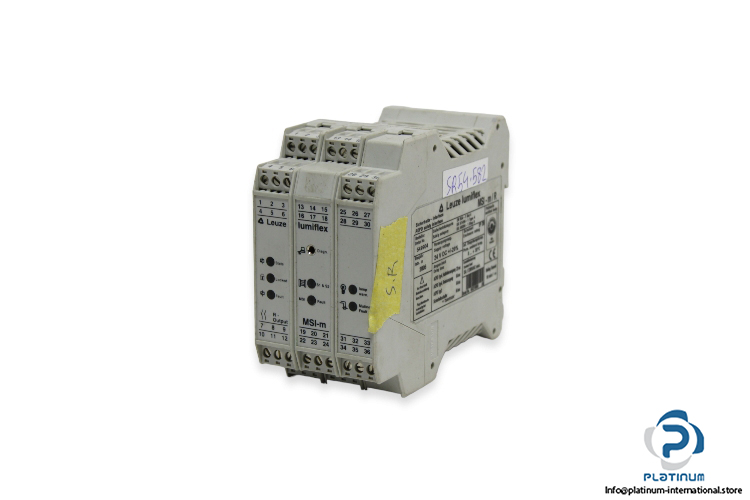

Leuze Lumiflex MSI-M/R Safety Relay

Manufacturer: Leuze Lumiflex

Type: SAFETY RELAY

Model: MSI-M/R

Part No: 549904

Series: MSI-m

Supply voltage: 24 V DC

Contact: 2 safety contacts (N/O)

Contact Load: 230 V AC/5 A

OSSD response time MSI:

For AOPD Type 4 (22 ms), transistor outputs for AOPD Type 4(64 ms), relay outputs for AOPD Type 2 (64 ms) , for safety switches (electro mechanical) (64 ms)

Output connection: pnp / npn

Type of connection Terminal: Screw terminal

Degree of protection: IP 20

Ambient temperature: 0 … +55 °C

Dimensions: 52.5 x 99 x 113.6 mm
