Level Developments VS-05-C-1-6 Inclinometer
Used
In stock1 unitReady to ship
Inclinometer
The LEVEL DEVELOPMENTS VS-05-C-1-6 is a dual-axis inclinometer offering precise angle measurement with 0.001° resolution and RS232 / 4-20mA outputs. Ideal for industrial and control system applications.±5°4-20mA52707AccuracyAngleAxisDevelopmentsDualHighInclinometerIndustrialLevelNOpartPrecisionRangeRS232SensorTilt
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

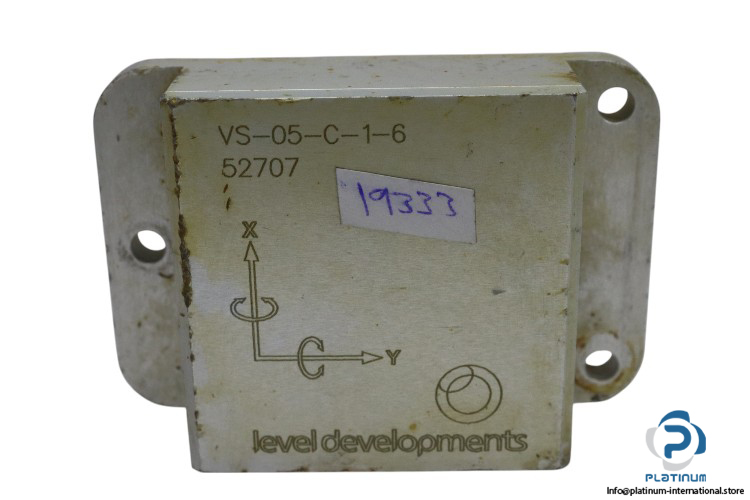

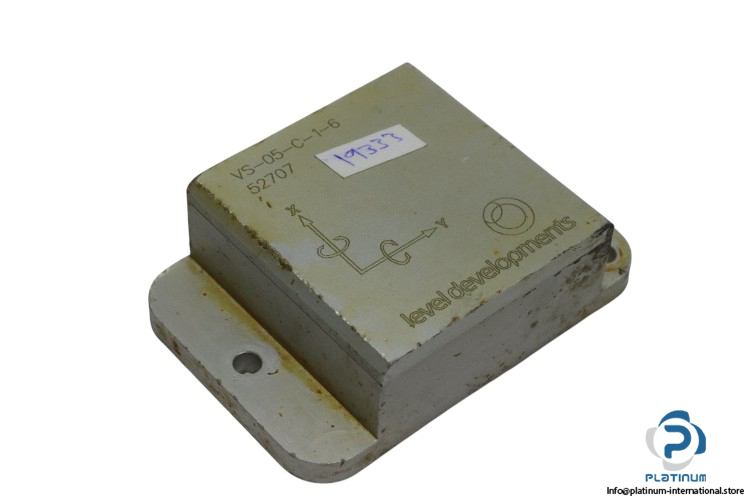

LEVEL DEVELOPMENTS VS-05-C-1-6 Inclinometer
The LEVEL DEVELOPMENTS VS-05-C-1-6 is a high-precision dual-axis inclinometer, designed for industrial and engineering applications that demand accurate angle measurement. With advanced output options and high resolution, it ensures reliable tilt monitoring in various environments.
Manufacturer: LEVEL DEVELOPMENTS
Type: Inclinometer
Model: VS-05-C-1-6
Part No.: 52707
Technical Data:
- Supply Voltage: 12 to 30 V
- Number of Axis: 2
- Range: ±5°
- Resolution: 0.001°
- Accuracy at 20°C: 0.015°
- Output Type: RS232 and 4-20mA
- Output Format: 38400,8,N,1
- Low Pass Filter Frequency: 0.125 to 8
- Dimensions: 90 x 60 x 28 mm
