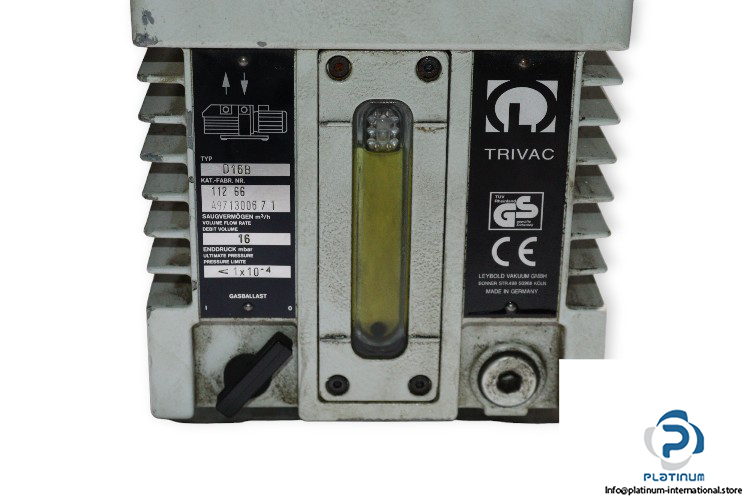

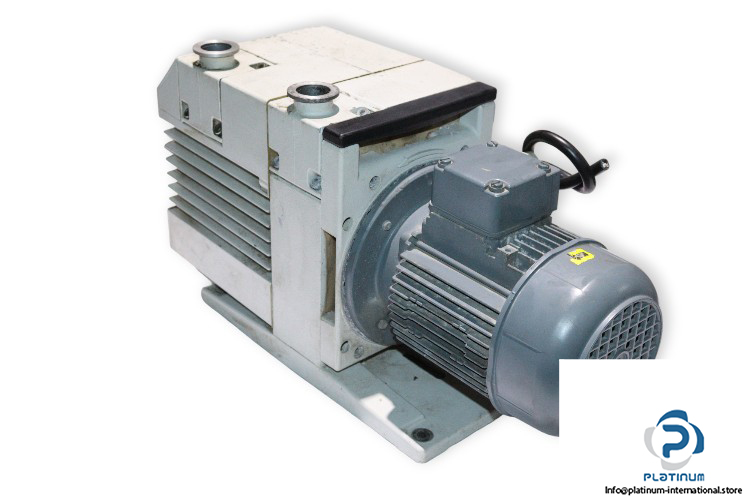

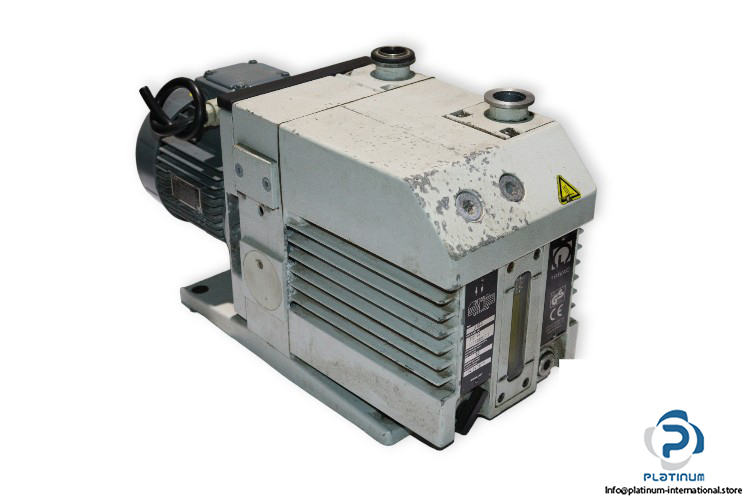

Leybold D16B Rotary Vane Vacuum Pump
Used
Manufacturer: Leybold Trivac
Type: Rotary Vane Vacuum Pump

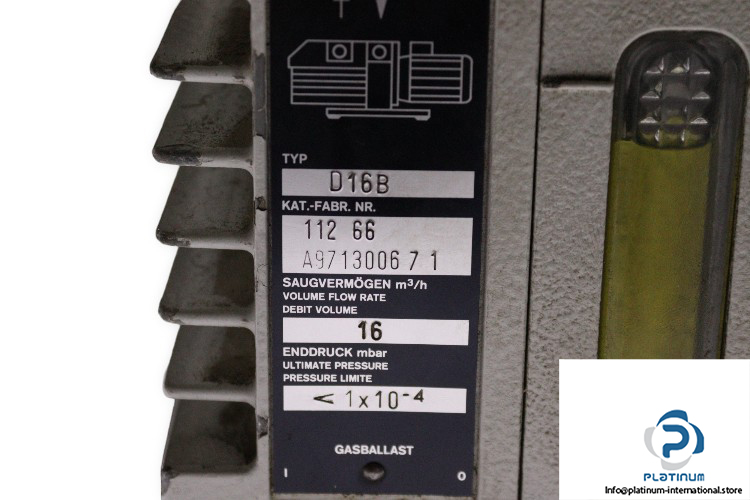

Model: D16B
Ultimate Pressure: [mbar]: 1 x 10»4
Volume Flow Rate [m3/h]: 16

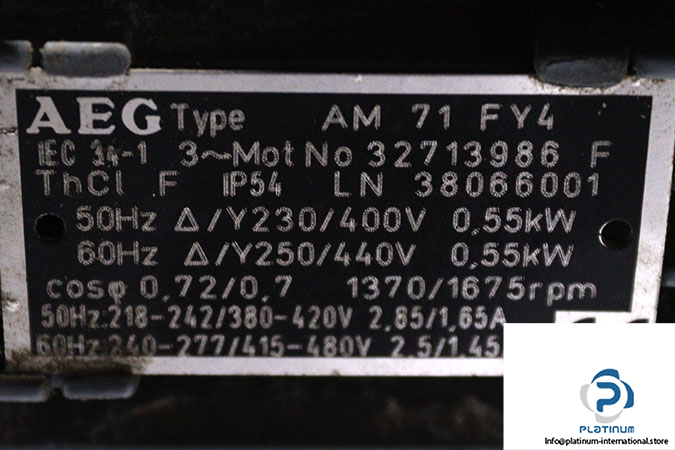

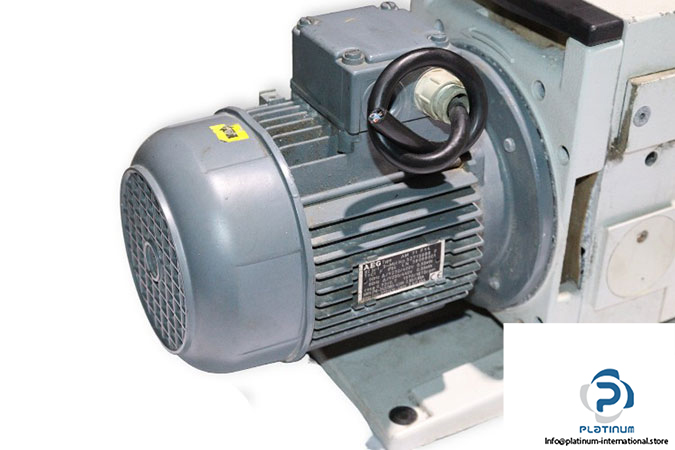

Attachment: AEG AM 71 FY4 3 PHASE-MOTOR
Manufacturer: AEG
Type: 3 Phase Motors
Model: AM71FY4
Rated Power [kW]: 0.55/0.55
Rated Voltage [V]: 230-250/400-440 Delta-Star
Rated Current [A]: 2.85-2.5/1.65-1.45
Rated Voltage [V]: 346-415/346-460 Star
Rated Speed [rpm]: 1370/1675
Frequency [Hz]: 50/60
Power Factor: 0.72/0.70
Thermal Class: F
Protection Class [IP]: 54
