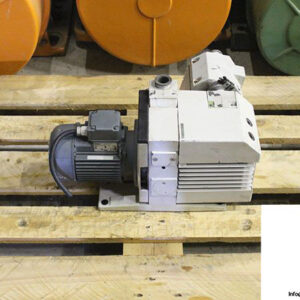

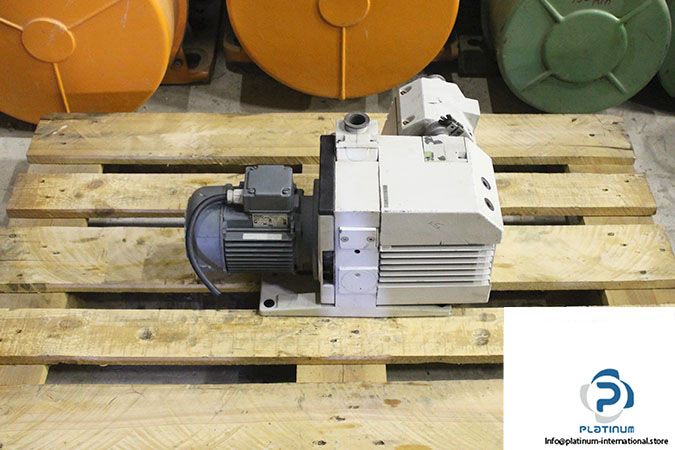

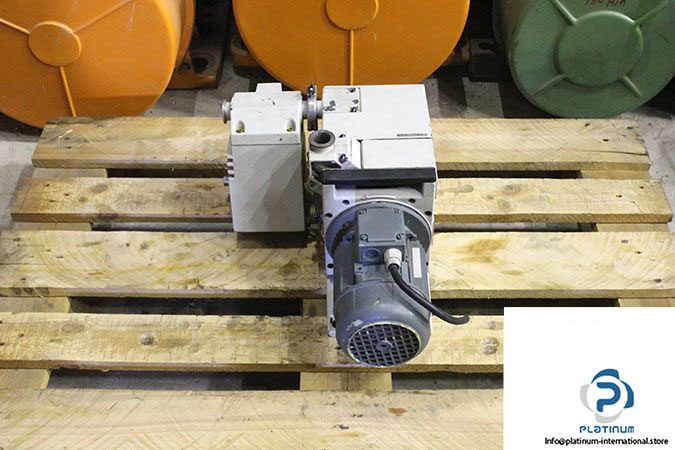

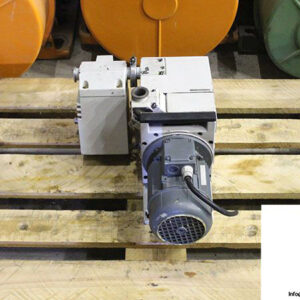

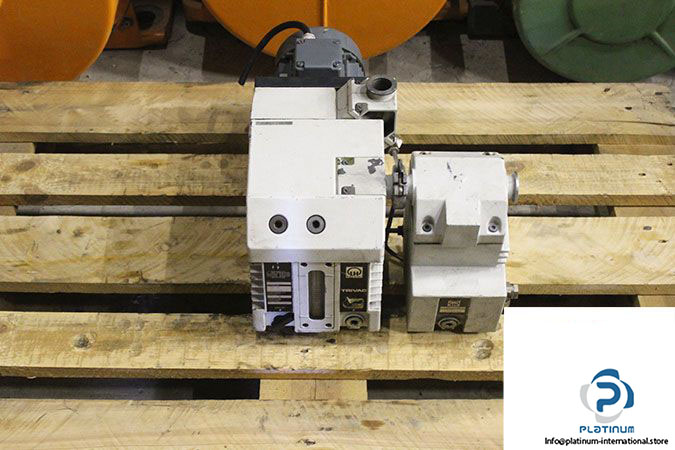

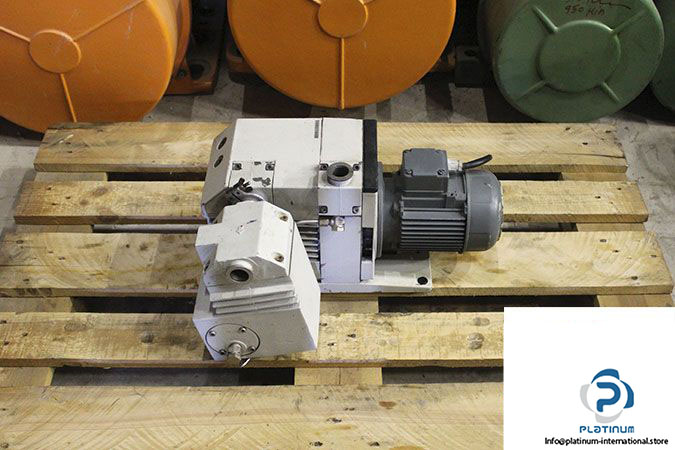

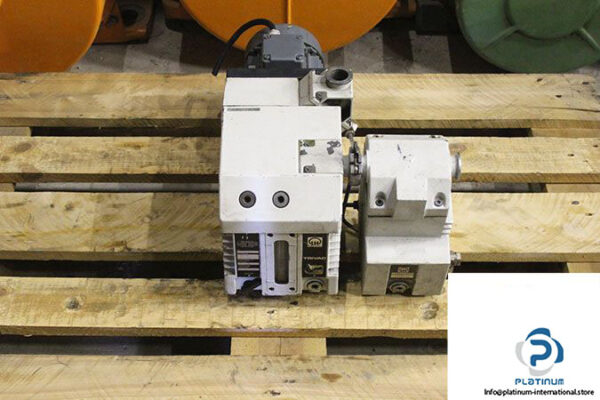

Leybold Trivac S16B Rotary Vane Vacuum Pump
Manufacturer: Leybold Trivac
Type: Rotary Vane Vacuum Pump

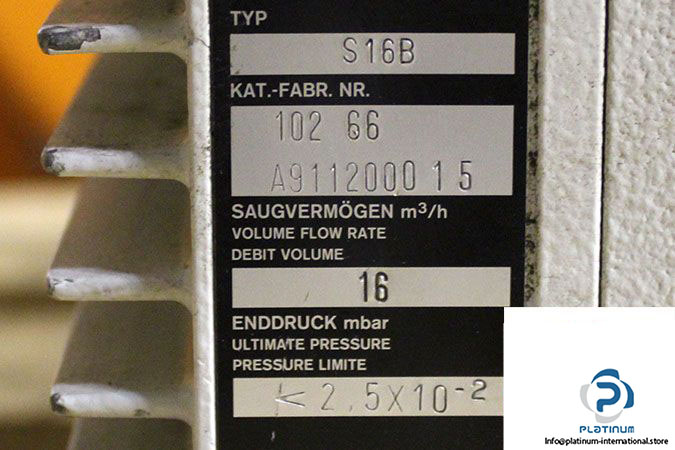

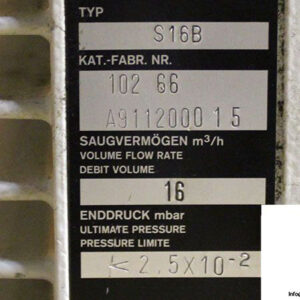

Model: S 16 B
Part Nr.: 102 66
Mat.: A911200015
Volume Flow Rate [m3/h]: 16
Ultimate Partial Pressure [mbar]: 2.5×10-4
Ultimate Total Pressure [mbar]: 6.5 x 10-1
Pumping Speed [m3/h]: 16.5
Nominal Pumping Speed [m3/h]: 18.9
Water Vapor Tolerance [mbar]: 40
Oil Capacity Min/Max [l]: 0.55/1.0
Protection Class [IP]: 54
Inlet Flange [DN]: 25
Exhaust Flange [DN]: 25
Frequency [Hz]: 50

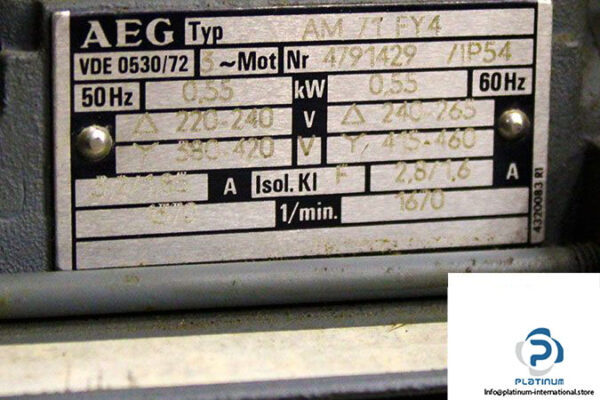

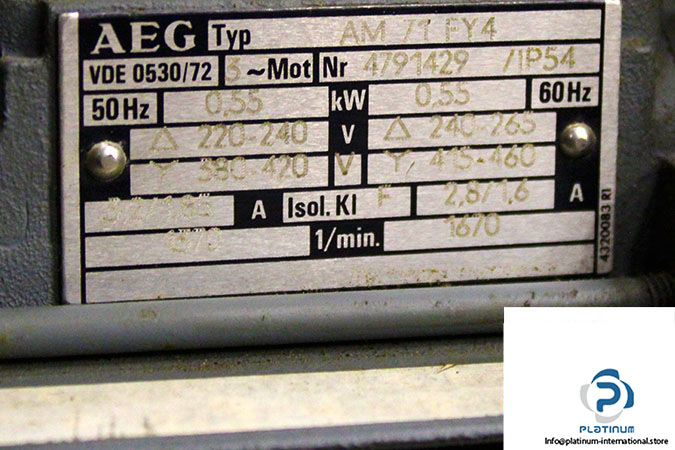

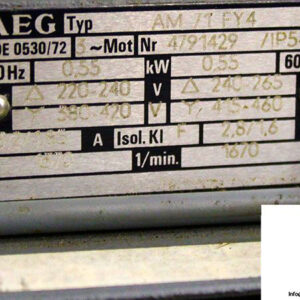

Attachment: AEG AM 71 FY4 Three Phase E-Motor
Manufacturer: AEG
Type: Three Phase E-Motor
Model: AM71FY4
Rated Voltage [V]: 200-240/240-265 Delta
Rated Current [A]: 3.2/1.05
Rated Power [kW]: 0.55
Rated Speed [rpm]: 1370
Rated Voltage [V]: 380-420/415-460 Star
Rated Current [A]: 2.8/1.6
Rated Power [kW]: 0.55
Rated Speed [rpm]: 1670
Frequency [Hz]: 50/60
Protection Class [IP]: 54
Insulation Class: F
Weight [kg]: 28.0
