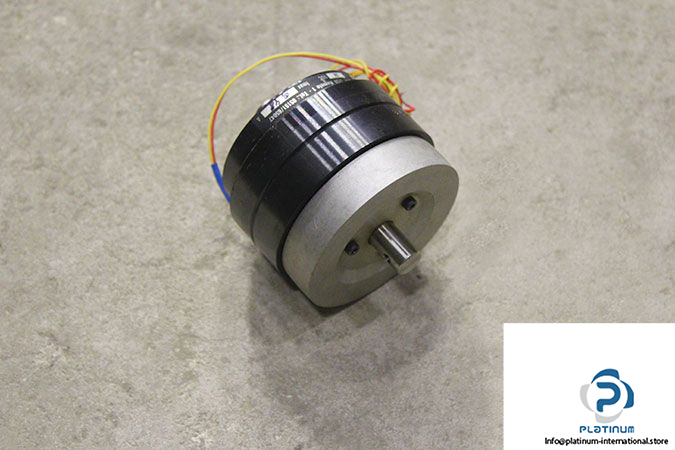

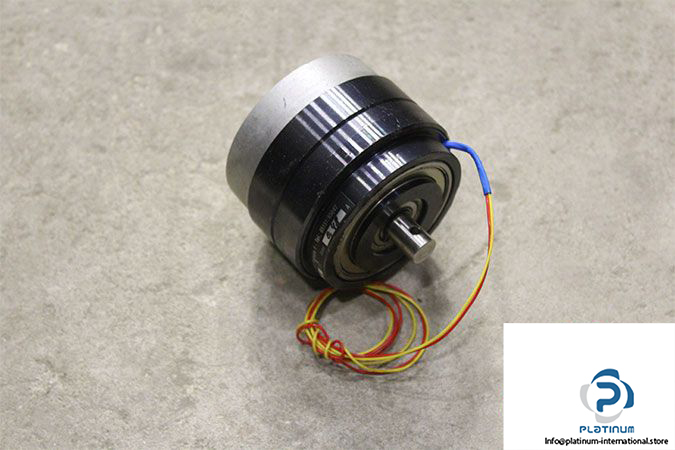

Liedtke Efas 50 Magnetic Particle Clutch

Manufacturer: Liedtke Antriebstechnik

Type: Magnetic Particle Clutches

Model: EFAS50

Nominal Voltage [VDC]: 24

Max. Current [A]: 0.48

Nominal Torque [Nm]: 5

Minimal Torque [Nm]: 0.05

Coil Resistance [Ω]: 24

Min Rotation Speed [rpm]: 60

Max Rotation Speed [rpm]: 3000

Rated Current DC [A]: 0.65

Rotor Inertia [kg.m²]: 37.10^-6

Weight [kg]: 1.7
