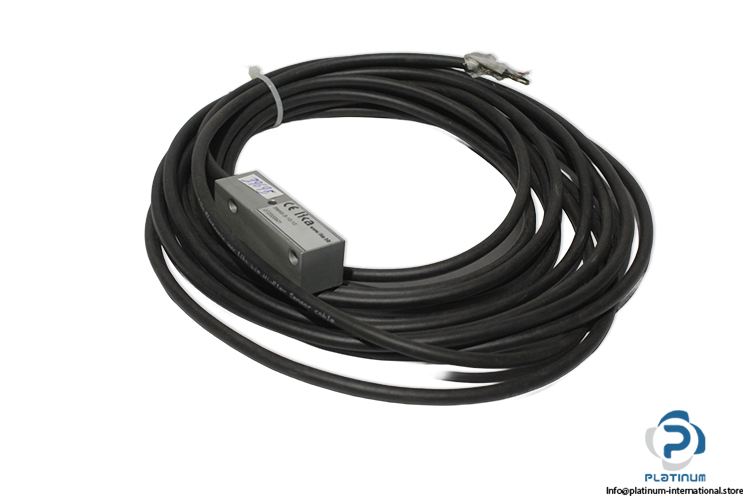

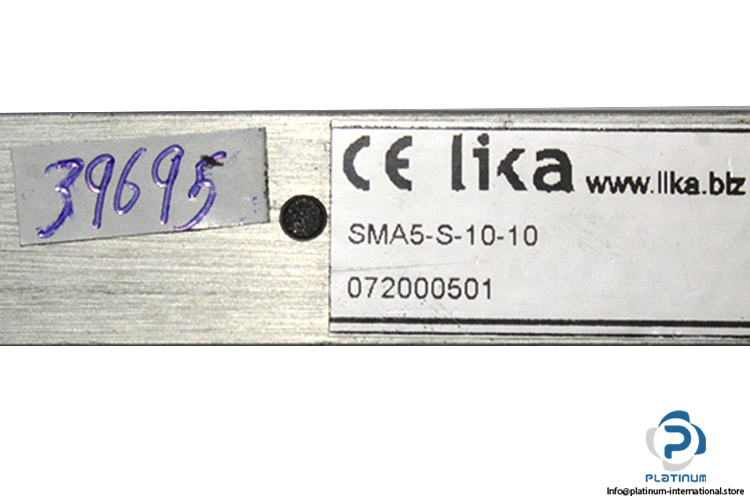

Lika SMA5-S-10-10 Absolute Linear Encoder
New
In stock1 unitReady to ship
Absolute Linear Encoder LIKA SMA5-S-10-10 absolute linear encoder with SSI interface, high measurement accuracy and up to 5 m measuring length for industrial position control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 145902 |
| Output/Interface | SSI |
| Resolution | 100, 50, 10, 5 µm |
| Sensor Accuracy | ±20 µm |
| Max. Repeat Accuracy | ±1 |
| Increment Output Circuits | SSI |
| Position Refresh | 250 µs |
| Power Supply | 10 ... 30 V DC |
| Protection | Against inversion of polarity and short-circuit |
| EMC | Acc. to EN 61000-6-2 level 3 |
| Functions | Zero setting, Counting direction |
| Measurement Length | 5 m |
| Operating Temperature Range | -25 to 85°C |

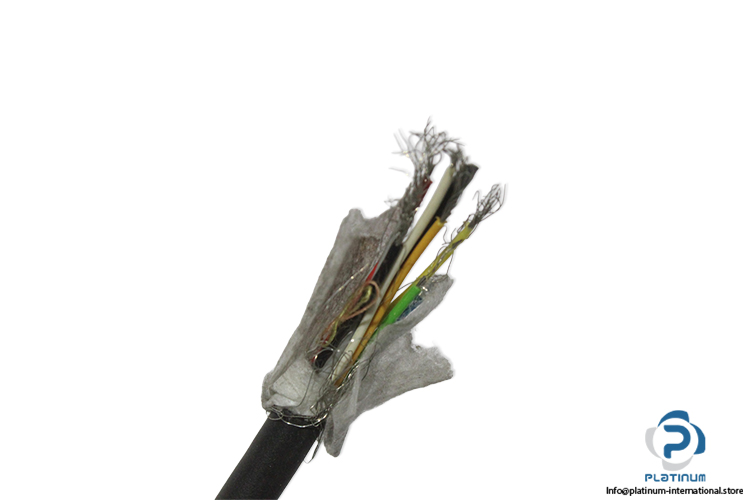

| Electrical Connection | Lika Hi-flex cable M8 2.0 m or M12 8-pin inline plug |
| Gap Between Sensor/Tape | 0.1 ... 1.0 mm |
| Travel Speed (Mechanical) | 5 m/s |
| Max. Measurement Length | 5.05 m |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103714 |
| Weight | 0,34 |
