Lincoln 5U1-30BL-L430 Ultrasonic Sensor
New
Available on request
555,55$
Lincoln Ultrasonic Sensor/Sonar Sensor 5U130BLL430 with sensing range of 50 to 500 mm, resolution of 1 mm, and high protection degree (IP65). Features include adjustable hysteresis, 400 kHz ultrasonic frequency, and 8 Hz switching frequency.
20024400550500CableCurrentdcFrequencyHighhysteresisIECIndustrialIP65kHzLevelLincolnlowmAmmPinsRangeSensingSensorSensorsSocketsonarStandardSwitchingtoUltrasonicV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

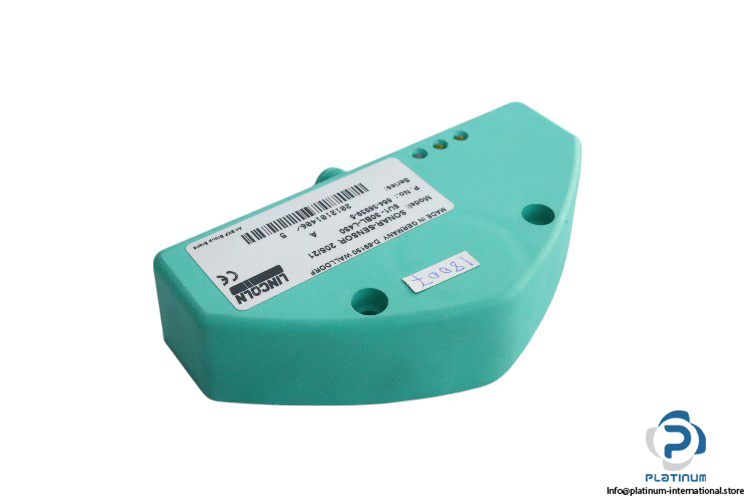

Lincoln Ultrasonic Sensor/Sonar Sensor 5U130BLL430
Lincoln Ultrasonic Sensor/Sonar Sensor 5U130BLL430 is a high-performance sensor designed for accurate and reliable distance measurements. Ideal for industrial and automation applications, it offers precise sensing capabilities with various features to ensure smooth operation. Below are the key technical specifications:
- Manufacturer: Lincoln
- Type: Ultrasonic Sensor/Sonar Sensor

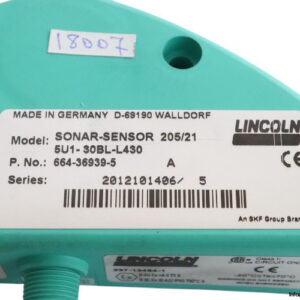

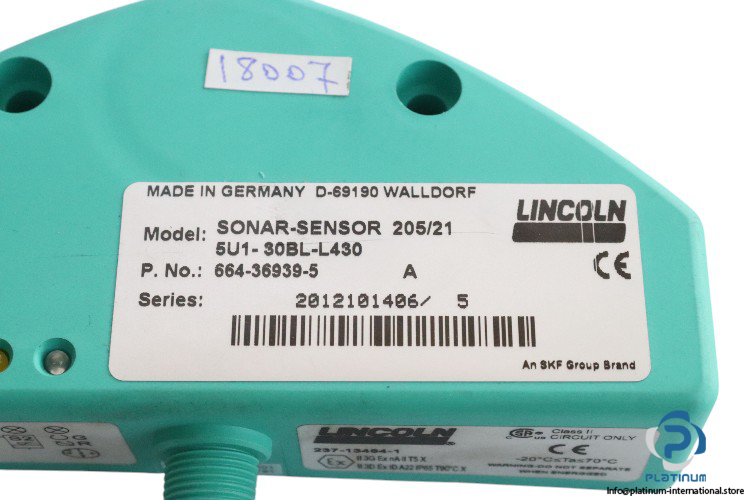

- Model: 5U130BLL430
- Part No.: 664-36939-5

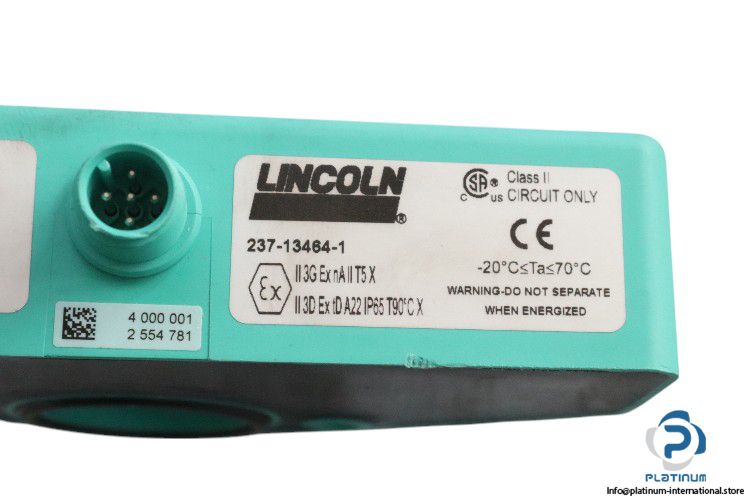

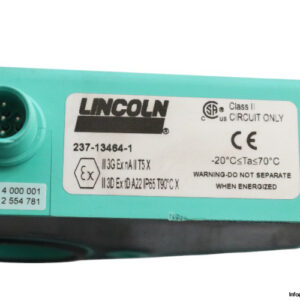

- Cable Socket No.: 237-13464-1
Technical Data:
- Sensing Range: 50 to 500 mm
- Sensing Distance at High Level: 60 mm
- Reservoir Adjusted: 30L Reservoir (Pump 215)
- Hysteresis at High Level HV: 20 mm
- Hysteresis at Low Level HL: 50 mm
- Rated Operational Voltage Ue: 24 V DC
- Rated Normal Current Ie: max. 200 mA
- Switching Function: High level (NO), low level (NC)
- Connection Operating Voltage Range Ub: 20 to 30 V DC
- Ultrasonic Frequency: 400 kHz
- Switching Frequency: 8 Hz

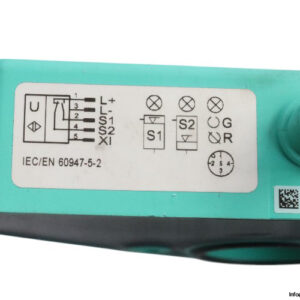

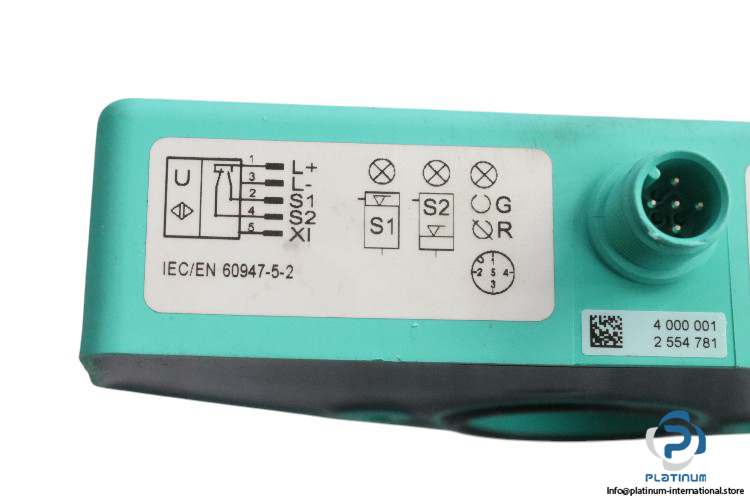

- No. of Pins: 5
- Connection: By means of cable socket
- Standard: IEC/EN 60947-5-2
- Resolution: 1 mm
- Protection Degree: IP65
- Ambient Temperature: -20 to 70°C
- Dimensions: 125 x 64.7 x 30 mm
