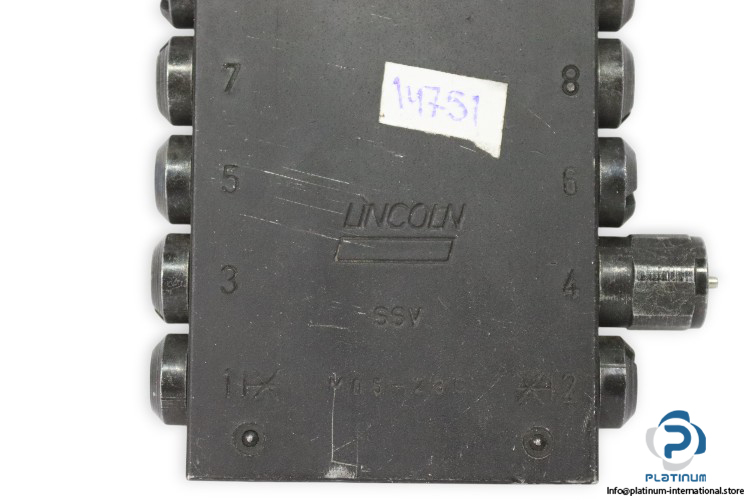

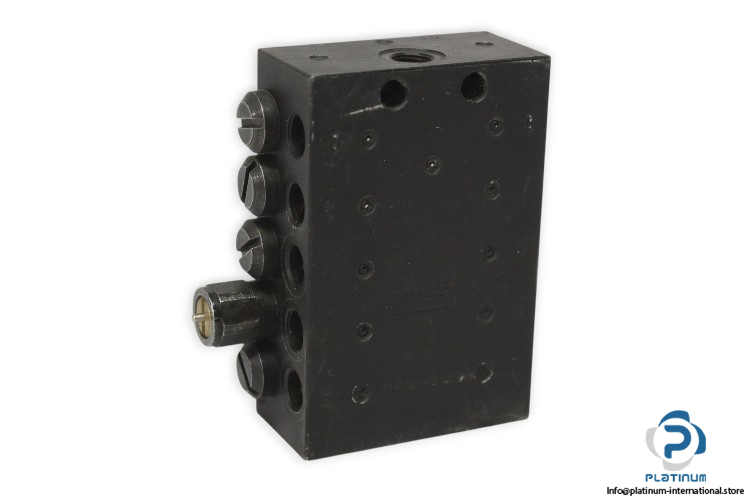

Lincoln SSV M05-23C Progressive Metering Device
Used
In stock1 unitReady to ship
PROGRESSIVE METERING DEVICE
Block-design metering device for centralized lubrication systems. Compatible with grease and oil, and supports up to 350 bar pressure with precision delivery of 0.07 cc/stroke.0.071BlockCCCentralizedDeviceEquipmentGreaseGroupHighIndustrialLincolnlubricationM0523CM10MeteringModelOutletperPressureProgressiveSKFSSVStrokeSystemx
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
LINCOLN SSV M0523C PROGRESSIVE METERING DEVICE
Compact and efficient progressive metering device for centralized lubrication systems. Designed in a robust block format, this unit ensures precise lubricant distribution for industrial machinery using grease or oil under high pressure and variable temperatures.
Manufacturer: Lincoln (an SKF Group brand)
Type: Progressive Metering Device
Model: SSV M0523C
| Design | Block design |
| Lubricant | Grease up to NLGI 2, oil at least 40 mm²/s |
| Metering Output | 0.07¯cc per piston stroke |
| Max Operating Pressure | 350 bar |
| Min Operating Pressure | 20 bar |
| Outlet Interface | 4 mm tubing |
| Operating Temperature | -40 to +200¯°C |
| Outlet Connection | M10 x 1 |
| Dimensions | Min: 60 x 60 x 30 mm, Max: 180 x 60 x 30 mm |
| Connection | G1/8 |
