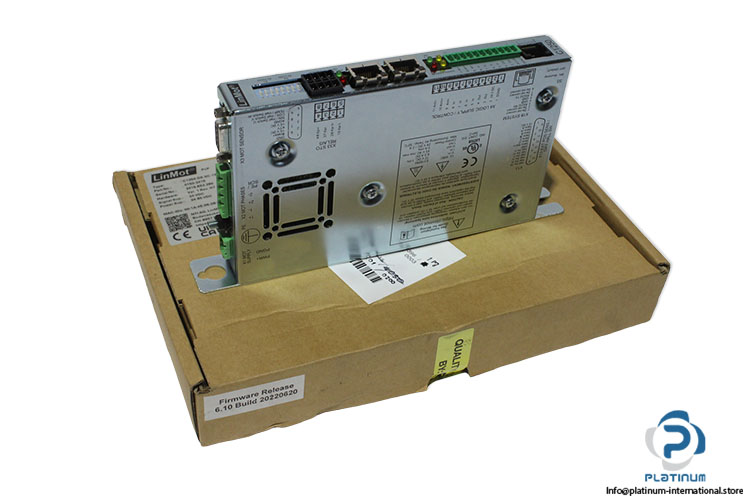

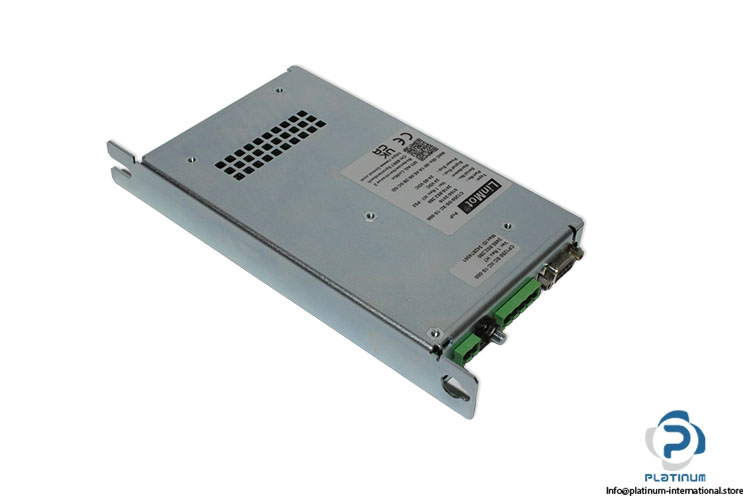

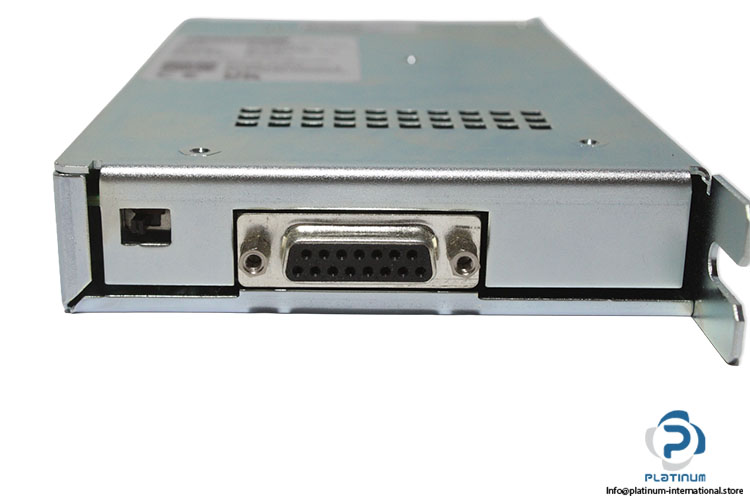

Linmot C1250-DS-XC-1S-000 Servo Drive Controller
New
In stock1 unitReady to ship
Servo Drive Controller Linmot C1250-DS-XC-1S-000 servo drive controller with EtherCAT communication, STO safety relay, 72 VDC input, and advanced motion control capabilities for industrial automation applications.
AutomationC1200ControlControllerDriveElectronicsEtherCATIndustrialLinmotMotionmotorRelayRS232ServoSto
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

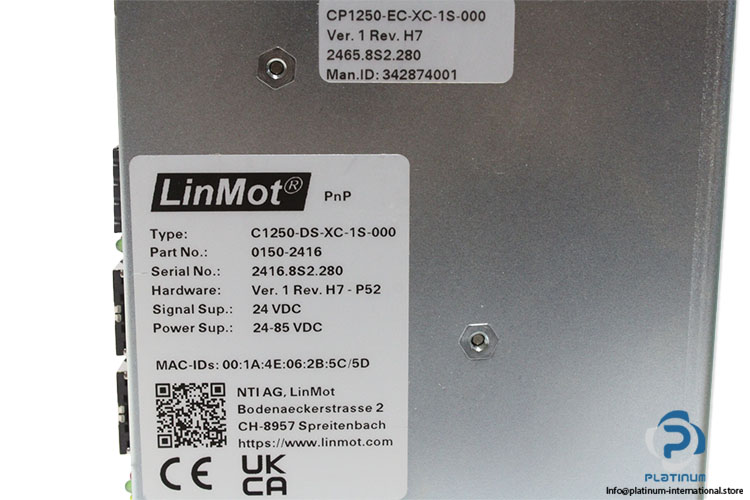

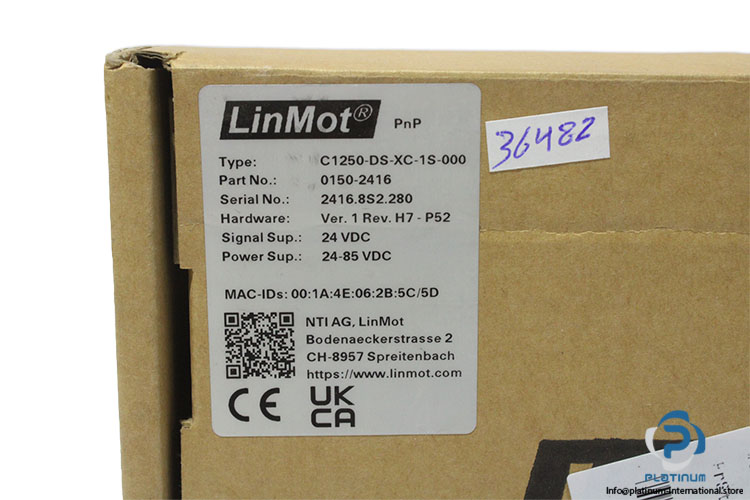

| Part No. | 0150-2416 |
| Serial No. | 2416.8S2.280 |
| Hardware | Ver. 1 Rev. H7 - P52 |
| MAC Address | 00:1A:4E:06:2B:5C/5D |
| Code | 342874001 |
| Series | C1200 |
| Analog Inputs | 0 .. 10 V, -10 … +10 V |
| No. of Digital Inputs (DI) | 4 |
| No. of Digital outputs (DO) | 2 |
| Signal Supply | 24 VDC |
| Power Supply | 24-85 VDC |
| Input Voltage | 72 VDC 1-Ph |
| Input Current | 6.5 A rms |
| Output Voltage | 43 VAC rms max. |
| Output Current | 5 A rms |
| Control Power | 24 VDC / 2 A |
| Output Frequency | 5-200 Hz |
| Communication | EtherCAT, RS232 |

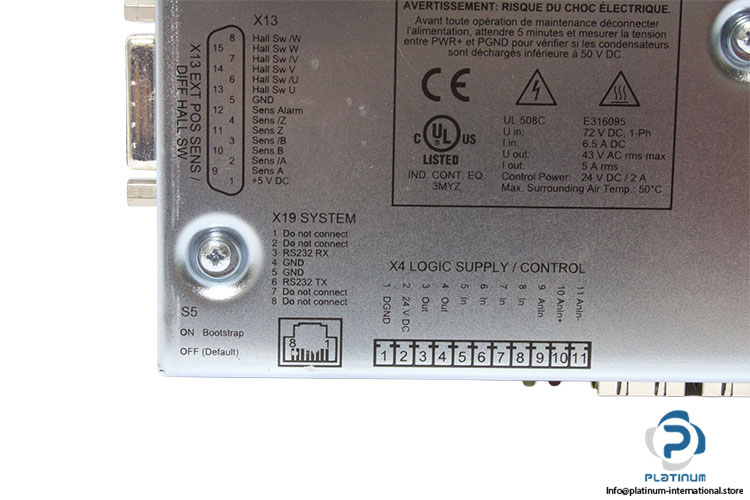

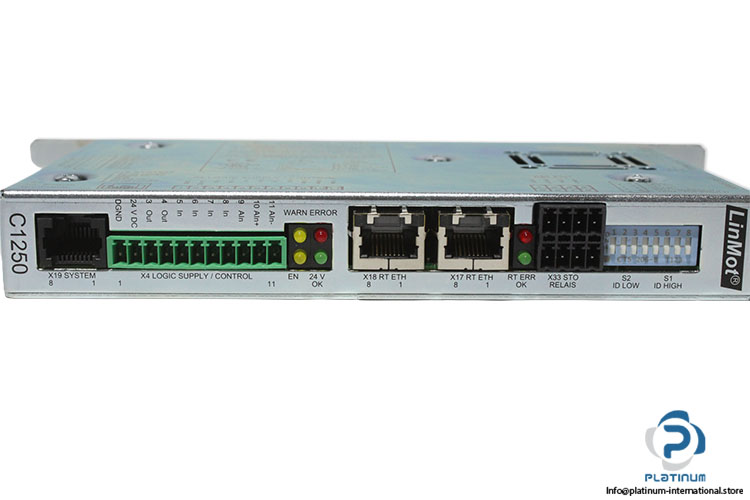

| Interfaces | X17 RT ETH, X18 RT ETH, X19 SYSTEM |

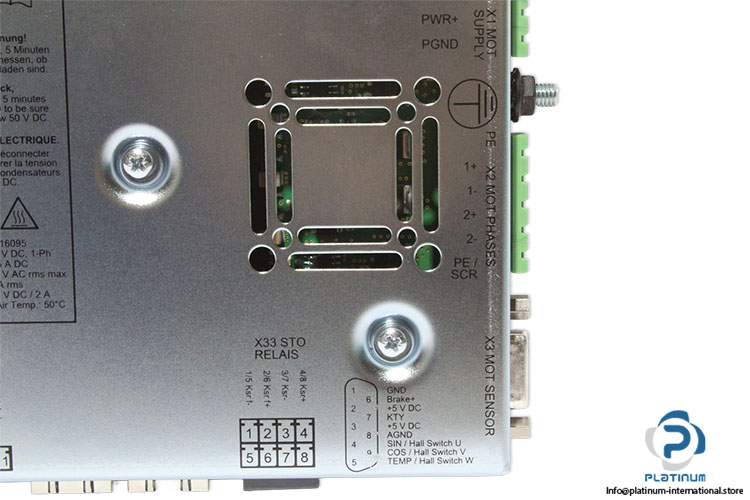

| Motor Connections | X1 MOT POWER, X2 MOT PHASES, X3 MOT SENSOR |
| Safety Function | STO Relay |
| Ambient Temperature | max. 50°C |
| Certificate | CE, UKCA, UL Listed |
| Dimensions | 25 x 206 x 106 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097701 |
| Weight | 0,89 |
