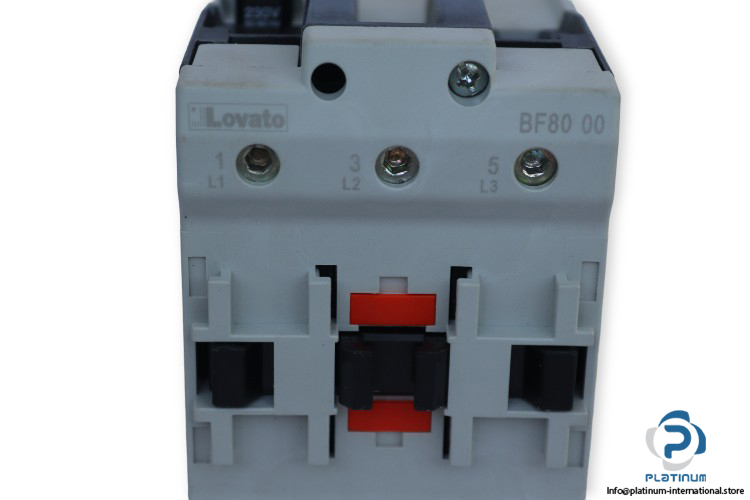

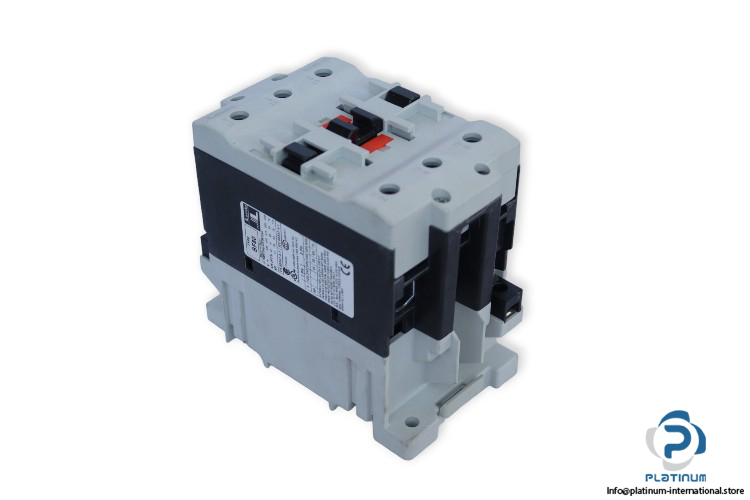

Lovato Electric 11 BF80 00 230 Contactor

Manufacturer: LOVATO ELECTRIC
Type: Contactor
Model: 11BF8000230

Series: BF80

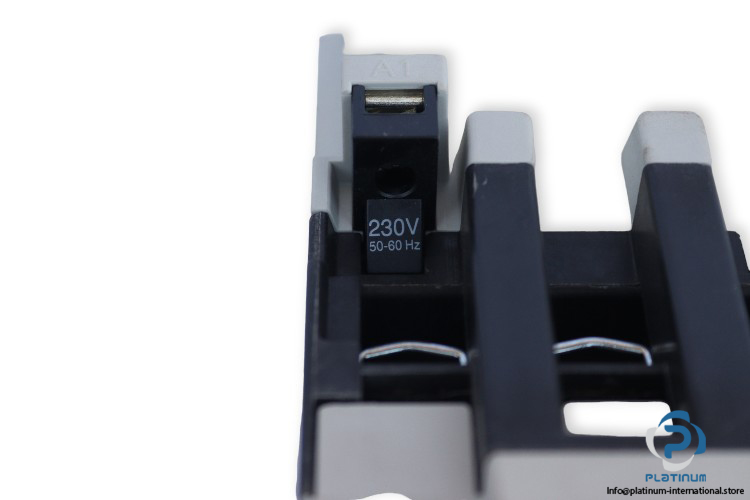

Rated Coil Voltage: 230 V AC
Rated Operational Voltage: 600 V AC
Rated Operational Current AC-3: 80 A
Rated Thermal Current: 125 A
Frequency: 50 … 60 Hz
Power AC-3:
230 V AC: 22 kW
400 / 415 / 440 V AC: 45 kW
500 / 690 V AC: 55 kW
1000 V AC: 37 kW
Power Loss AC-3: 1.25 W
Rated Insulation Voltage: 1 kV
Rated Impulse Voltage (Uimp): 8 kV
No. of Poles: 3-Pole
Rated Breaking Capacity:
440 V: 640 A
500 V: 625 A
690 V: 456 A
Protection Class: IP20
Ambient Temperature: -40 … 70 °C
Dimensions: 110 x 55 x 114.5 mm
