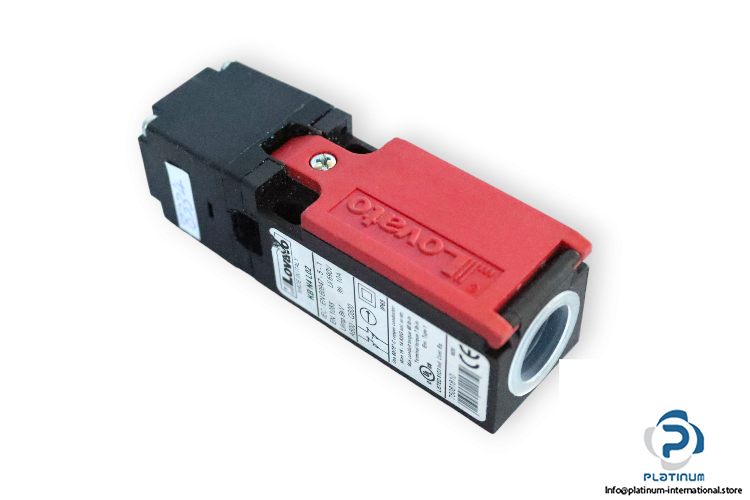

Lovato KB N4 L02 Limit Switch
Manufacture: Lovato
Type: Limit Switch
Model: KBN4L02
Series: K
Material Housing: Polymer thermoplastic
Type of contact: 2 NC Slow action
Operating head fixing: Locking bayonet insert
Thermal current Ith: 10 A
Rated insulation voltage Ui: 690 V
Rated impulse withstand voltage Uimp: 6 Kv
Cable connection: Self-releasing screw terminal
Cable entry: M20 on the bottom
Operating temperature: -25 … 70°C
Protection degree: Terminals IP20, Body housing IP65
Pollution degree: 3
Protection degree: IP65
