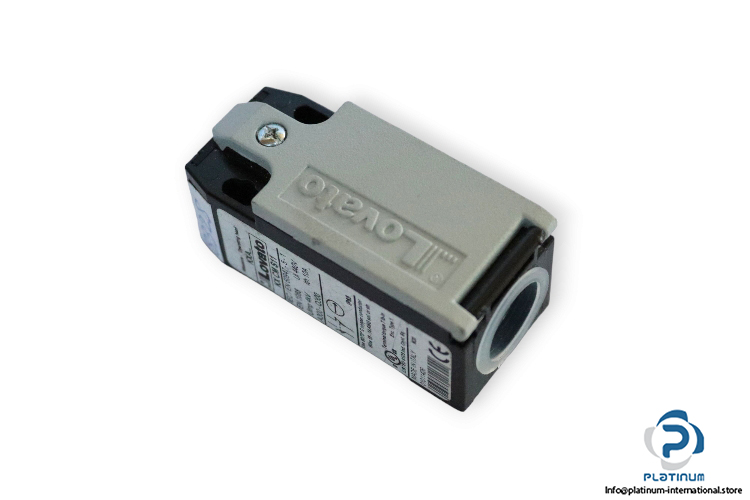

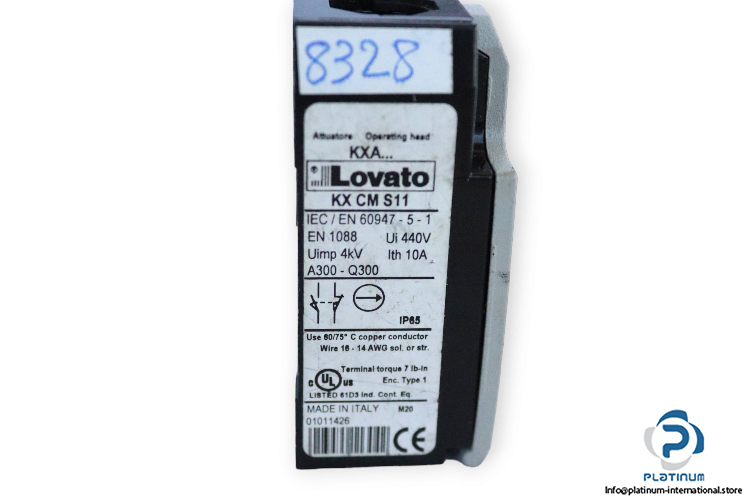

Lovato KX CM S11 Limit Switch Body

Manufacture: Lovato
Type: Limit Switch Body
Model: KXCMS11
Series: K

Material Housing: Aluminium-zinc alloy
Type of contact: 1NO+1NC Snap action
Operating head fixing: Locking bayonet insert
Thermal current Ith: 10 A
Rated insulation voltage Ui: 440 V
Rated impulse withstand voltage Uimp: 4 Kv
Operating head: Locking bayonet insert
Cable connection: Self-releasing screw terminal
Cable entry: M20
Operating temperature: -25 … 70°C
Protection degree: Terminals IP20, Body housing IP65
Pollution degree: 3
