Lowara 15SV13P110T Multistage Pump
Used
In stock1 unitReady to ship
Multistage Pump
Lowara 15SV13P110T multistage pump with 8“24 m³/h flow rate, up to 179 m head, 11 kW power, and IE2 motor for high-pressure industrial applications. Ideal for boosting systems, industrial water supply, and continuous duty hydraulic installations.11kW15SV13P110TBoostingHighIE2IndustrialIP55LowaramotormultistagePressurepumpsupplySystemVerticalWaterXylem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Xylem Service Lowara 15SV13P110T Multistage Pump
The Lowara 15SV13P110T multistage pump by Xylem Service is designed for high-pressure water transfer and industrial applications requiring stable hydraulic performance and reliable operation.
Manufacturer: Xylem Service
Brand: Lowara
Type: Multistage Pump
Model: 15SV13P110T
Code: 1016L152A
Seal: Q1BEGG E

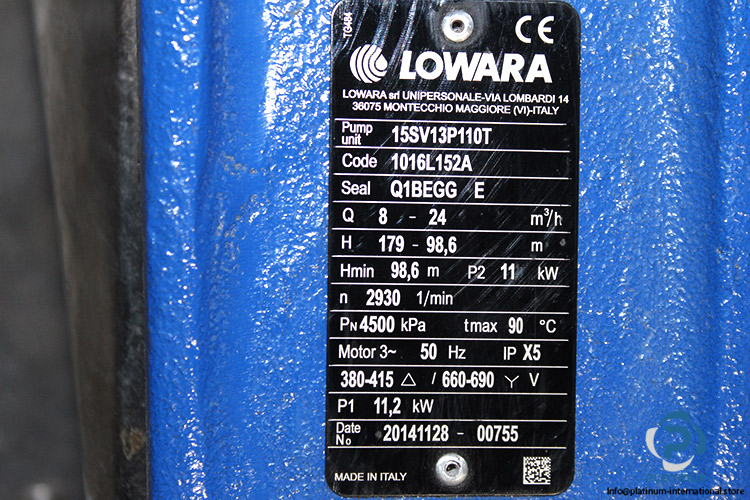

Technical information “ Pump
- Flow Rate (Q): 8 “ 24 m³/h
- Head (H): 179 “ 98.6 m
- Minimum Head (Hmin): 98.6 m
- Speed (n): 2930 1/min
- Power P2: 11 kW
- Rated Pressure (Pn): 4500 kPa
- Maximum Temperature (tmax): 90 °C

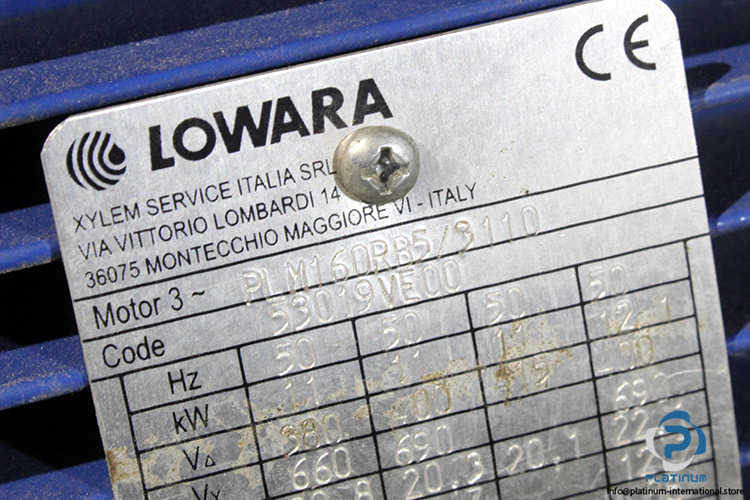

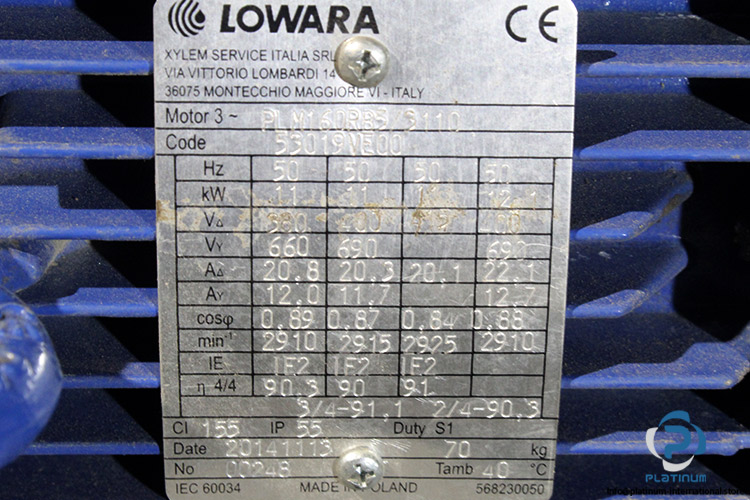

Attachment “ LOWARA PLM160RB5/3110 Three Phase Motor
Motor Model: PLM160RB5/3110
Motor Code: 53019VE00 / 00248
Electrical Data (50 Hz)
- Frequency: 50 Hz
- Power: 11 “ 12.1 kW
- Voltage (Δ): 380 “ 415 V
- Voltage (Y): 660 “ 690 V
- Current (Δ 380 V): 20.8 A
- Current (Δ 400 V): 20.3 A
- Current (Δ 415 V): 20.1 A
- Current (Δ 400 V / 21.1 A): 22.1 A
- Current (Y 660 “ 690 V): 12.0 “ 12.7 A
- Power Factor (cosφ): 0.89 / 0.87 / 0.84 / 0.88
- Speed: 2910 “ 2925 rpm
- IE Class: IE2
- Efficiency at 4/4 Load: 90.3 “ 91 %
- Efficiency at 3/4 Load: 91.1 %
- Efficiency at 2/4 Load: 90.3 %
- Insulation Class: Cl 155
- Protection Class: IP55
- Duty: S1 (Continuous Duty)
- Ambient Temperature (Tamb): 40 °C
- Standard: IEC 60034
Recommended for high-pressure water supply systems, industrial boosting stations, and demanding hydraulic installations requiring continuous duty performance.
