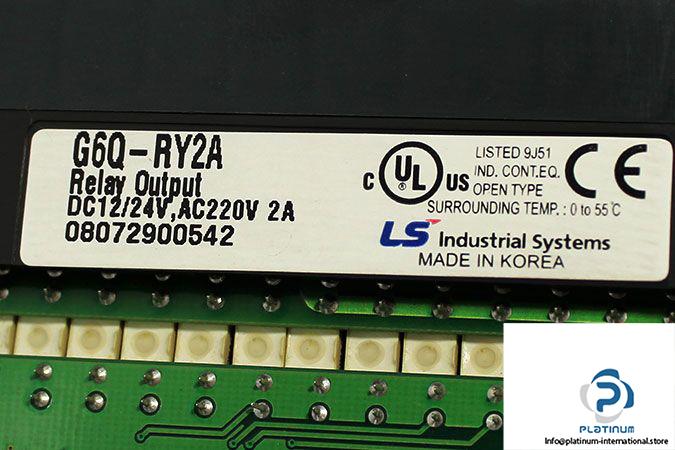

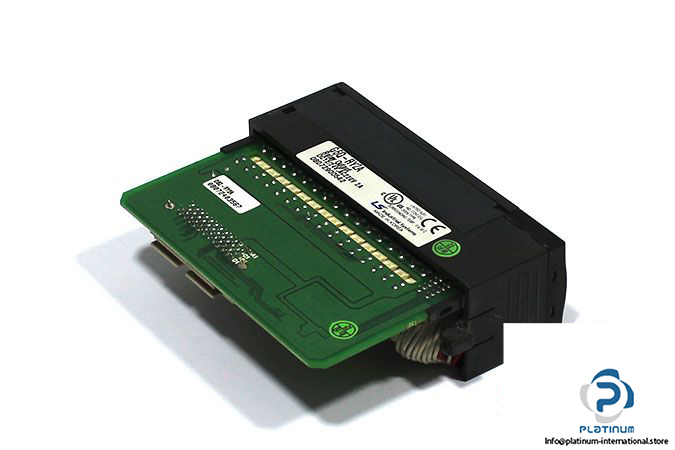

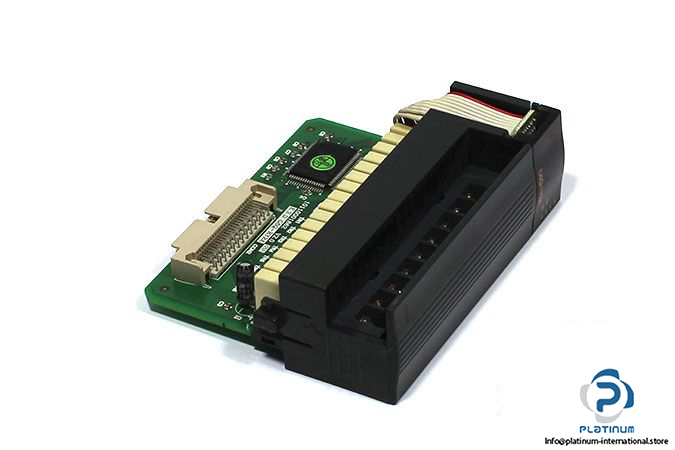

LS G6Q-RY2A Relay Output Module

Manufacturer: LS

Type: Relay Output Module

Model: G6Q-RY2A

Rated Load Voltage: 12/24 VDC / 220 V AC

Rated Load Current: 2 A

Internal Current Consumption: 480 mA

No of Output Points: 16 Points

Response Time On: 10 ms or less

Response Time Off: 5 ms or less

Common Terminal: 8 points

Operating Indicator: LED Turns on at ON State of Output

Dimensions: 110 x 89 x 35 mm

Weight: 0.19 kg
