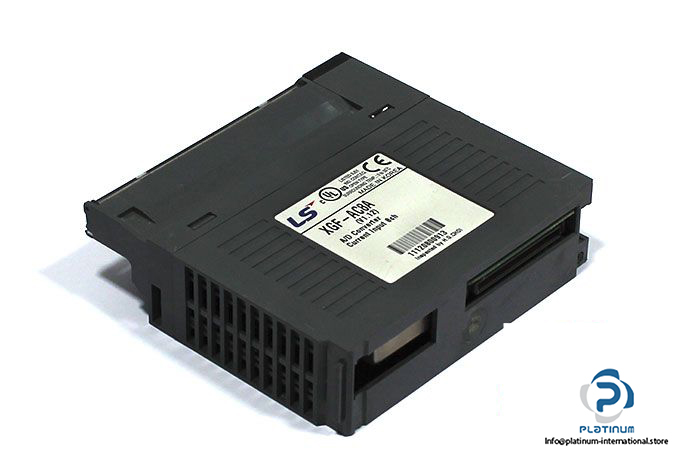

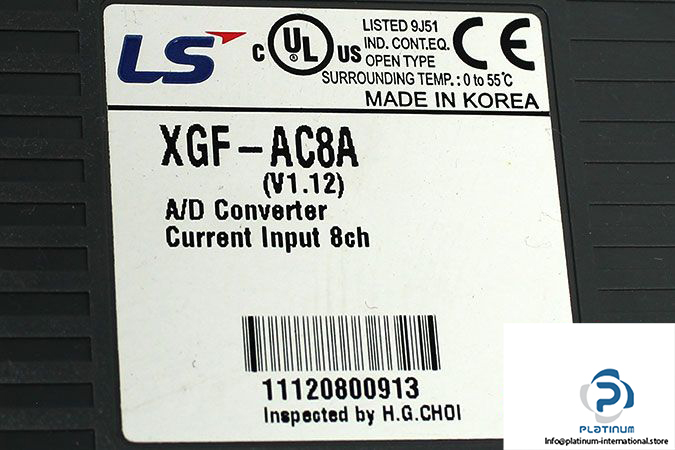

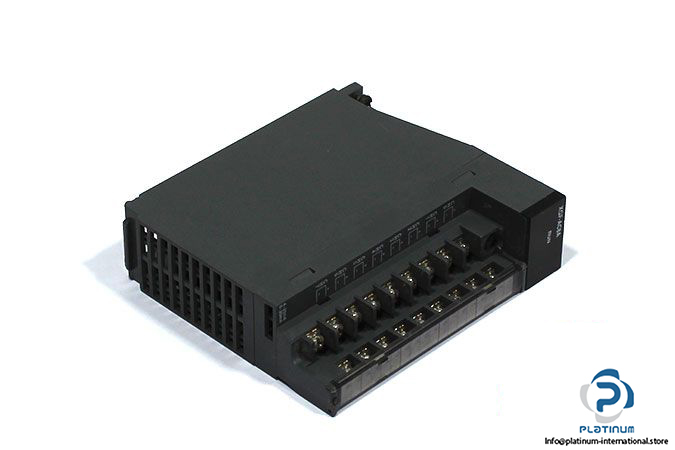

LS XGF-AC8A A/D Converter Module

Manufacturer: LS

Type: A/D Converter Module

Model: XGF-AC8A

Internal-Consumed Current: DC 5 V: 420 mA

Input Resistance: 250 Ω

Input Current: 4…20 mA

Insulation Method: Photo-Coupler Insulation Between Input Terminal and PLC Power

I/O Points Occupied: Fixed Type: 64 Points, Changeable Type: 16 Points

Analog Input Point: 8 channels/1 module

Maximum Conversion Speed: 250 μs/channel

Connected Terminal: 18-Point Terminal

Dimensions: 90 x 89 x 26 mm

Weight: 0.13 kg
