LTi DRIVES FRPK 21/0070-20 BD 1 SERVOMOTOR
Used
In stock1 unitReady to ship
SERVOMOTOR
LTi DRIVES FRPK 21/0070-20 BD 1 servomotor delivers 6.7 Nm torque at 2000 RPM with an IP65 protection class, ideal for precision automation and high-end industrial motion control systems.1200020V21/0070-20AutomationBDDrivesEncoderFrpkHighIndustrialIP65LTiMotionmotorPrecisionrpmServoServomotorTorquevoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
LTi DRIVES FRPK 21/0070-20 BD 1 SERVOMOTOR

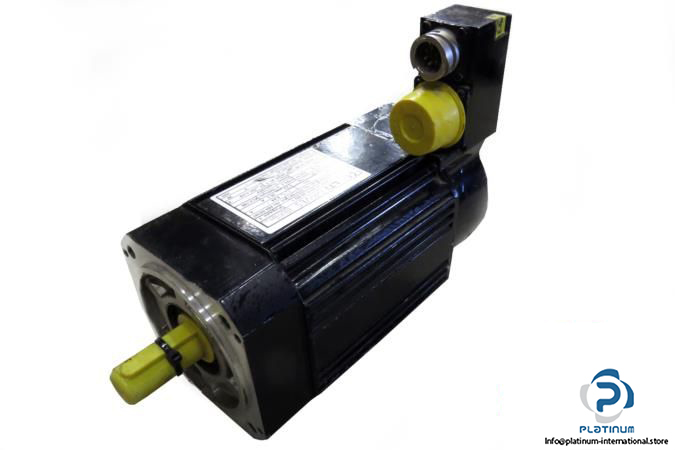

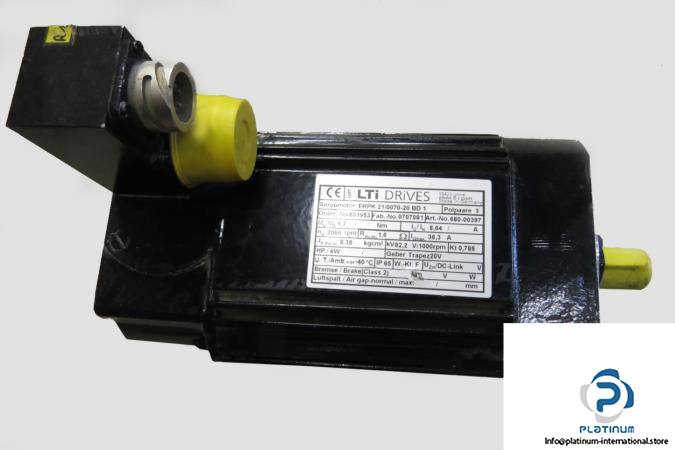

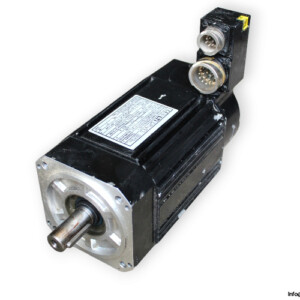

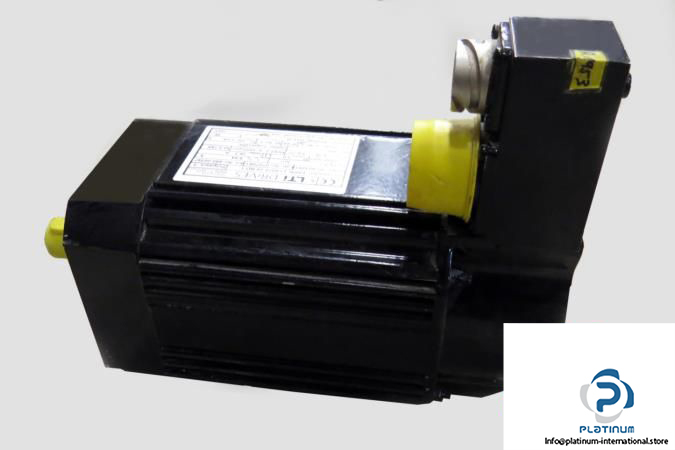

The LTi DRIVES FRPK 21/0070-20 BD 1 servomotor is engineered for high-performance automation, offering precise torque control and reliability in demanding environments. With a robust IP65 protection class and integrated class 2 brake, it supports a wide range of industrial applications with exceptional responsiveness and thermal stability.

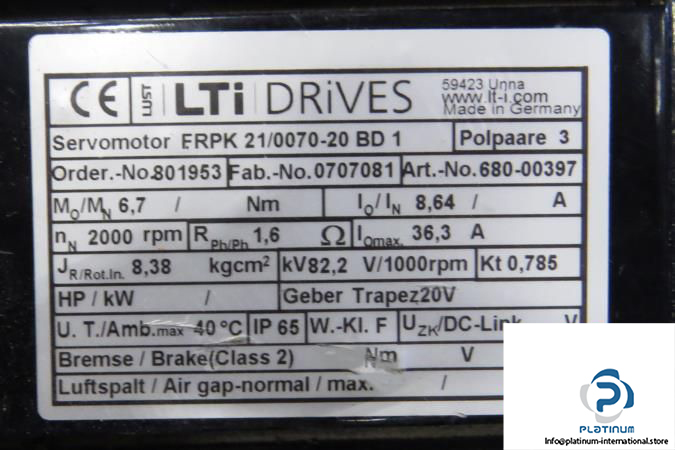

Manufacturer: LTi DRIVES
Type: Servomotor
Model: FRPK 21/0070-20 BD 1
Art No.: 680-00397
Ref No.: 0707081
| Torques (M0) | 6.7 Nm |
| Resistance | 1.6 ohm |
| Rated Current (IN) | 8.64 A |
| Rated Current (Max) | 36.3 A |
| Speed n(N) | 2000 RPM |
| Moment of Inertia of Rotor (J) | 8.38 kgcm² |
| Voltage Constant | 82.2 V/1000RPM |
| Temperature Constant | 0.785 |
| Protection Class | IP65 |
| Max Ambient Temperature | 40 °C |
| Brake | Class 2 |
| Encoder Voltage | 20 V |
