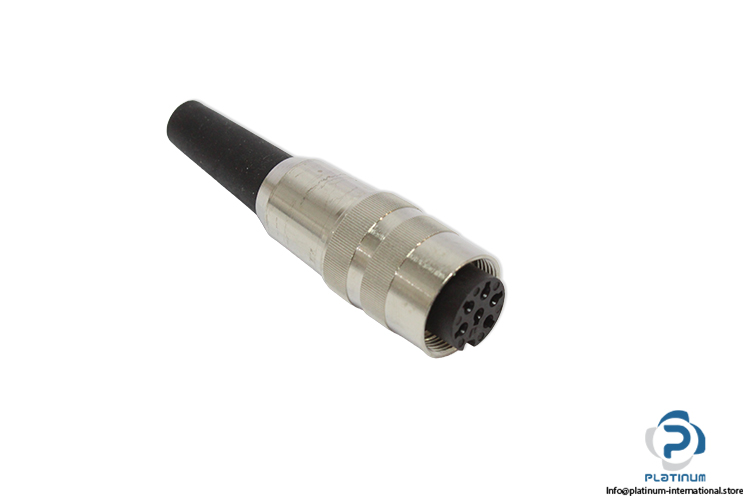

Lumberg KV 60 Circular Connector
New
In stock50 unitsReady to ship
Circular Connector
LUMBERG KV60 6-pole circular connector with -40 °C to +85 °C temperature range, durable metal housing, and reliable 5 A rated current for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 304020 |
| Code | 19756 |
| Connection | 6 Pole |
| Temperature Range | -40 °C / +85 °C |
| Material Insulating Body | PA GF, V-0 according to UL94 |
| Material Contact Bush | CuZn, Silver-Plated and Passivated (3-8 Poles), CuZn Pre-Nickel and Gold-Plated (12 Poles) |
| Material Sleeve | PC, HB according to UL94 |
| Material Strain Relief | Steel, Nickel-Plated |
| Material Housing | CuZn, Nickel-Plated |
| Material Knurled Nut | CuZn, Nickel-Plated |
| Material Bend Protection Sleeve | TPE |
| Material Screw | Steel, Nickel-Plated |
| Rated Voltage with Pollution Degree 1 | 300 V (Versions 30, 40, 50/6, 60, 70), 100 V (Versions 50, 71, 80, 81), 160 V (Polbild 120) |
| Rated Voltage with Pollution Degree 2 | 250 V (Versions 30, 40), 32 V (Versions 50, 71, 80, 81), 160 V (Versions 50/6, 60, 70, 120) |
| Contact Resistance | 5 mOhm |
| Rated Current | 5 A (Tamb 40 °C, 3-8 Poles), 3 A (Tamb 40 °C, 12 Poles) |
| Condition | New |
| Stock Key | JO-004 |
