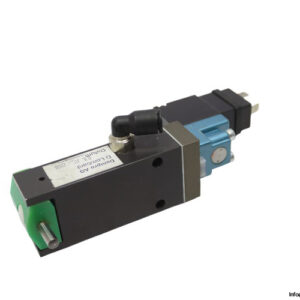

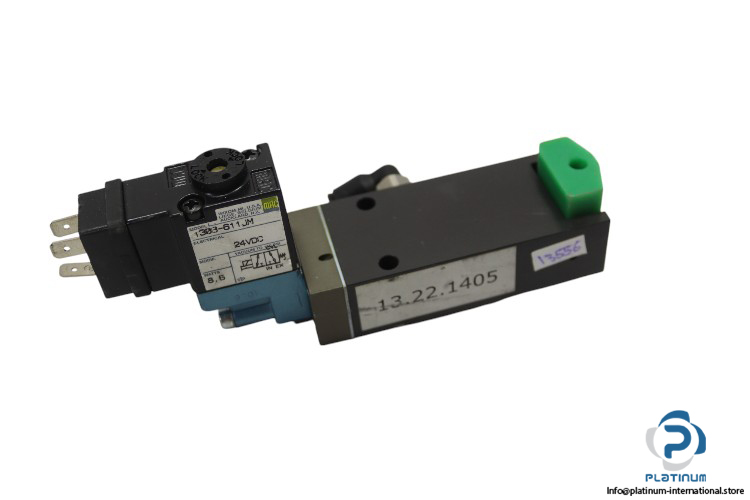

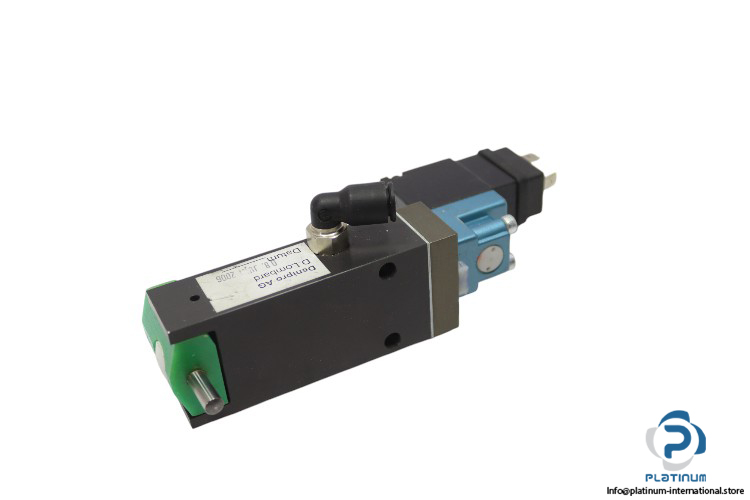

MAC 130B-611JM Pneumatic Valve With 13.22.1405 Base
New
In stock4 unitsReady to ship
Pneumatic Valve
The MAC 130B-611 JM Pneumatic Valve offers a 3/2-way Normally Open or Normally Closed configuration, with a Cv 0.14 flow rating and 24 Vdc control voltage, making it ideal for industrial pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

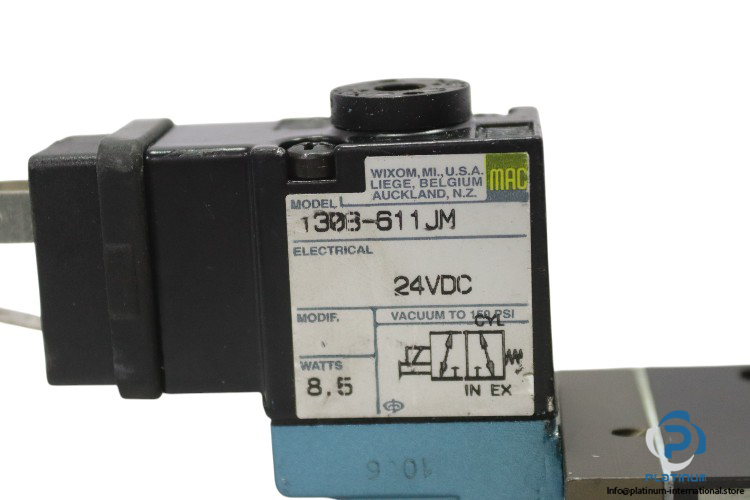

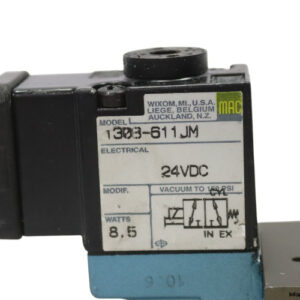

MAC 130B-611 JM Pneumatic Valve
The MAC 130B-611 JM Pneumatic Valve from the 100 series is a high-performance valve designed for electrically actuated systems. With a Cv value of 0.14, it ensures precise control in pneumatic applications. Its 3/2-way valve function, available in Normally Open (NO) or Normally Closed (NC), offers flexibility in a range of industrial settings.
Manufacturer: MAC
Type: Pneumatic Valve
Series: 100
Model: 130B-611 JM
Technical Data:
- Main Function: Valve (Electrically actuated)
- Functions: Single direct solenoid poppet valve (Cv 0.14)
- Valve Function: 3/2-way Normally Open (NO) or Normally Closed (NC)
- Flow: Cv 0.14
- Pressure: Vacuum +150 psi pressure range
- Connection Type: Rectangular male plug-in DIN 43650 connector
- Control Voltage (DC): 24 Vdc
- Mounting Mode: Valve-less base
- Ambient Air Temperature for Operation: -18°C to +60°C
- Power Consumption: 8.5 W
- Connection: 8 mm

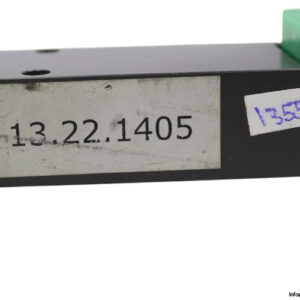

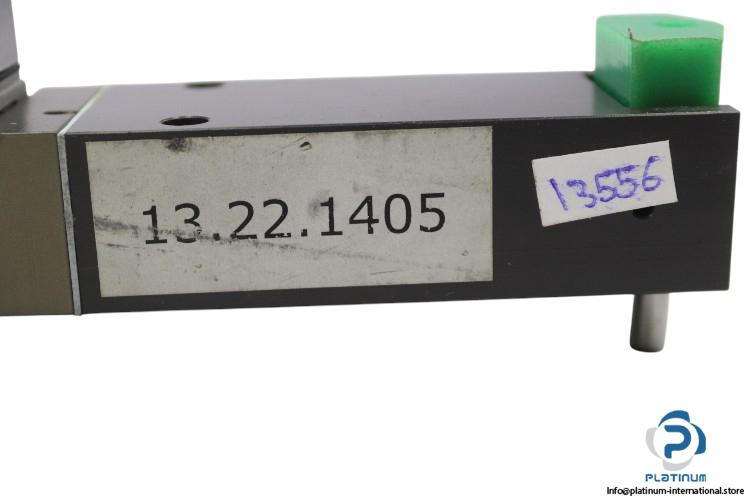

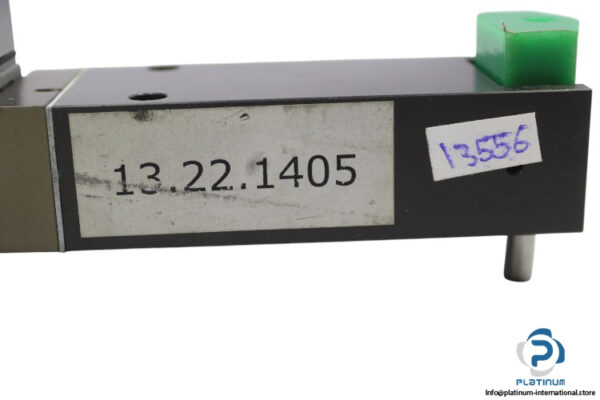

Attached with: 13.22.1405 BASE
Base Type: BASE
Base Model: 13.22.1405
