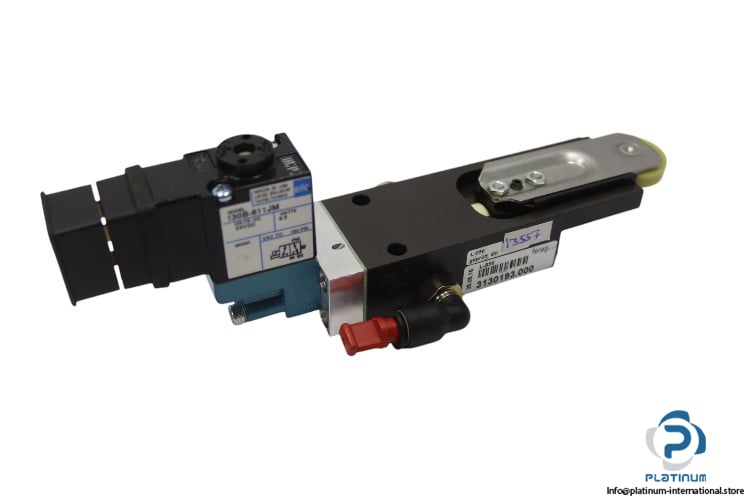

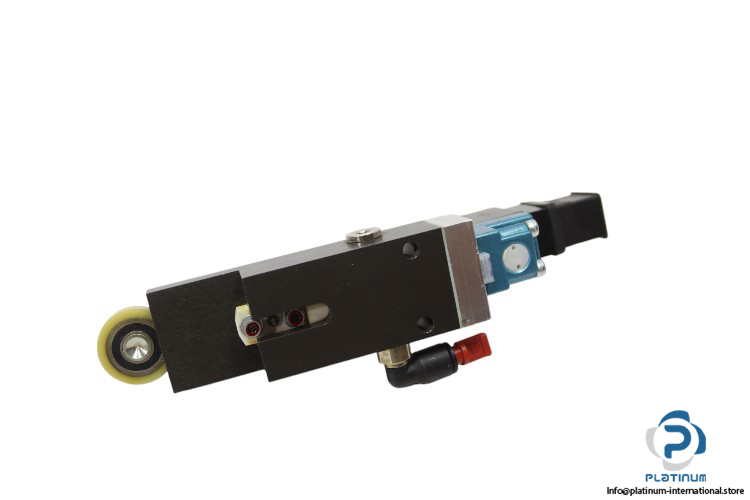

MAC 130B-611JM Pneumatic Valve With 3130193.000 Base

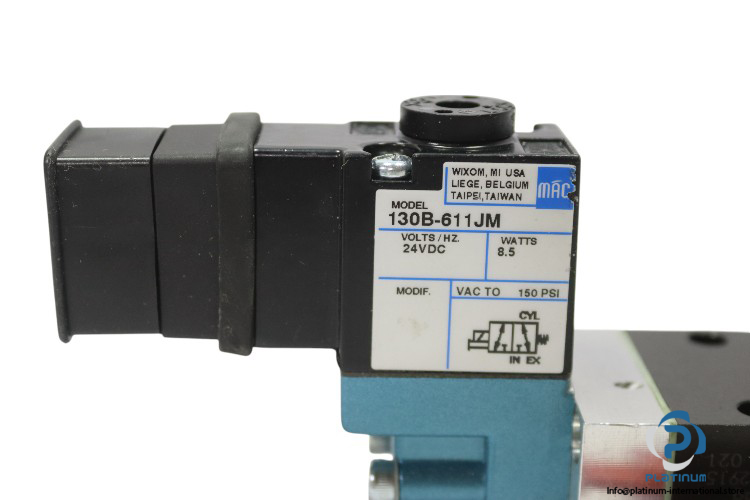

MAC 130B-611 JM Pneumatic Valve

The MAC 130B-611 JM is an electrically actuated pneumatic valve from the 100 series, designed for efficient control in pneumatic systems. With a 3/2-way valve function (Normally Open or Normally Closed), it provides reliable operation within a vacuum to +150 psi pressure range.

Manufacturer: MAC

Type: Pneumatic Valve

Series: 100

Model: 130B-611 JM

Technical Data:

• Main Function: Valve (Electrically actuated)
• Functions: Single direct solenoid poppet valve (Cv 0.14)
• Valve Function: 3/2-way Normally Open (NO) or Normally Closed (NC)
• Flow: Cv 0.14
• Pressure: Vacuum to +150 psi pressure range
• Connection Type: Rectangular male plug-in DIN 43650 connector
• Control Voltage (DC): 24Vdc
• Mounting Mode: Valve-less base
• Ambient Air Temperature for Operation: -18…+60 °C
• Power Consumption: 8.5 W
• Connection: 8 mm

Attached with:

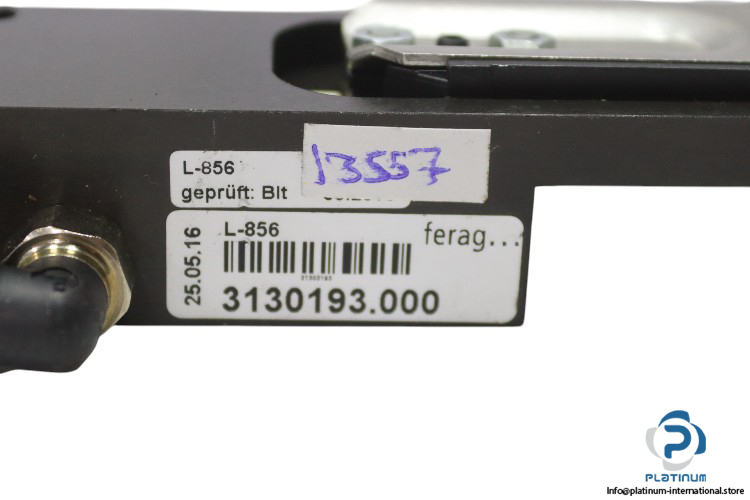

• Base Model: 3130193.000
• Base Type: BASE
• Base Ref No: L-856
