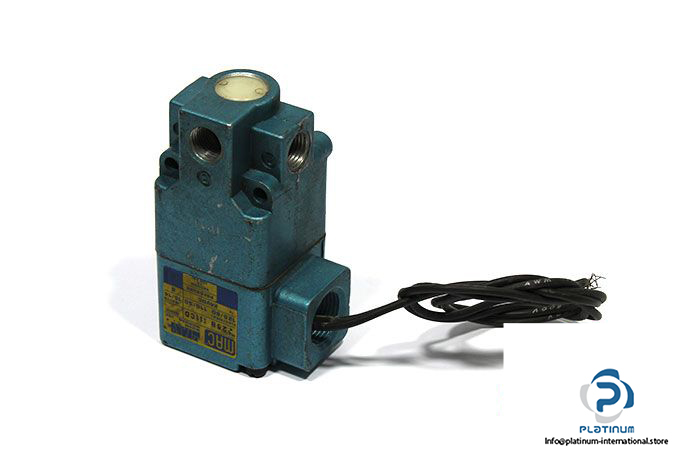

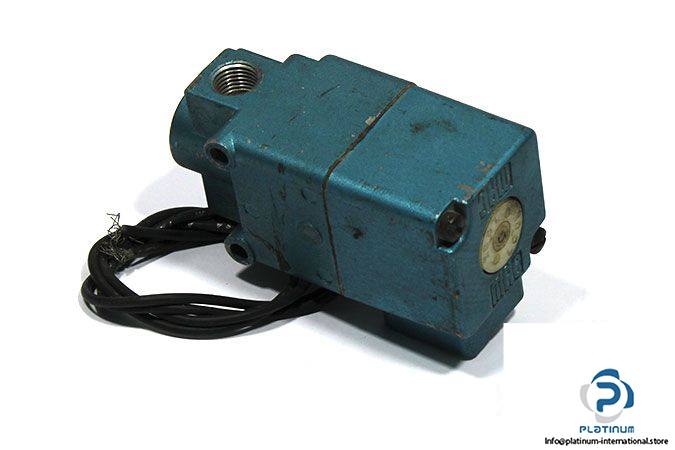

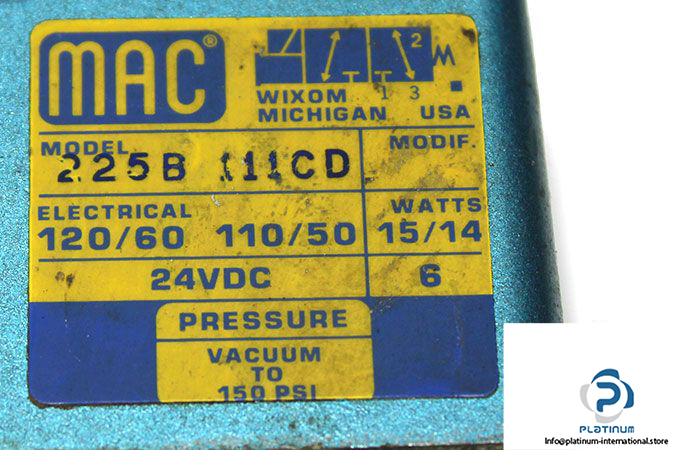

MAC 225B 111CD Single Solenoid Valve
Manufacturer: MAC
Type: Single Solenoid Valve
Model: 225B-111CD
Type of Actuation: Electrically
Pressure: Vacuum to 150 PSI (10 bar)
Fluid: Air, Vacuum, Inert Gases
Voltage
- AC
- 50 Hz: 110 V
- 60 Hz: 120 V
- DC: 24 VDC
Power
- AC
- 50 Hz: 14 W
- 60 Hz: 15 W
- DC: 6 W
Pneumatic Connection: G¼”
Max. Flow: 0.5 Cv
Temperature Range: -18…60 °C
Weight: 0.49 kg
