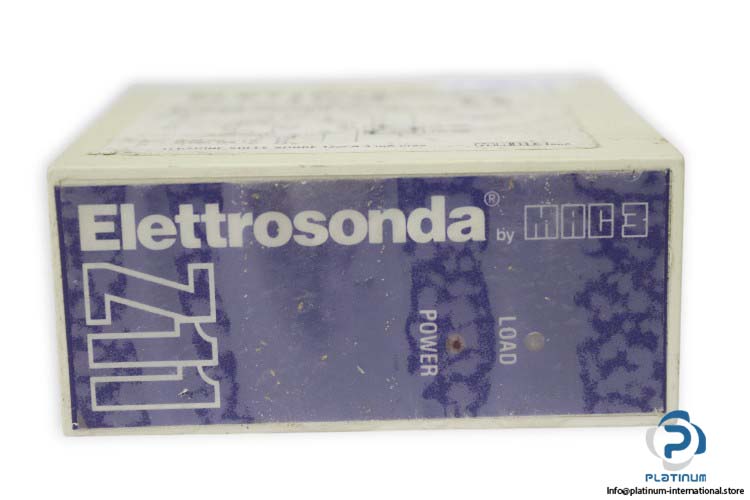

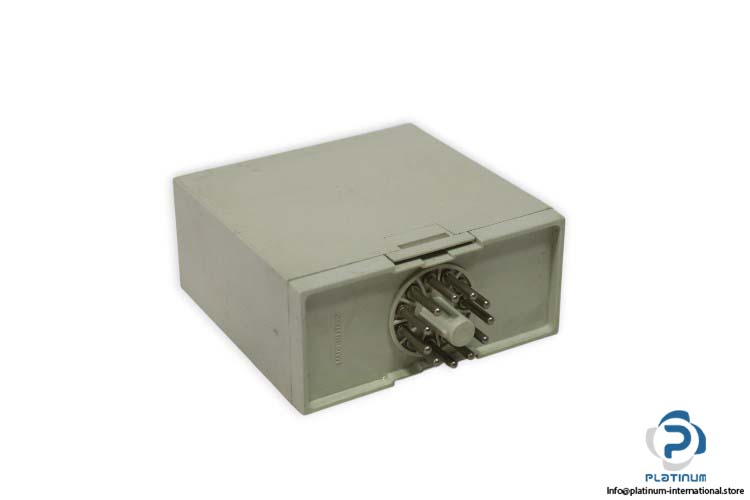

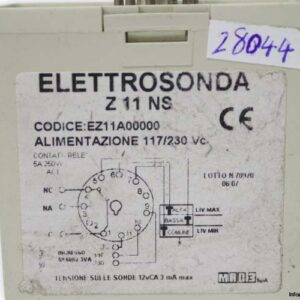

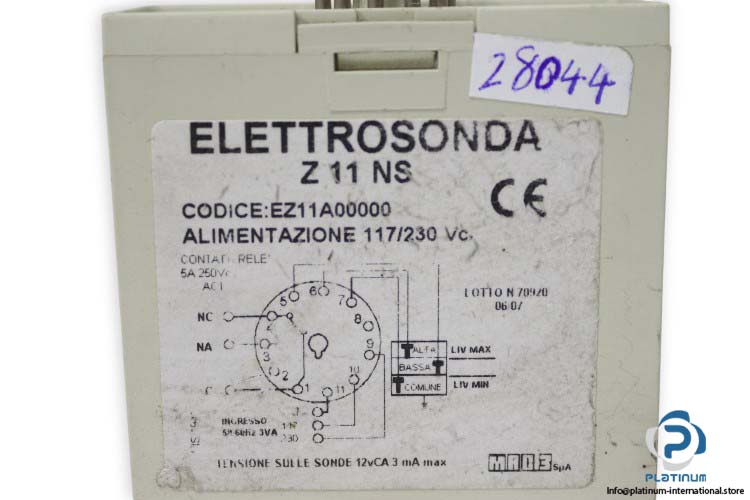

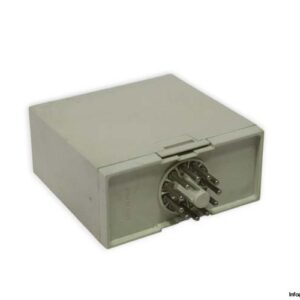

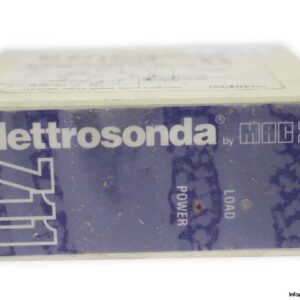

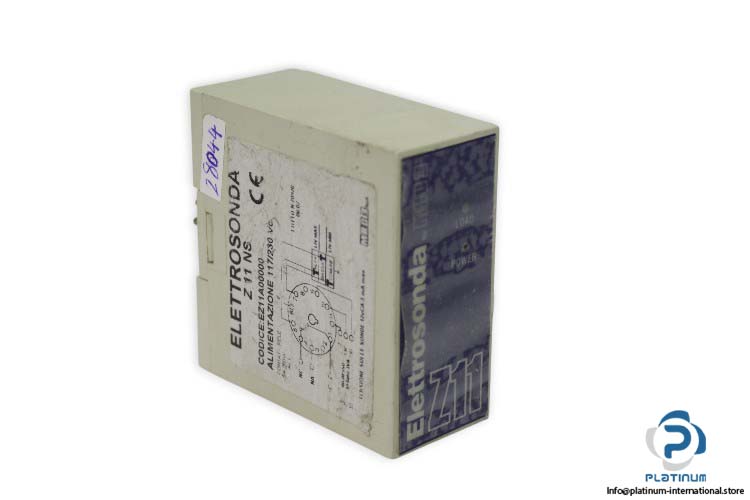

MAC3 EZ11A00000 Level Relay
Reliable and compact MAC3 liquid level relay from the ELECTROSONDA Z11 series. Ideal for controlling fluid levels in industrial and residential systems. Power supply: 117/230VAC.
Manufacturer: MAC3
Type: Liquid Level Relay
Order No.: EZ11A00000
MNR: Z11 NS
Series: ELECTROSONDA Z11
Power Supply: 117/230VAC
Electrode Voltage (Probes): 10V AC
Consumption: Max 5 VA
Relay Output Features: 250V 5(2)A
Protection Level: IP20
Operating Temperature: -10 / 50 °C
Dimensions: 79x35x88 mm
The MAC3 ELECTROSONDA Z11 is a compact and reliable liquid level relay designed for accurate monitoring and control of fluid levels in various industrial and residential applications. Equipped with high-sensitivity electrode inputs and durable relay output features, it ensures safe and efficient operation. Its IP20 protection and wide voltage range make it ideal for integration in panels and control systems where liquid level automation is critical.
