Mader PMVH-3/2-1/4 Solenoid Valve
Used
In stock1 unitReady to ship
Single Solenoid Valve
The MADER PMVH-3/2-1/4 is an electrically actuated 3 by 2 way valve with G 1/4 port, 1.5 to 10 bar pressure range, and continuous duty coil for reliable pneumatic control.1/422303ACActuatedAirbycoilComponentControlElectricalGIndustrialMaderPMVH-3/2-1/4PneumaticSinglesolenoidVValveWay
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

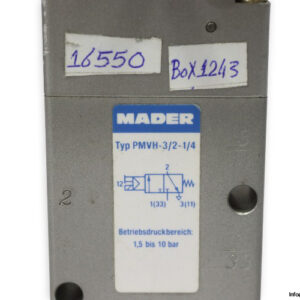

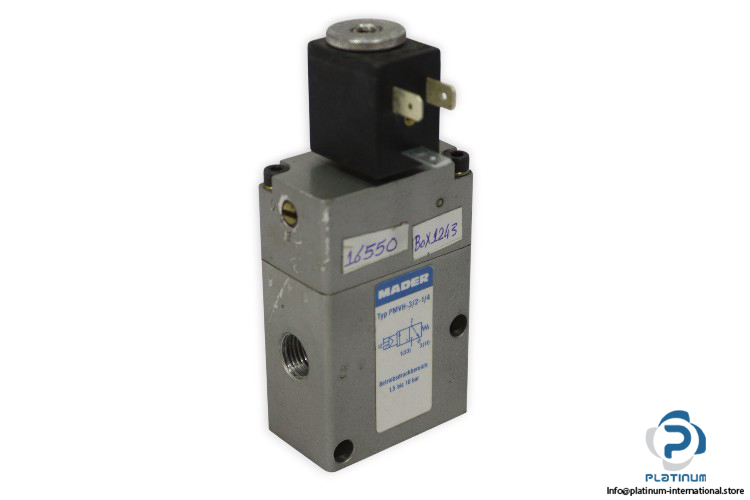

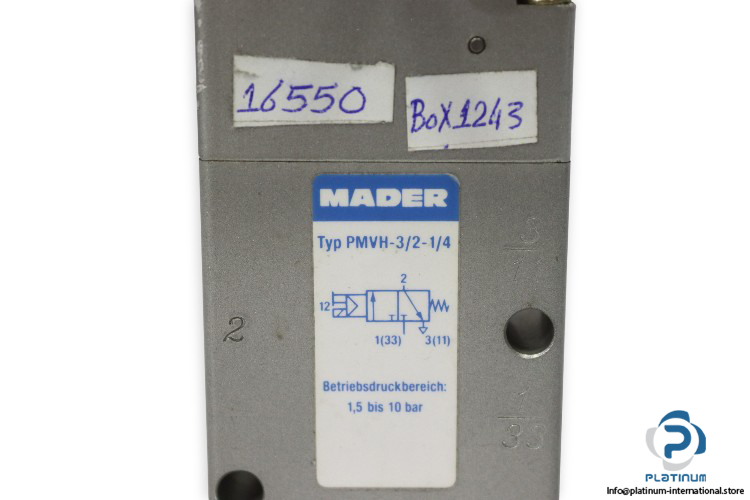

MADER PMVH-3/2-1/4 Single Solenoid Valve
The MADER PMVH-3/2-1/4 Single Solenoid Valve is a compact and efficient pneumatic valve designed for precise air control. With electrical actuation and a 3/2-way configuration, it ensures reliable switching and long-lasting performance in industrial automation systems.
Manufacturer: MADER
Type: Single Solenoid Valve
Model: PMVH-3/2-1/4
| Type of Actuator | Electrical |
| Fluid | Air |
| Function | 3 by 2 way directional control valve |
| Port Size | G 1/4 |
| Operating Pressure Range | 1.5 to 10 bar |

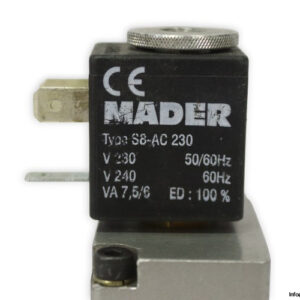

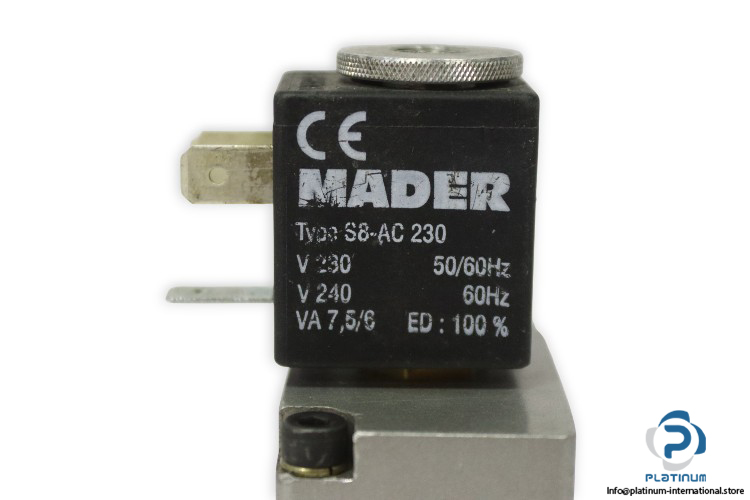

| Attached With | Coil Model S8-AC 230 |
| Coil Voltage | 230 V AC 50 or 60 Hz / 240 V AC 60 Hz |
| Power Consumption | 7.5 VA at 50 Hz / 6 VA at 60 Hz |
| Duty Cycle | 100 percent ED |
