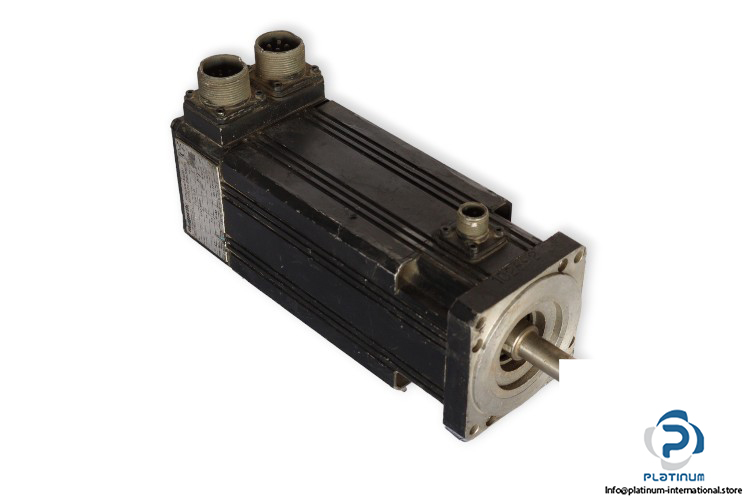

Magnetic BLQ 43 M 30 Servo Motor
In stock1 unitReady to ship
950,00$
Manufacturer: MAGNETIC Type: Servo Motors Model: BLQ 43 M 30 Serial No: 102692
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: MAGNETIC
Type: Servo Motors
Model: BLQ 43 M 30
Serial No: 102692
Stall Current In: 2.5 Arms
Max Current IP: 1.8 Arms
Voltage BEMF: 57 V/krpm
Speed: 3000 rpm
High Inertia: 2 Kgcm2
Stall torque Tn: 1.8 Nm
Max torque Tp: 5.4 Nm
Bemf: 47 V/Krpm
Braking Voltage: 24 VDC
Braking torque: 2.5 Nm
Nominal current: 0.46 ADC
Max. Temperature: 40°C
Protection Class: IP 54
Resolver: A2PA
Insulation Class: F
Number OF Poles: 6
