Magtrol LE 212/S004 Load Measuring PIN
New
In stock1 unitReady to ship
Load Measuring Pin
MAGTROL load measuring pin with 10 kN nominal load, full-bridge strain gauge technology, 4“20 mA output, and stainless-steel construction for industrial force measurement applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

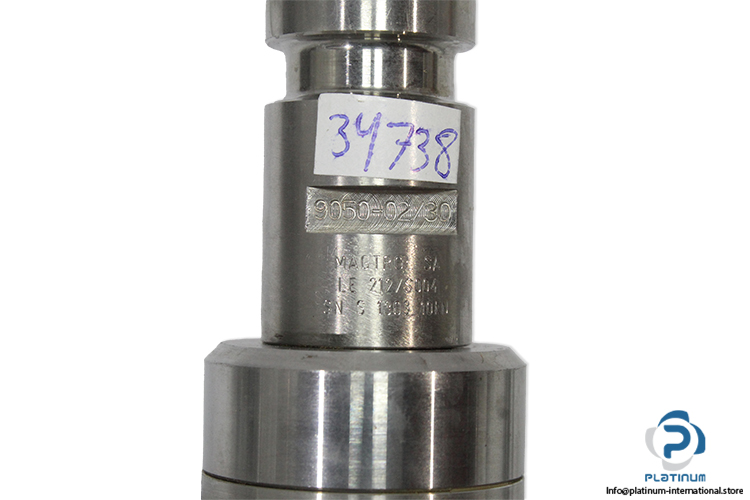

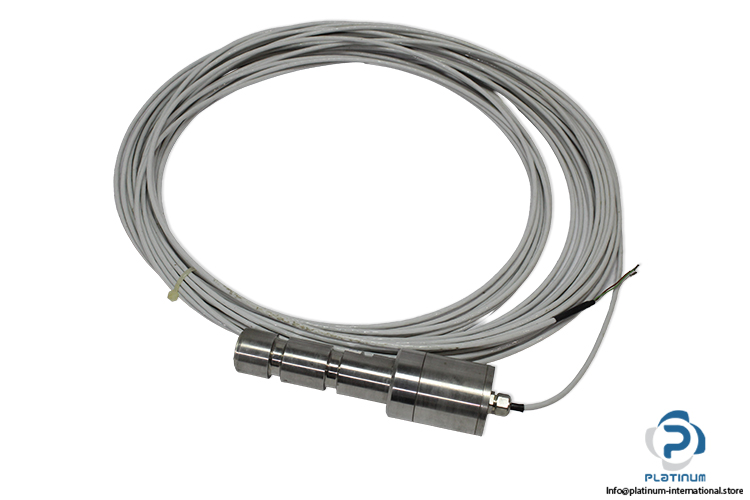

MAGTROL LE 212/S004 Load Measuring Pin
The MAGTROL LE212/S004 load measuring pin is a precision force measurement device designed for direct load monitoring in industrial applications. Utilizing full-bridge strain gauge technology, it provides accurate and reliable load measurement while maintaining robust mechanical strength and environmental protection.
Manufacturer: MAGTROL
Type: Load Measuring Pin
Model: LE 212/S004
Part No.: 9050-02/30
| Series | LE |
| Nominal Load | 10 kN |
| Technology | Full-Bridge Strain Gauge |
| Strain Gauge Bridge Impedance | 5000 ohm |
| Supply Voltage | 12 ... 32 V DC |
| Output Signal | 4 ... 20 mA (Max. 3.5 ... 25 mA), 2-Wires |
| Rated Power | 30 W |
| Material | Stainless Steel 1.4057 |
| Protection Class | IP66 |
| Operating Temperature | -25 ... 80 °C |
| Length, Diameter | 136 mm, 25 h6 mm |
