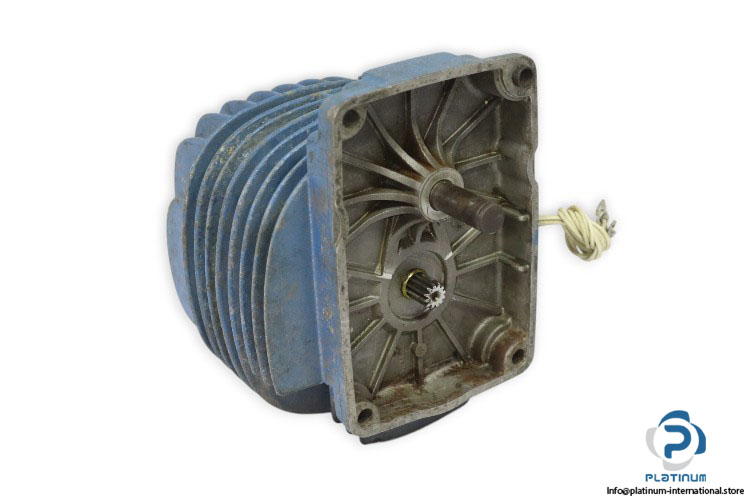

Mannesmann Demag 13/3 PF 8 Brake Motor
Brake Motor
Three-phase brake motor with 0.05 kW power, 220/230 V Δ or 380/400 V Y, and 710 rpm speed. Designed for cranes, hoists, conveyors, and automation systems requiring precise braking and high reliability.Mannesmann Demag 13/3PF8 3-Phase Brake Motor
The Mannesmann Demag 13/3PF8 is a compact and efficient 3-phase brake motor engineered for reliable performance and precise control in demanding industrial applications. With its robust construction, integrated brake system, and excellent thermal efficiency, this motor ensures dependable operation and long service life. Ideal for use in cranes, hoists, conveyors, and automation systems where controlled stopping and holding torque are essential.
Manufacturer: Mannesmann Demag
Type: 3-phase Brake Motor
Model: 13/3PF8
Motor No.: 62909828
This motor offers high braking precision, stable torque output, and energy-efficient operation, making it ideal for mechanical lifting and controlled motion environments. Its durable build and superior insulation provide long-lasting reliability even under frequent start-stop cycles.

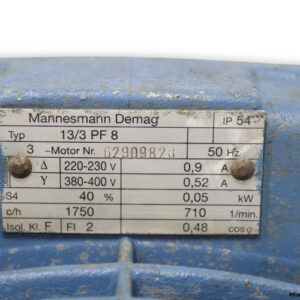

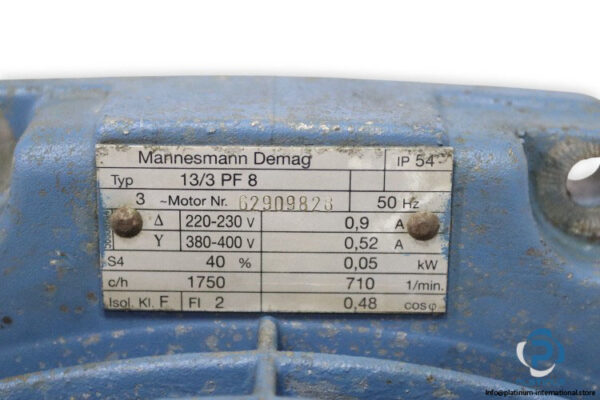

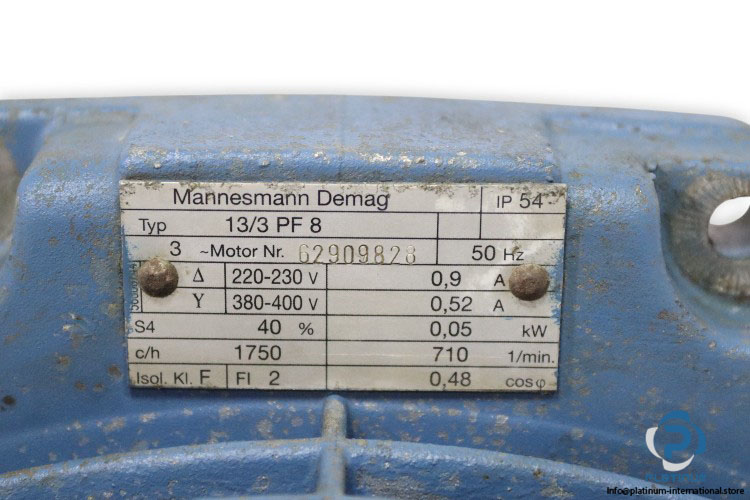

| Power | 0.05 kW |
| Voltage (Δ) | 220 to 230 V |
| Voltage (Y) | 380 to 400 V |
| Current (Δ) | 0.9 A |
| Current (Y) | 0.52 A |
| Frequency | 50 Hz |
| Speed | 1750 c/h , 710 rpm |
| Duty Cycle | S4 , 40% |
| Insulation Class | F |
| Thermal Class | FI 2 |
| Power Factor (cos φ) | 0.48 |
| Mounting Type | Standard flange mount |
| Application | Cranes, hoists, gearboxes, automation systems, and conveyors |
