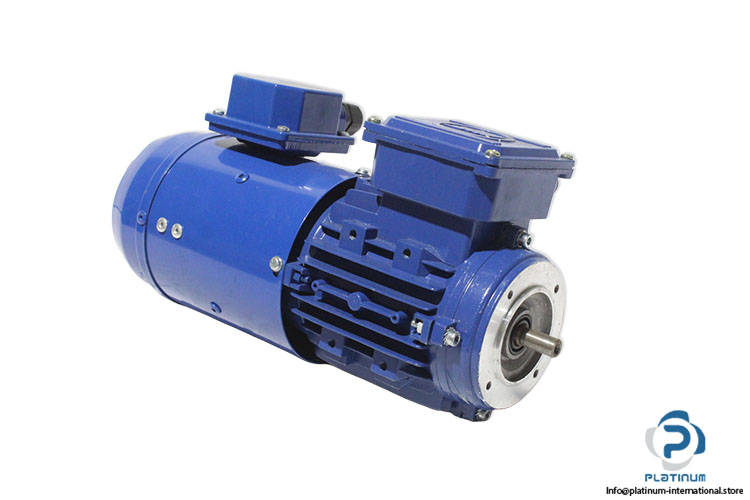

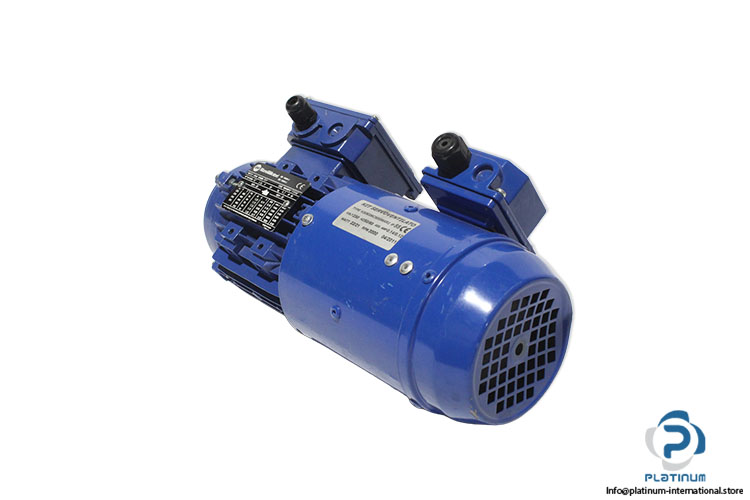

Marellimotori MAA 63MB4 B14 3 Phase Electric Motor
New
In stock1 unitReady to ship
499,99$
The MARELLIMOTORI MAA 63MB4 B14 is a high-performance 3 phase electric motor designed for industrial automation, machinery, and precision drive applications. Featuring S1 continuous duty, Class F insulation, IP55 protection, multi-frequency compatibility, and supplied with a KS063MCM55MAR2 servo fan kit for enhanced cooling performance.
Duty:
S1 Continuous Duty
Insulation Class:
F
Protection Class:
IP55
50 Hz Output:
0.18 kW
60 Hz Output:
0.20 kW
Rated Speed:
Up To 1620 RPM
Connection:
Terminal Box
Cooling:
KS063MCM55MAR2 Servo Fan Kit
ACAutomationB14ContinuousDriveDutyElectricFanIEIndustrialIP55KitMachineryMarellimotorimotorMotorsPhaseSenServothree
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

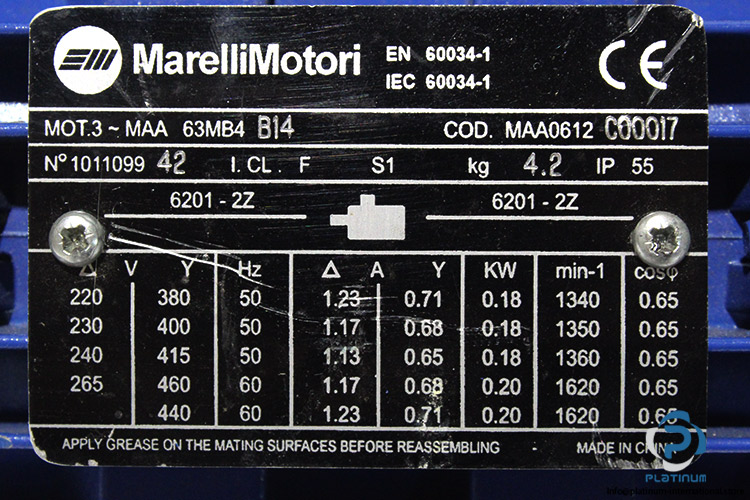

| Code | MAA0612 C00017 |
| Ref No | 1011099 42 |
| Rated Voltage at 50 Hz, Delta | 220/230 /240 V |
| Rated Current at 50 Hz, Delta | 1.23/1.17/1.13 A |
| Power Output at 50 Hz, Delta | 0.18 kW |
| Rated Speed at 50 Hz, Delta | 1350 / 1350/1360 RPM |
| Power Factor at 50 Hz, Delta | 0.65 |
| Rated Voltage at 60 Hz, Delta | 265 V |
| Rated Current at 60 Hz, Delta | 1.17 A |
| Power Output at 60 Hz, Delta | 0.20 kW |
| Rated Speed at 60 Hz, Delta | 1620 RPM |
| Power Factor at 60 Hz, Delta | 0.65 |
| Rated Voltage at 60 Hz, Star | 460 / 440 V |
| Rated Current at 60 Hz, Star | 0.68 / 0.71 A |
| Power Output at 60 Hz, Star | 0.20 kW |
| Rated Speed at 60 Hz, Star | 1620 RPM |
| Power Factor at 60 Hz, Star | 0.65 |
| Duty | S1 |
| Insulation class | F |
| Protection Class | IP55 |
| Standard | EN 60034-1/CE/ IEC 60034-1 |

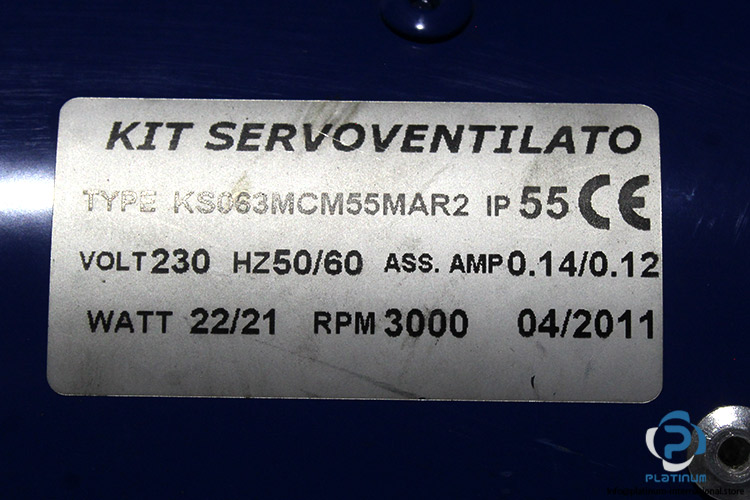

| Attached with | KS063MCM55MAR2 Servo Fan Kit |
| Voltage | 230V AC |
| Frequency | 50/60 Hz |
| Current | 0.14 Amps at 50Hz and 0.12 Amps at 60Hz |
| Power Consumption | 22 Watts at 50Hz and 21 Watts at 60Hz |
| Rotational Speed | 3000 RPM |
| Protection class,Fan | IP55 |
| Connection | terminal box |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099002 |
| Weight | 6,5 |
