Martonair M/546A/50 ISO Cylinder
New
Available on request
99,99$
ISO Cylinder
MARTONAIR M/546A/50 ISO Cylinder is designed for high-precision pneumatic applications. With a 32 mm bore and 50 mm stroke, this single-acting actuator ensures smooth motion control and reliability. It features a G 1/8 pneumatic connection, square frame design, and a male piston rod end for optimal integration into industrial systems.1/832mm50mmActuatorAirAutomationboreCompressedconnectionControlCylinderEndGhigh-precisionIndustrialISOM/546A/50maleMartonairMotionPneumaticRODShapeSingle-ActingSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

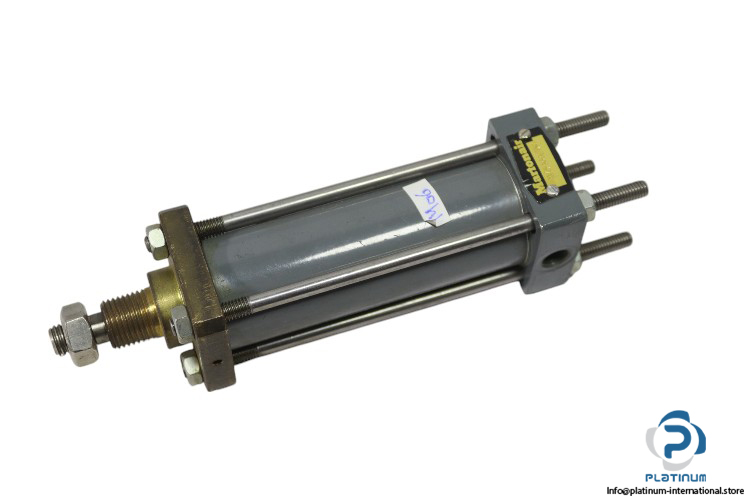

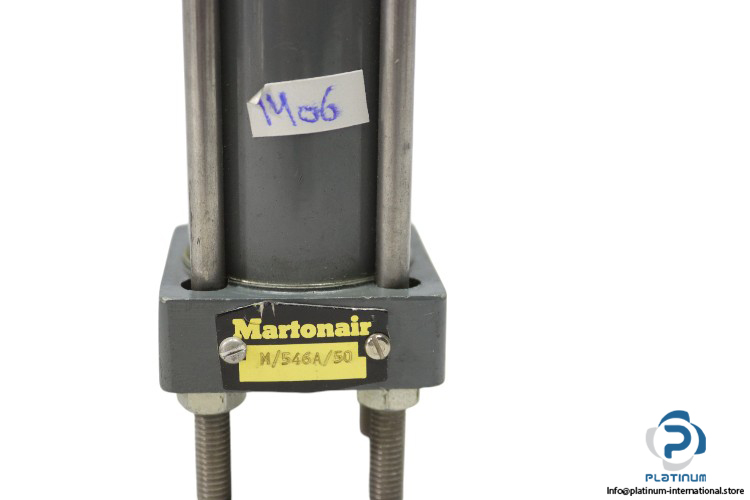

MARTONAIR M/546A/50 ISO Cylinder
The MARTONAIR M/546A/50 ISO Cylinder is a high-performance pneumatic actuator designed for industrial applications requiring precision, reliability, and efficient motion control. Built for durability, this single-acting cylinder operates with compressed air, ensuring smooth and controlled movement.
Manufacturer: MARTONAIR
Type: ISO Cylinder
Model: M/546A/50
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke | 50 mm |
| Bore x Stroke | 32 x 50 mm |
| Rod Diameter | 10 mm |
| Frame Dimensions | 44 x 145 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max. | 10 bar |
| Operation Mode | Single |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
