Martonair RM/547 70 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Martonair RM/547 70 ISO Cylinder is a square-profile pneumatic actuator with a 2.5 inch bore, 70 mm stroke, and G 3/8 connection, ideal for double-acting motion control systems.102.53/870ActingActuatorAirAutomationbarboreCompressedconnectionControlCylinderDoubleGinchIndustrialISOMartonairmmMotionPneumaticPressureRM/547ShapeSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

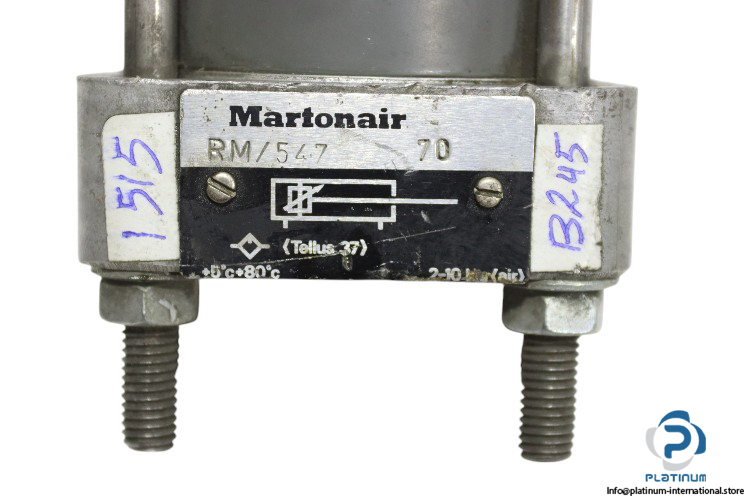

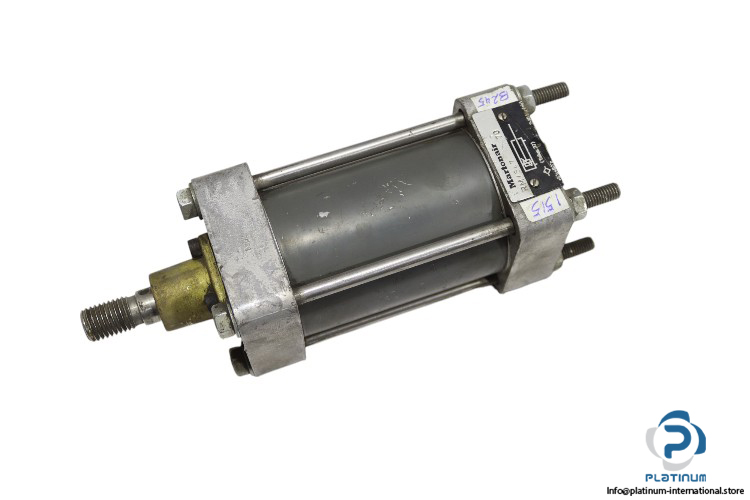

Martonair RM/547 70 ISO Cylinder
The Martonair RM547 70 ISO Cylinder is a robust pneumatic actuator designed for reliable performance in industrial applications. With a square body shape, male piston rod end, and double operation mode, it provides efficient and consistent motion control using compressed air.
Manufacturer: MARTONAIR
Type: ISO Cylinder
Model: RM/547 70
| Media | Compressed Air |
| Bore Diameter | 2.5 Inch |
| Stroke | 70 mm |
| Bore x Stroke | 2.5 Inch x 70 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 75 x 175 mm |
| Pneumatic Connection | G 3/8 |
| Pressure | 2 / 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
