Martonair RM/8100 B ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Martonair Norgren RM/8100 B ISO Cylinder delivers precise and powerful pneumatic performance with a 100 x 500 mm bore and stroke, 16 bar max pressure, and a durable square profile.1/21001626500ActingActuatorAirAutomationBbarboreCompressedconnectionCylinderdiameterDoubleGIndustrialISOMartonairmmNorgrenPneumaticPressureRM/8100RODShapeSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

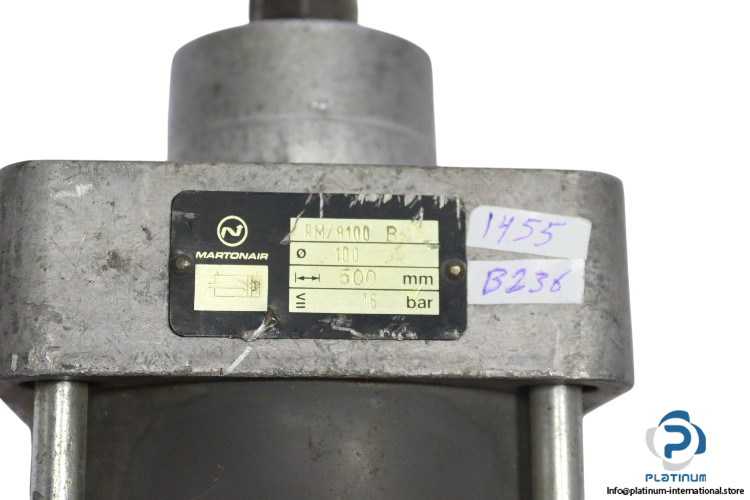

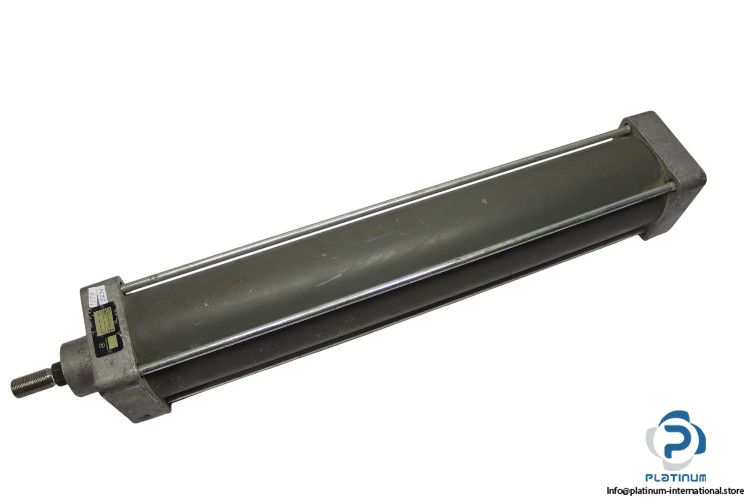

Martonair Norgren RM/8100 B ISO Cylinder
The Martonair Norgren RM8100B ISO Cylinder is a high-performance pneumatic actuator designed for industrial applications requiring precise and powerful linear motion. Built with a durable square profile and engineered for double-acting operation, it handles high-pressure tasks with a maximum operating pressure of 16 bar.
Manufacturer: MARTONAIR NORGREN
Type: ISO Cylinder
Model: RM/8100 B
| Media | Compressed Air |
| Bore Diameter | 100 mm |
| Stroke | 500 mm |
| Bore x Stroke | 100 x 500 mm |
| Rod Diameter | 26 mm |
| Frame Dimensions | 113 x 680 mm |
| Pneumatic Connection | G 1/2 |
| Pressure Max. | 16 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
