Martonair SM/9175 200 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Martonair SM/9175 200 ISO Cylinder features a 1.75 Inch bore, 200 mm stroke, and a square frame. Designed for double-acting operation and industrial pneumatic systems.1.751/410200ActingActuatorAirAutomationbarboreCompressedconnectionCylinderDoubleframeGinchIndustrialISOMartonairmmPneumaticPressureSM/9175SquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

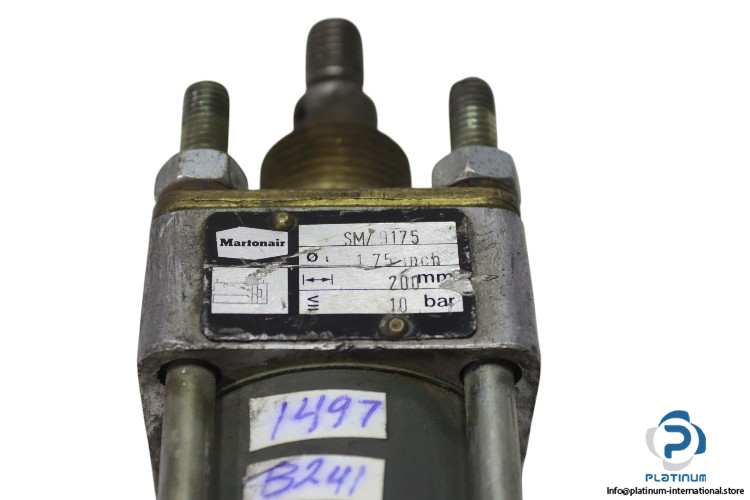

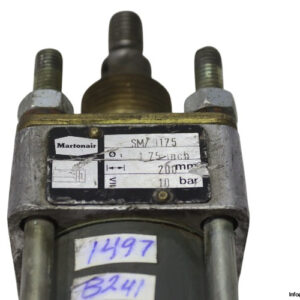

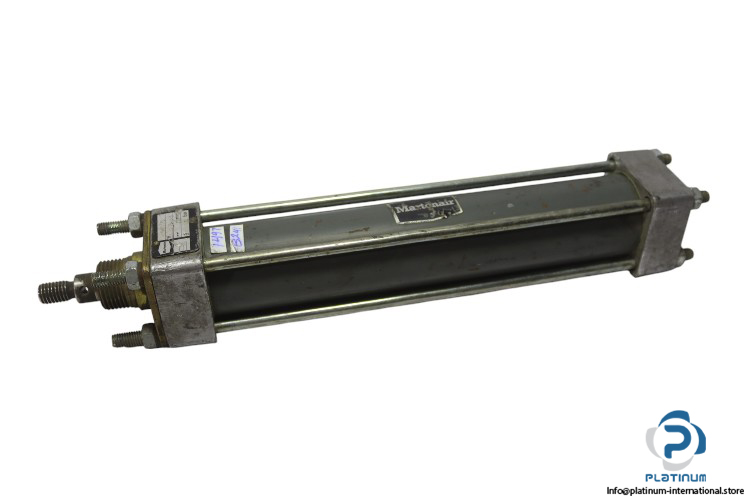

Martonair SM/9175 200 ISO Cylinder
The Martonair SM9175 200 ISO Cylinder is a precision-engineered pneumatic actuator designed for reliable linear motion. Built with a square frame and double-acting operation, it delivers consistent performance for industrial automation applications.
Manufacturer: MARTONAIR
Type: ISO Cylinder
Model: SM/9175 200
| Media | Compressed Air |
| Bore Diameter | 1.75 Inch |
| Stroke | 200 mm |
| Bore x Stroke | 1.75 Inch x 200 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 60 x 330 mm |
| Pressure Max. | 10 bar |
| Pneumatic Connection | G 1/4 |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
