Martonair SM/940 D 550 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Martonair Norgren SM/940 D 550 ISO Cylinder features a 4 Inch bore, 550 mm stroke, and square design. Ideal for high-pressure pneumatic motion applications up to 10 bar.103/84550ActingActuatorAirAutomationbarboreCompressedconnectionCylinderDDoubleGinchIndustrialISOMartonairmmNorgrenOnePneumaticRODShapesideSM/940SquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

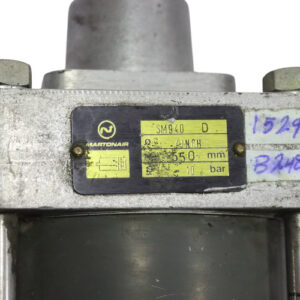

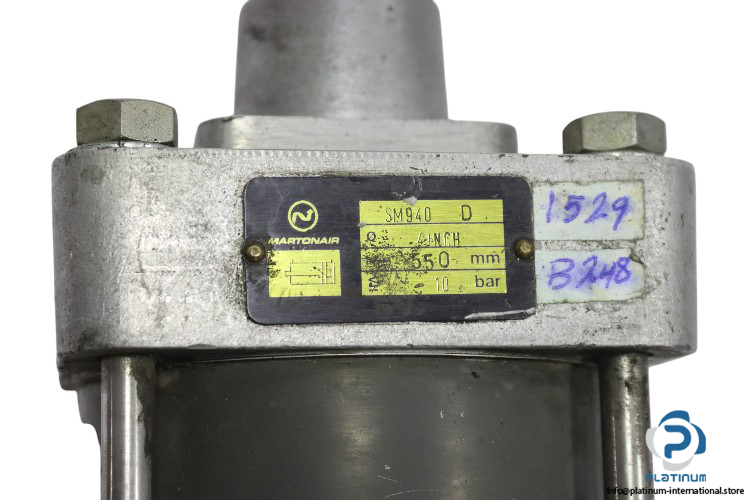

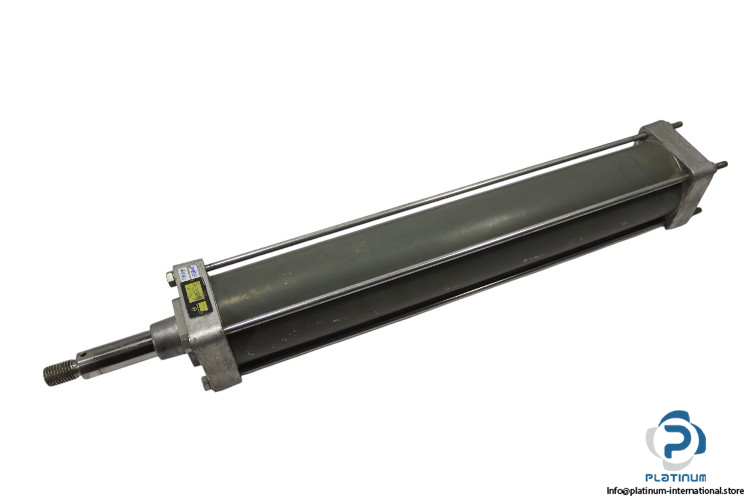

Martonair Norgren SM/940 D 550 ISO Cylinder
The Martonair Norgren SM940 D 550 ISO Cylinder is a robust pneumatic actuator engineered for high-performance applications. With a 4-inch bore, 550 mm stroke, and square body design, it delivers reliable and efficient motion control.
Manufacturer: MARTONAIR NORGREN
Type: ISO Cylinder
Model: SM/940 D 550
| Media | Compressed Air |
| Bore Diameter | 4 Inch |
| Stroke | 550 mm |
| Bore x Stroke | 4 Inch x 550 mm |
| Rod Diameter | 33 mm |
| Frame Dimensions | 115 x 720 mm |
| Pressure Max. | 10 bar |
| Pneumatic Connection | G 3/8 |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
