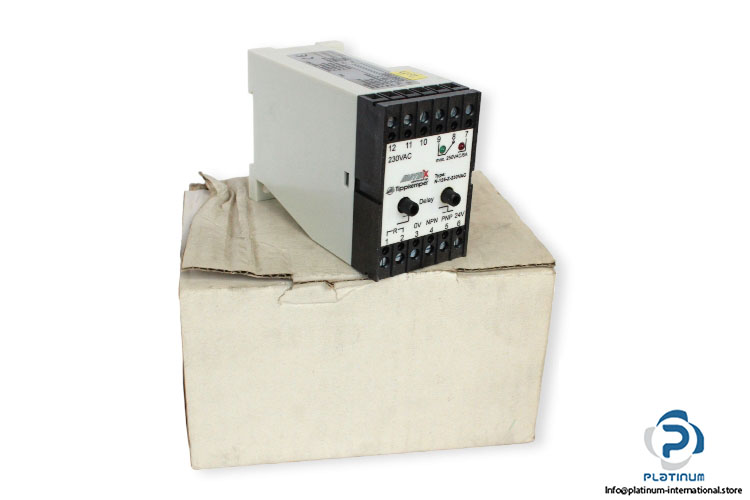

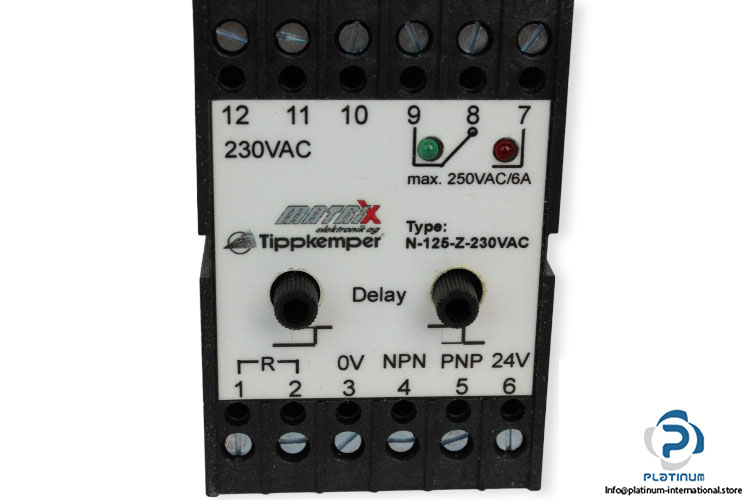

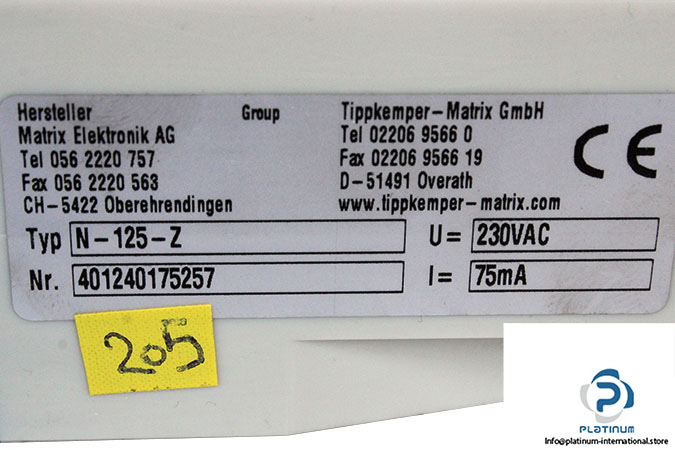

Matrix N-125-Z Switching Device

Manufacturer: Matrix, Tippkemper

Type: Switching Device

Model: N-125-Z



Supply voltage: 230 VAC +10%/-15%

Output current (max): 75 mA

Output: 1 relay changeover contact

Load capacity of the output Contact AC:  250 V AC,6 A,500 VA

Connection for sensors: 1 x proximity switch or 1 x light barrier

Output voltage for sensors: 24 V DC+-10%

Connection: PNP, NPN

LED display: Red Green

Switching frequency: max. 5 Hz

Time Delay: 0.1 … 10 s

Mounting: DIN rail

Dimension: 110 x 50 x 75 mm
