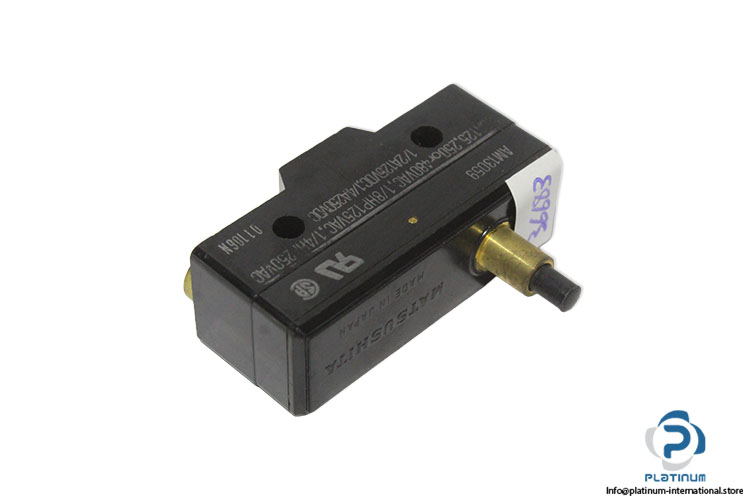

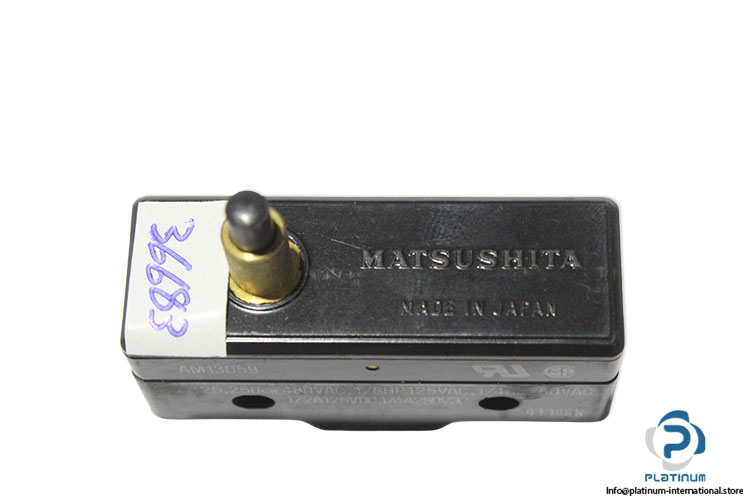

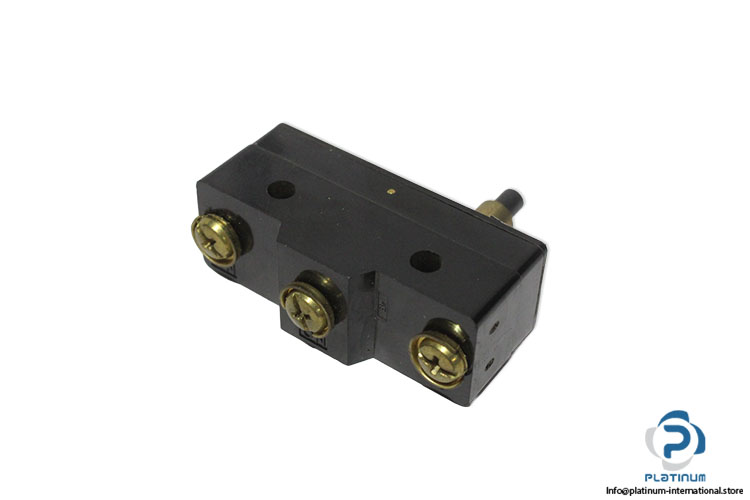

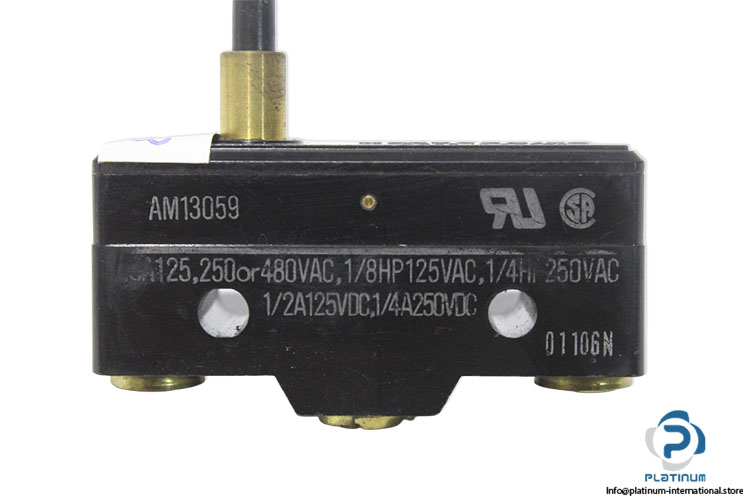

Matsushita AM13059 Plunger Basic Switch
New
In stock1 unitReady to ship
Panasonic Matsushita AM13059 Basic Switch Industrial NZ basic switch from the AM1 series featuring an overtravel plunger actuator, screw terminal connections, and reliable switching performance for automation and control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | AM1 |
| Contact arrangement | Flat, screw terminal |
| Type of switch | NZ basic (AM1) switch |
| Type of Actuators | Overtravel plunger |
| Rated Voltage | 125,250or480VAC/ 125VDC,250VDC |
| Operating force, max. | 3.63 N |
| Release force, min. | 1.12 N |
| Pretravel, max. | 0.4 mm |
| Movement differential, max. | 0.05 mm |
| Allowable operating speed (at no load) | 0.1 to 1,000 mm/sec. (at pin plunger position) |
| Max. operating cycle rate (at no load) | 240 cpm |
| Ambient temperature | –25°C to +80°C |
| Condition | New |
| SKU | 1099395 |
| Weight | 0,03 |
