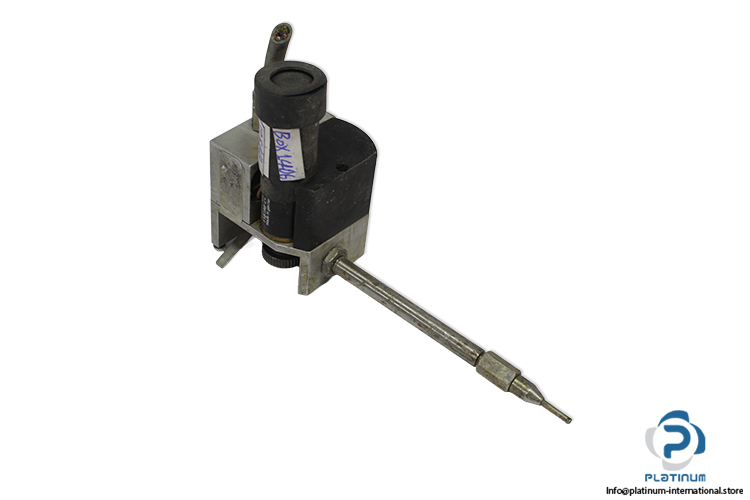

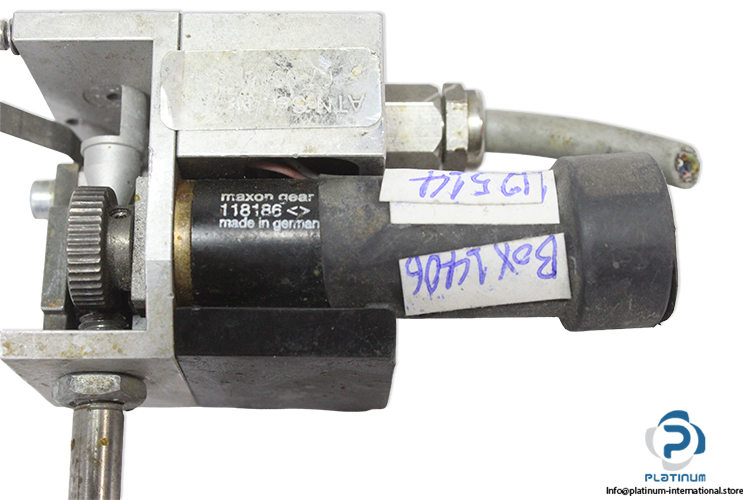

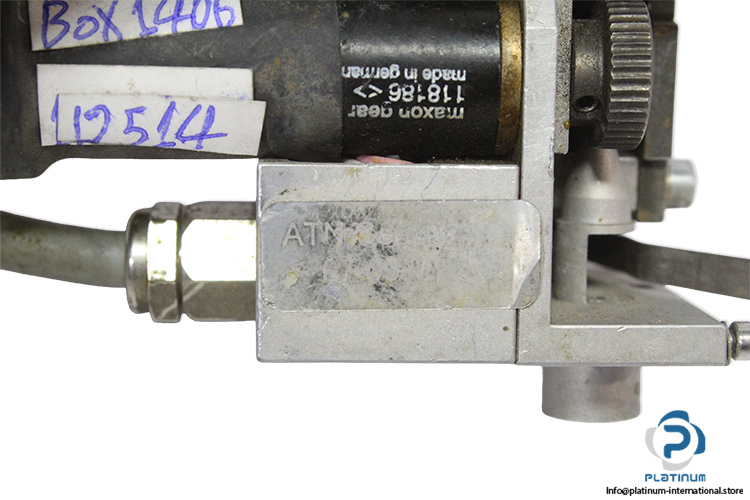

Maxon 118186 Planetary Gearhead
Used
In stock1 unitReady to ship
Planetary Gearhead Compact MAXON 118 186 planetary gearhead with 157:1 reduction, high precision, and durable stainless steel output shaft for advanced motion control applications.
111818615716mm3CompactControlEfficGearboxGearheadHighIndustrialMaxonMiniMotionPlanetaryPrecisionshaftStagestainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 118 186 |
| Diameter | 16 mm |
| Planetary Gearhead | straight teeth |
| Output shaft | stainless steel, hardened |
| Bearing at output | sleeve bearing |
| Radial play, | 6 mm from flange max. 0.06 mm |
| Axial play | 0.02–0.10 mm |
| Max. axial load (dynamic) | 8 N |
| Max. force for press fits | 100 N |
| Max. continuous input speed | 8000 rpm |
| Recommended temperature range | -30…+100°C |
| Extended range as option | -40…+100°C |
| Reduction | 157 : 1 |
| Absolute reduction | 19683/125 |
| Max. motor shaft diameter | 1.5 mm |
| Number of stages | 3 |
| Max. continuous torque | 0.20 Nm |
| Max. intermittent torque at gear output | 0.300 Nm |
| Max. efficiency % | 73 |
| Average backlash no load | 2.0 ° |
| Mass inertia | 0.04 gcm2 |
| Gearhead length L1 | 22.7 mm |
| Condition | Used |
| SKU | 1096768 |
| Weight | 0,20 |
