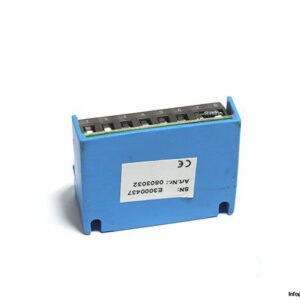

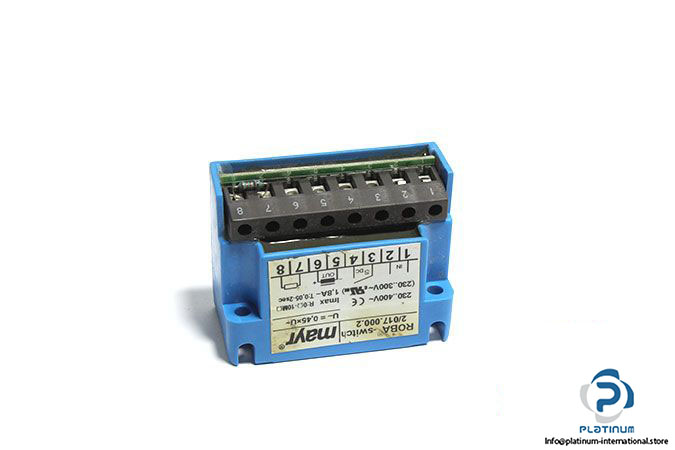

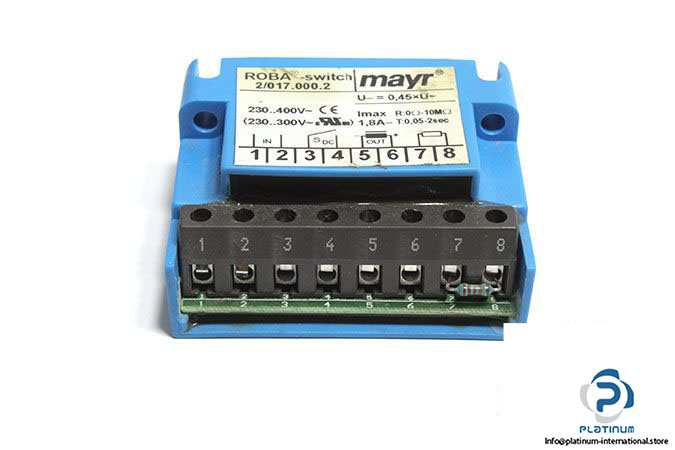

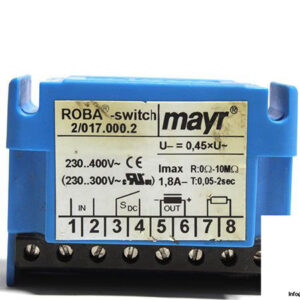

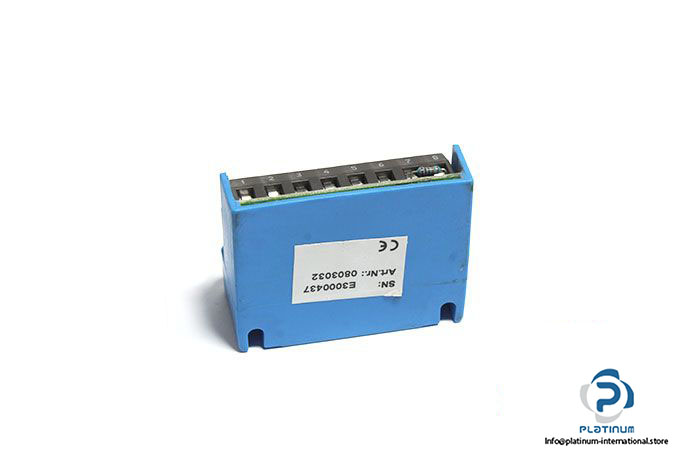

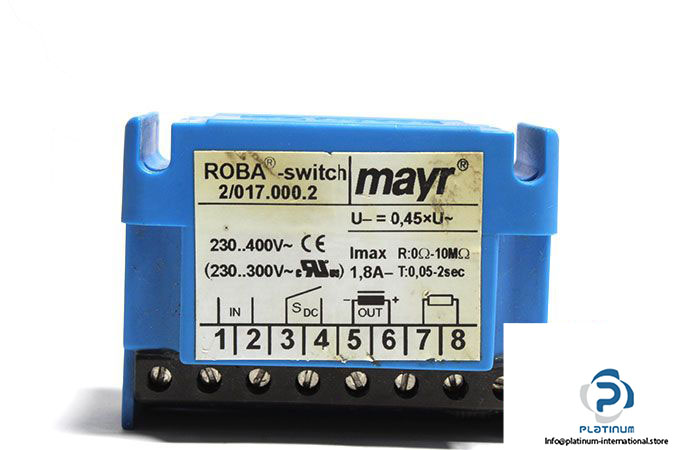

Mayr 2/017.000.2 Switch

Manufacturer: Mayr

Type: ROBA–Switch

Model: 2/017.000.2

The ROBA®-switch is used for the operation with 115 – 500

UAC-supply voltage. There is an internal switching from bridge

connection to half wave rectification

Size: 1

Input Voltage: 230 V AC, ± 10 %

Output DC Voltage U_bridge: 207 V DC

Output DC Voltage U_half-wave: 104 V DC

Current I_eff: 2 Amp.

Switch Off Energy: Max 9J/2 ms

Power Dissipation: Max 0,1 Watt

Rated Voltage Free Terminals: 250 V

Protection Class: IP65 / IP20 Terminals

Ambient Temperature: -25 °C up to +85 °C

Weight: 0.1 kg
