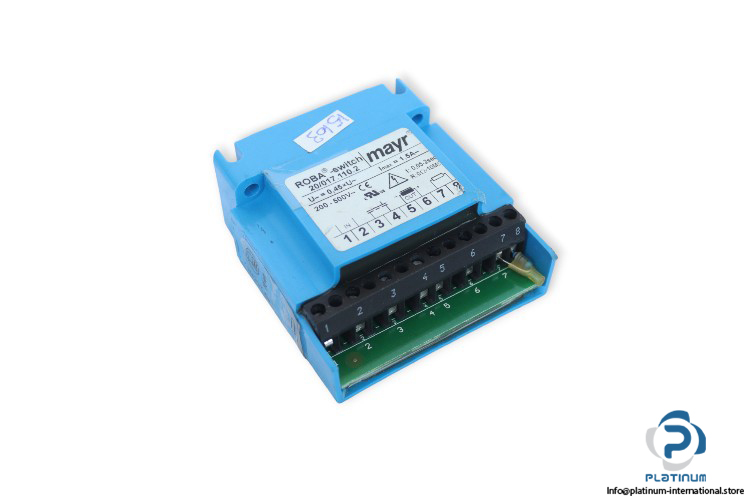

Mayr 20/017.110.2 Fast Acting Rectifier

Manufacturer: Mayr
Type: Fast acting rectifier
Model: 20017.110.2

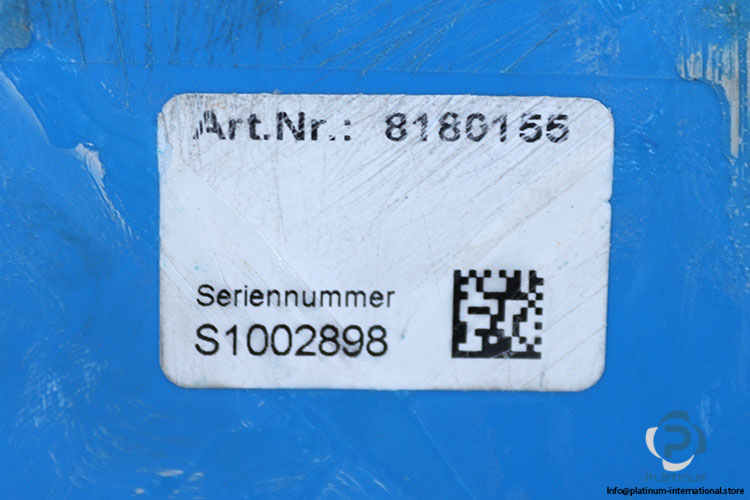

ART. No.: 8180155

Input voltage: 400 V AC (200 … 500 V AC)
Maximum output current I_RMS: 1.5 A
Overexcitation time: 0.05 … 2 s
External resistors: 0 … 10 Mohm
Output voltage U_half-wave: 90 … 225 V DC
Device fuses: FF 4 A (H) (6.3 x 32 mm)
Protection degree: IP65 components, IP20 terminals
Terminals: Nominal cross-section 1.5 mm² (AWG 22-14), screws M3
Tightening torque: 0.5 Nm max.
Ambient temperature: -25 … +70°C
Size: 20
Dimensions: 69 x 73.6 x 30 mm
