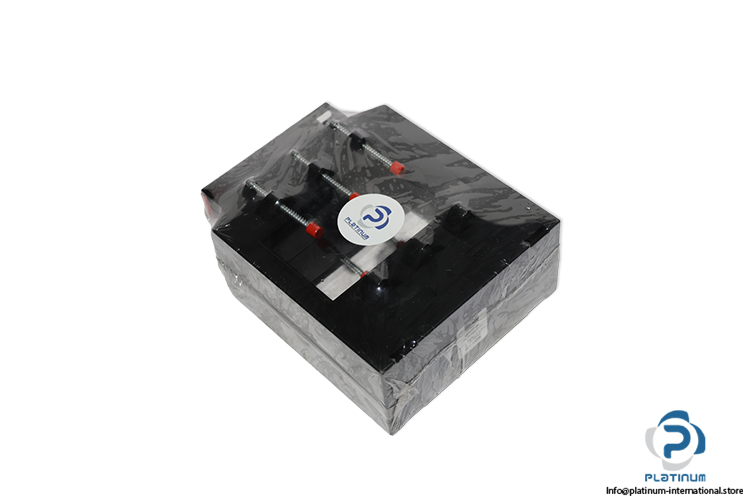

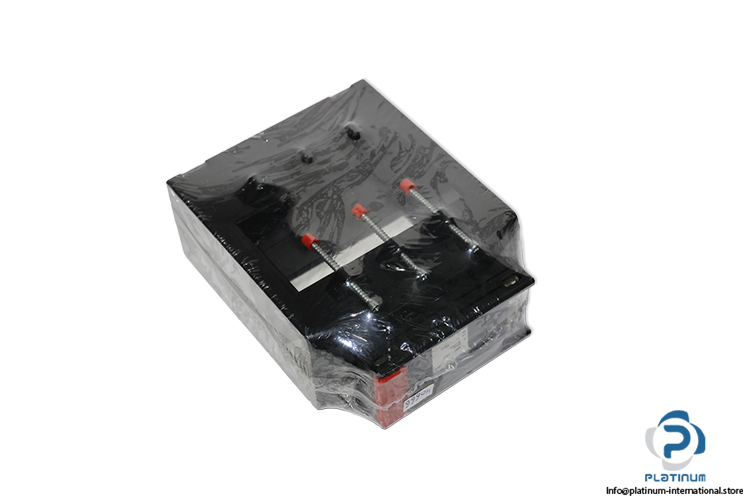

MBS ASK 105.6 Current Transformer
New
Available on request
Current Transformer MBS current transformer with 2000 A primary current, 1 A secondary output and 10 VA rated burden, designed for industrial electrical measurement and monitoring
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

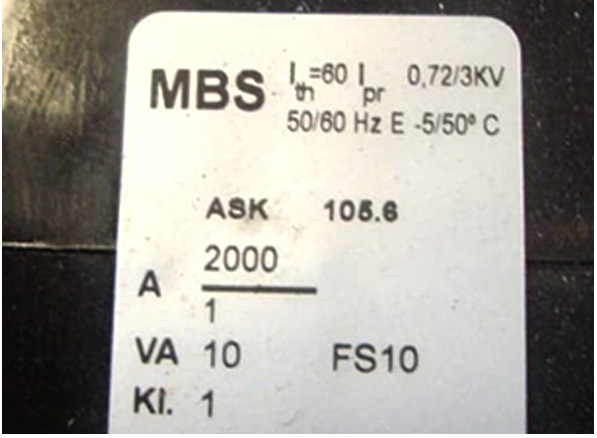

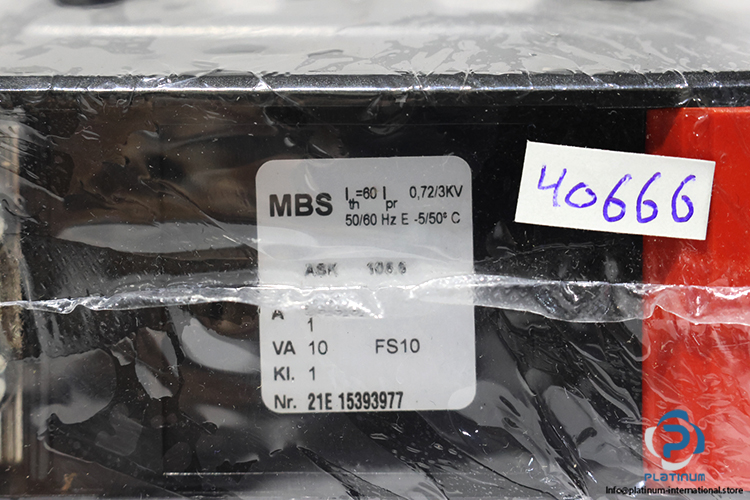

| Part No. | 21E 15393977 |
| Rated Power Burden | 10 VA |
| Rated Primary Current | 2000 A |
| Rated Secondary Current | 1 A |
| Thermal nominal continuous current Icth | 1,0 x Ipr |
| Thermal nominal short-time current Ith | 60 x Ipr, 1 Sec. |
| Max. operating voltage Um | 0,72 kV |
| Isolation test voltage | 3 kV, Ueff, 50 Hz, 1 Min. |
| Nominal rated frequency | 50/60 Hz |
| Isolation class | E |
| Working temperature range | -5 … +50°C |
| Dimensions | 167 x 129 x 78 mm |
| Condition | New |
| Stock key | EU002 |
| SKU | 1098249 |
| Weight | 1,31 |
