Meccanica Combi 740 Motor Pump
Used
In stock1 unitReady to ship
Underground Oil-Hydraulic Operator for Swinging Gate
Meccanica Fadini COMBI 740 offers reliable torque (235 Nm) and high efficiency (1350 rpm) for swinging gate automation. With a temperature range of -20 to 80°C and 30 bar pressure capacity, it’s designed for heavy-duty performance. aa230235740AutomationCombiDutyFadiniGateHeavyMeccanicaNmOil-HydraulicOperatorSwingingTorqueUndergroundV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

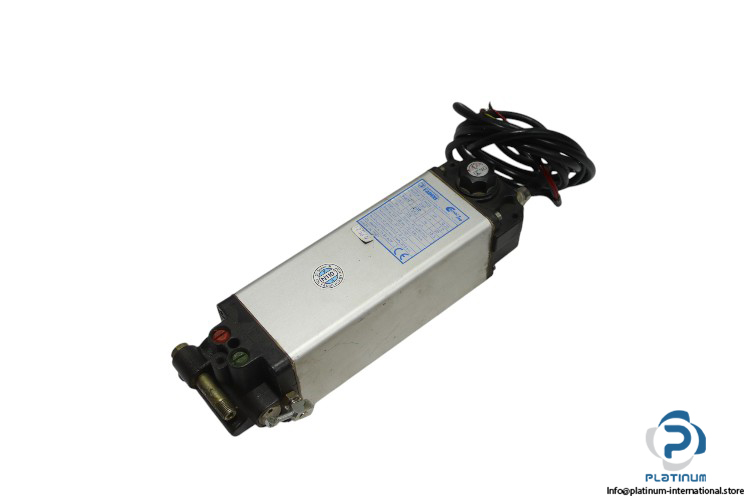

Meccanica Fadini COMBI 740 Underground Oil-Hydraulic Operator for Swinging Gate
The Meccanica Fadini COMBI 740 is an oil-hydraulic operator designed for smooth, reliable operation of swinging gates. With a torque of 235 Nm and a speed of 1350 rpm, it provides strong and efficient performance for a variety of gate automation needs.

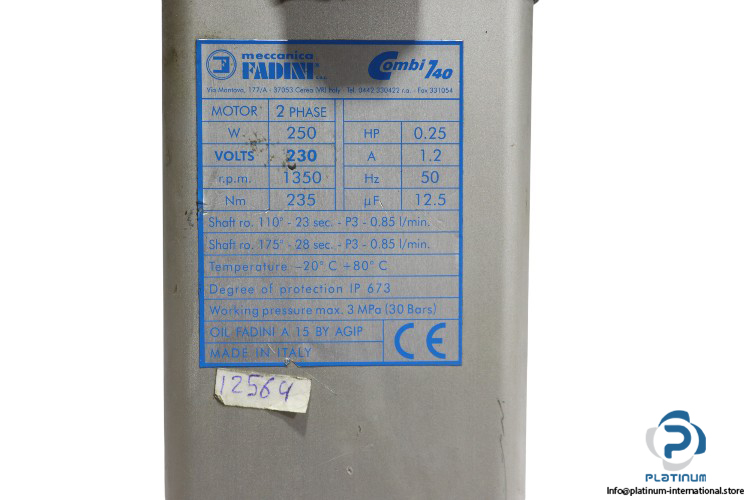

Manufacturer: Meccanica Fadini
Type: Underground Oil-Hydraulic Operator for Swinging Gate
Model: COMBI 740
| Torque | 235 Nm |
| Speed | 1350 rpm |
| Voltage | 230 V |
| Power | 250 W |
| Current | 1.2 A |
| Capacity | 12.5 micro-farad |
| Frequency | 50 Hz |
| Flow Coefficient | 0.25 CV |
| IP Rate | 673 |
| Oil Type | A 15 FADINI by AGIP |
| Max. Pressure | 30 bar |
| Motor | 2 phases |
| Shaft Rotation | 110°, 175° (23 “ 28) sec |
| Flow Rate | 0.85 l/min |
| Temperature Range | -20 to 80°C |
