Mecman 166/63/160 ISO Cylinder
Used
In stock2 unitsReady to ship
ISO Cylinder
The MECMAN 166/63/160 ISO Cylinder is a durable and efficient pneumatic actuator with a 63 mm bore diameter, 160 mm stroke length, and 10 bar maximum pressure. Designed for reliable industrial applications.10160166/63/16020270°3/86380ActingActuatorAirbarboreCompressedconnectionCylinderdiameterDimensionsDoubleframeGISOLengthmaleMaxMecmanmmPneumaticPressureRODStrokex
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

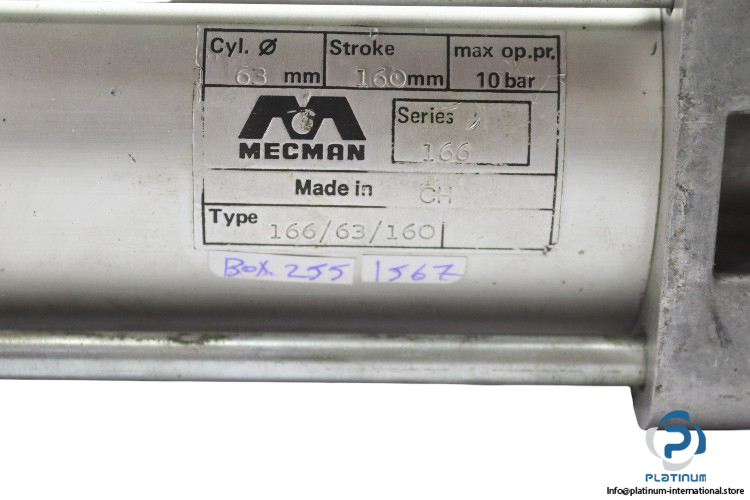

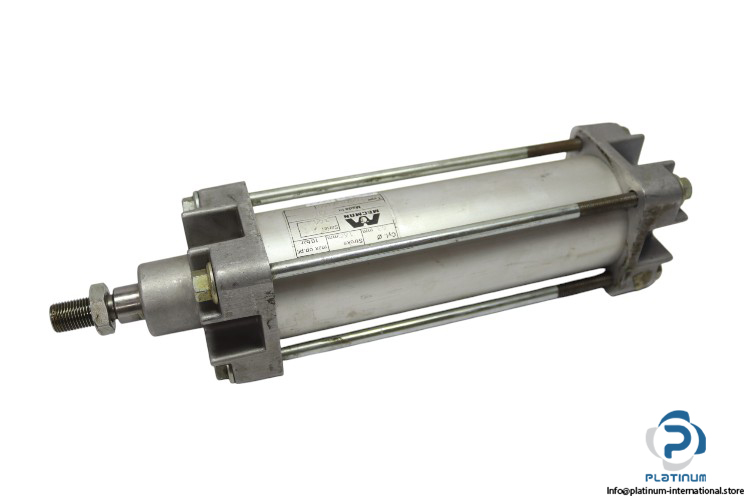

MECMAN 166/63/160 ISO Cylinder
The MECMAN 16663160 ISO Cylinder is a high-performance pneumatic actuator designed for reliable operation in industrial applications. Featuring a robust design with a 63 mm bore diameter and 160 mm stroke length, this double-acting cylinder ensures smooth and efficient operation.
Manufacturer: MECMAN
Type: ISO Cylinder
Model: 166/63/160
| Media | Compressed Air |
| Bore Diameter | 63 mm |
| Stroke Length | 160 mm |
| Bore x Stroke | 63 x 160 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 80 x 270 mm |
| Pneumatic Connection | G 3/8 |
| Pressure Max | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
