Mecman 167-04-0000-1 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
MECMAN 167-04-0000-1 ISO Cylinder is built for industrial pneumatic systems, offering precise motion control and high durability. Featuring a 40 mm bore, 75 mm stroke, and double-acting operation, it provides optimal efficiency. Designed with a square frame and a male piston rod end, this cylinder is suitable for demanding automation applications.1/4167-04-0000-140mm75mmActuatorAirautomAutomationboreCompressedconnectionControlCylinderdouble-actingGhigh-performanceIndustrialISOMecmanMotionPneumaticPrecisionSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

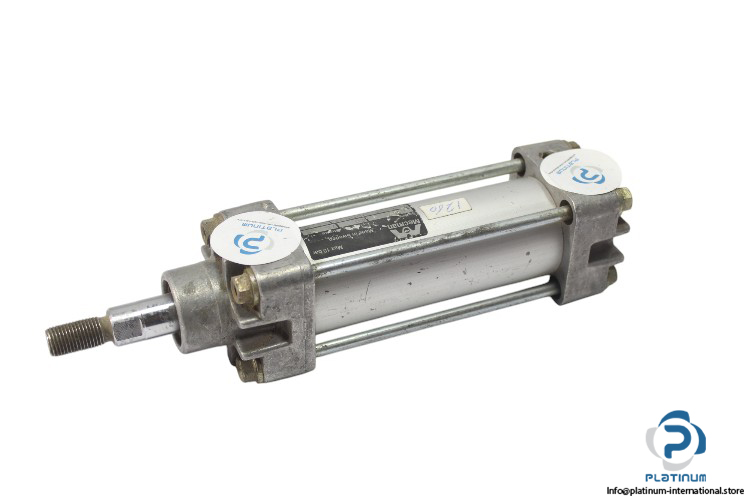

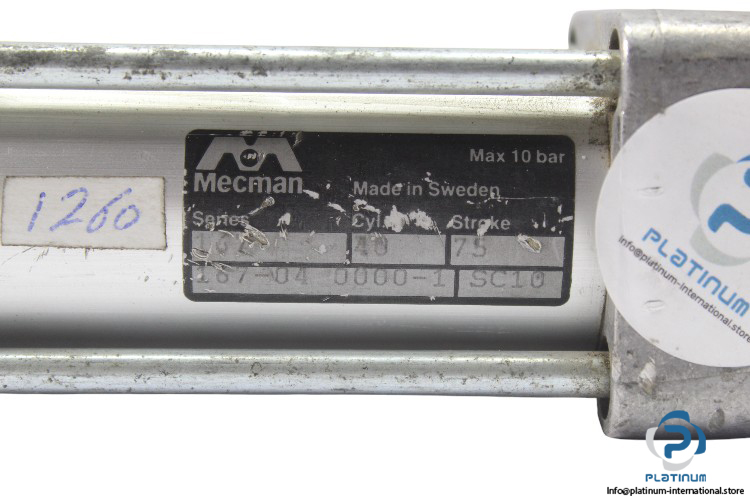

MECMAN 167-04-0000-1 ISO Cylinder
The MECMAN 1670400001 ISO Cylinder is a high-performance pneumatic actuator designed for industrial applications requiring precise motion control and durability. This double-acting cylinder operates efficiently with compressed air, providing reliable and smooth performance for automation and mechanical systems.
Manufacturer: MECMAN
Type: ISO Cylinder
Model: 167-04-0000-1
| Media | Compressed Air |
| Bore Diameter | 40 mm |
| Stroke | 75 mm |
| Bore x Stroke | 40 x 75 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 56 x 195 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
