Mecman 167-08-0800-1 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
MECMAN ISO Cylinder 167-08-0800-1 designed for compressed air use, features a bore diameter of 80 mm, stroke of 80 mm, and double operation mode. The square-shaped cylinder is built for high-efficiency performance in pneumatic systems.167-08-0800-180AirAutomationboreCompressedCylinderdiameterDoubleEndIndustrialISOmaleMecmanmmModeOperationPistonPneumaticRODStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

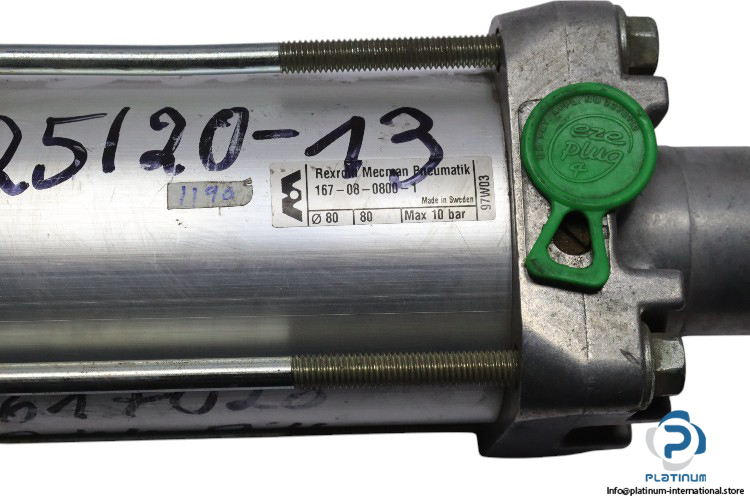

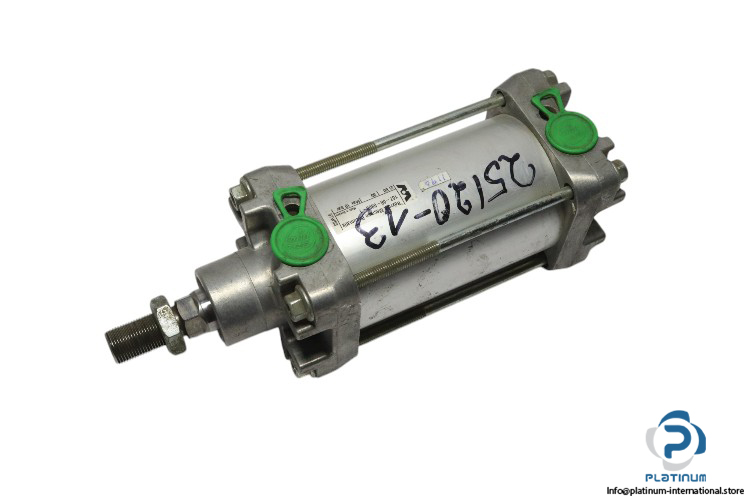

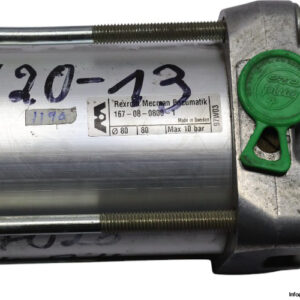

MECMAN ISO Cylinder 167-08-0800-1
The MECMAN ISO Cylinder 1670808001 is a high-performance pneumatic cylinder designed for use with compressed air. Featuring a double operation mode and robust design, it offers reliable performance in industrial automation applications. This square-shaped cylinder is optimized for efficiency, with a bore diameter of 80 mm and a stroke of 80 mm.
Manufacturer: MECMAN
Model: 167-08-0800-1
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 80 mm
- Bore x Stroke: 80 x 80 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 95 x 240 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
