Mecman 167-51-0600-2 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
MECMAN ISO Cylinder 167-51-0600-2 designed for compressed air systems, featuring a 63 mm bore diameter, 100 mm stroke, and maximum pressure of 10 bar. Ideal for double-acting applications with a square shape and male piston rod end.100167-51-0600-263AirboreCompressedCylinderdouble-actingIndustrialISOMecmanmmPneumaticShapeSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

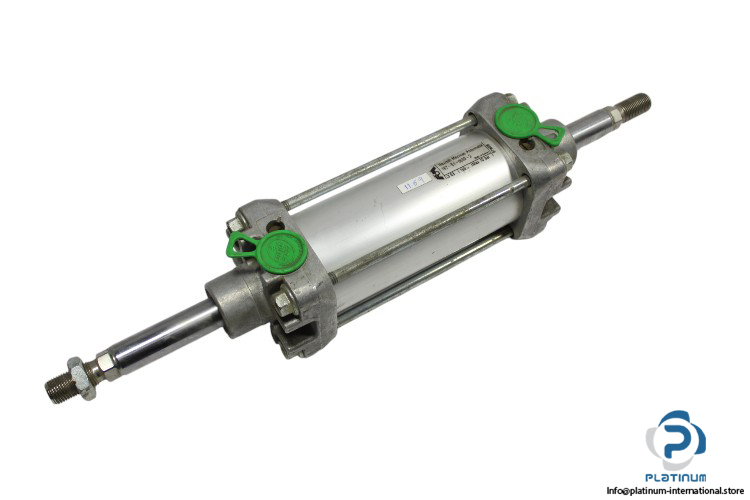

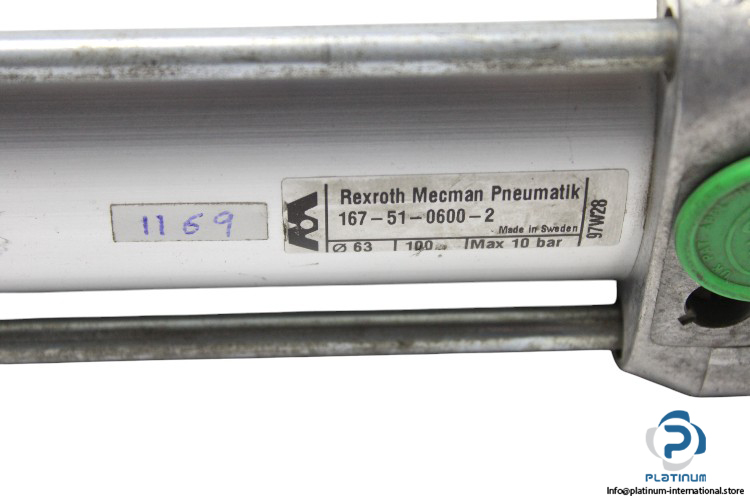

MECMAN ISO Cylinder 167-51-0600-2
The MECMAN ISO Cylinder 1675106002 is designed for reliable pneumatic operations in industrial applications. With a double-acting piston, square shape, and a wide range of technical features, this ISO cylinder ensures high efficiency and durability in compressed air systems.
Manufacturer: MECMAN
Model: 167-51-0600-2
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 100 mm
- Bore x Stroke: 63 x 100 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 81 x 270 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: Both Side
