Megatron-Munchen MCP40RA Conductive Plastic Potentiometer
New
In stock1 unitReady to ship
Conductive Plastic Potentiometer
MEGATRON-MÃœNCHEN MCP40RA precision potentiometer with 360° continuous rotation, 0.1% linearity, servo flange mounting, and gold-plated soldering pins for industrial position control applications.3606ConductiveDegreeFlangeGoldIndustrialIP40MCP40RAMEGATRON-MÃœNCHENmmPinsPlasticPlatedPositionPotentiometerPrecisionSensorServoshaft
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

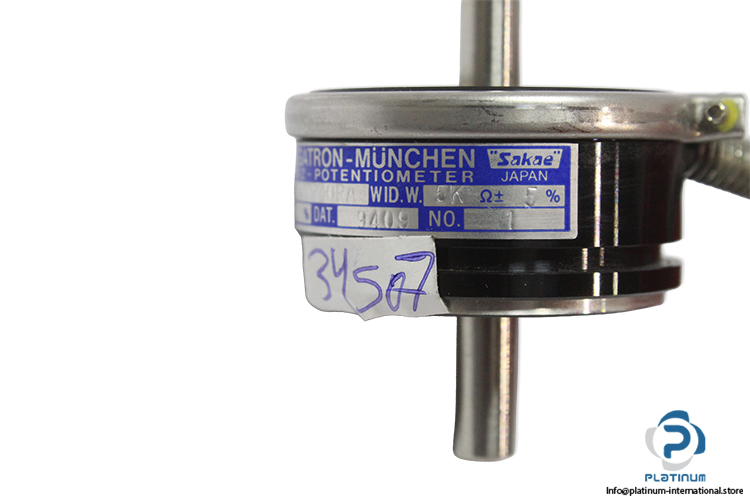

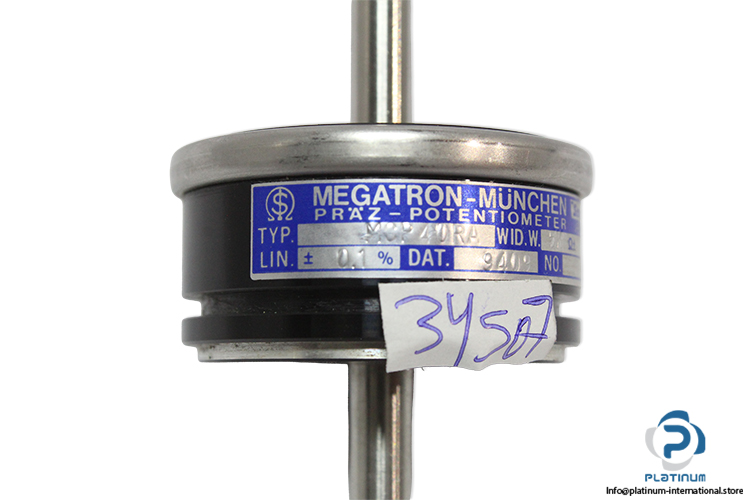

MEGATRON-MÃœNCHEN MCP40RA Conductive Plastic Potentiometer
The MEGATRON-MÃœNCHEN MCP40RA is a precision conductive plastic potentiometer designed for accurate position sensing and industrial control applications. Part of the MCP40 series, this model features 360° continuous rotation without stop, high linearity, and durable metal housing construction.
Manufacturer: MEGATRON-MÃœNCHEN
Type: Conductive Plastic Potentiometer
Model: MCP40RA
Code No.: 9409
Series: MCP40
| Shaft Diameter | 6 mm |
| Housing Diameter | 37 mm |
| Electrical Connection | Radial |
| Mounting | Servo Flange |
| Linearity | 0.1 % |
| Maximum Resistance | 5 kOhm |
| Resistance Tolerance | ±5 % |
| Total Resistance | 0.5 kOhm up to 200 kOhm |
| Mechanical Angle Of Rotation | 360° Without Stop |
| Max. Operational Speed | 400 rev./min. |
| Max. Radial Load | 1 N |
| Max. Axial Load | 1 N |

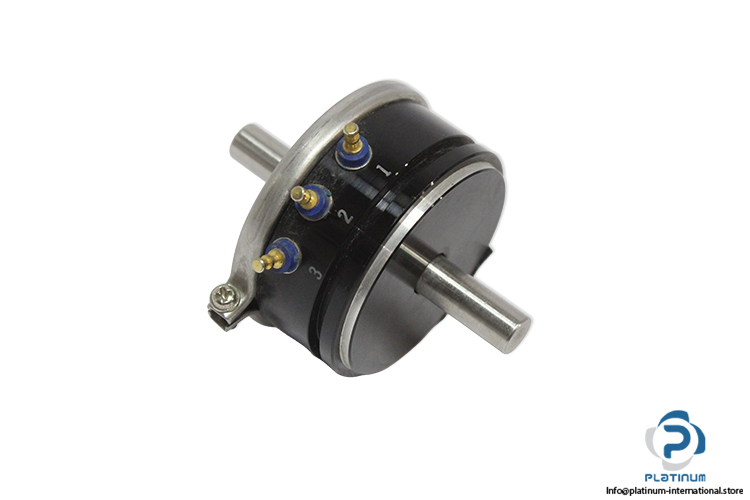

| Connection Type | Gold Plated Soldering Pins |
| Operating Temperature Range | -55 °C up to +125 °C |
| Storage Temperature Range | -55 °C up to +125 °C |
| Protection Grade (IEC 60529) | IP40 |
| Material Shaft | Stainless Steel |
| Material Housing | Metal |
