Mercoid Control DA-33-2 Bourdon Tube Pressure Switch
New
In stock1 unitReady to ship
Pressure Switch
Mercoid Control DA-33-2 bourdon tube pressure switch with SPST action, multiple voltage ratings, adjustable deadband, and durable steel housing for industrial pressure control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

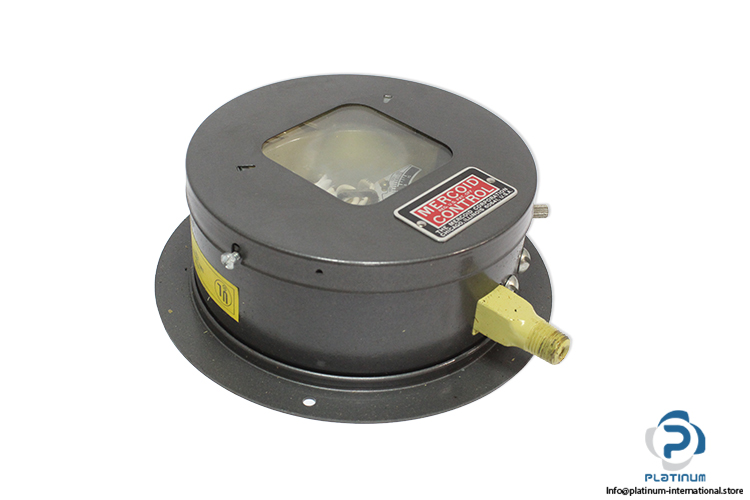

Mercoid Control DA-33-2 Bourdon Tube Pressure Switch
The Mercoid Control DA-33-2 is a robust bourdon tube pressure switch designed for precise pressure monitoring and reliable switching performance in industrial applications. It features durable construction, adjustable settings, and dependable electrical ratings suitable for AC and DC circuits.
Manufacturer: Mercoid Control
Type: Bourdon Tube Pressure Switch
Model: DA-33-2
Series: DA
Code: R7 / RG-7
Serial No.: 4D439710

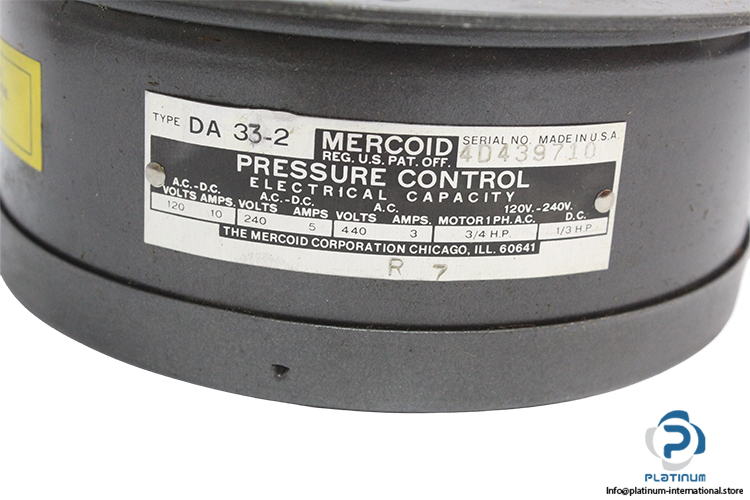

Electrical Capacity:
| AC / DC | 120 V “ 10 A |
| AC | 240 V “ 5 A |
| AC | 440 V “ 3 A |
| Motor Rating | 3/4 HP (AC), 1/3 HP (DC) |
| Switch Type / Action | SPST (Single Pole Single Throw), Opens On Increase |
| Maximum Temperature | 180 °F |
| Pressure Connection | 1/4" NPT |
| Housing | Pressed steel with transparent cover |
| Deadband | Adjustable Deadband, Fixed Deadband, Fully Automatic, Double Adjustments |
