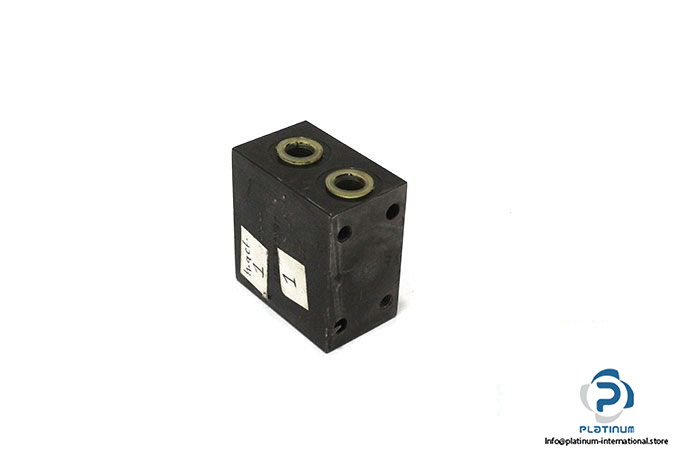

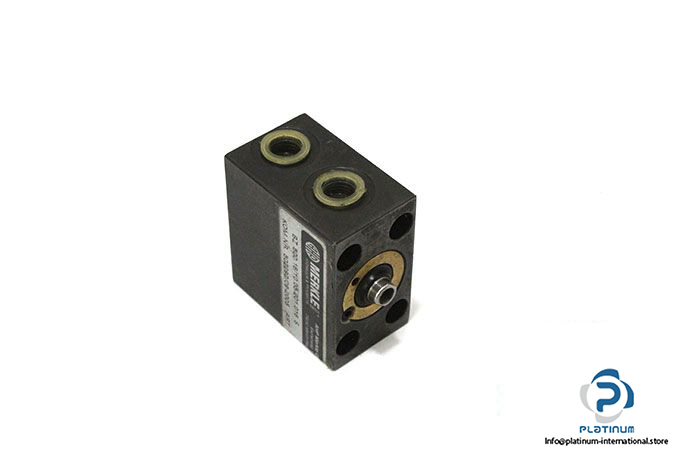

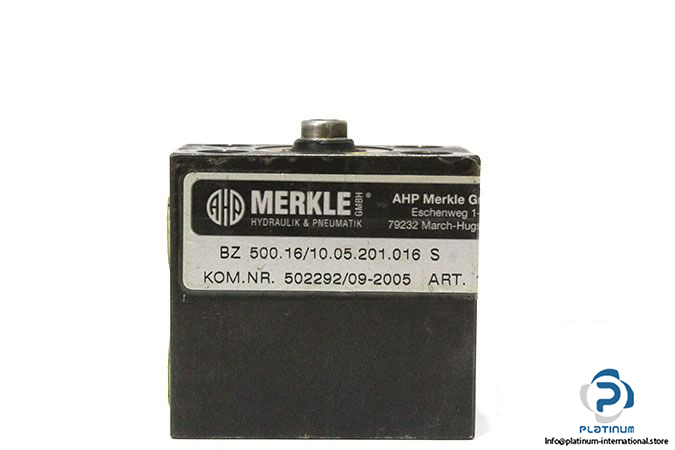

Merkle BZ 500.16/10.05.201.016 S Hydraulic Block ‎Cylinder‎

Manufacturer: MERKLE

Type: Hydraulic Block Cylinder

Model: BZ 500.16/10.05.201.016 S

Art No.: 113682

Piston Diameter: 16 mm

Rod Diameter: 10 mm

Stroke: 16 mm

Cylinder Shape: Rectangle

Mode of operation: Double-Acting

Maximum operating pressure: 500 bar

Piston rod thread: Female

Temperature range: 0 …. 180 °C

Connection: ¼ G

Stroke (total length): 56 mm

Width: 60 mm

Weight: 0.77 kg
