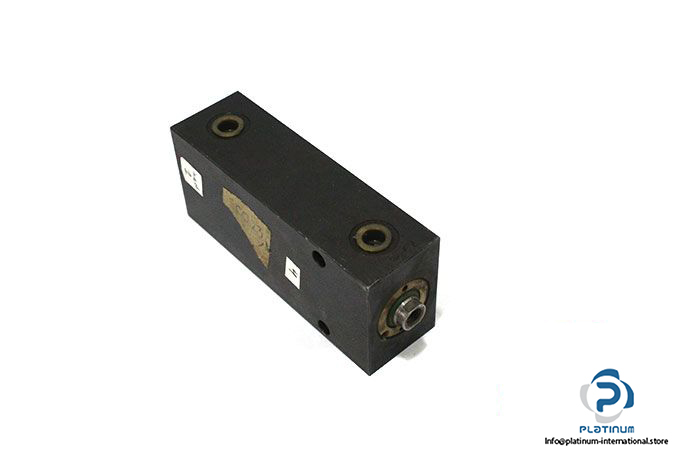

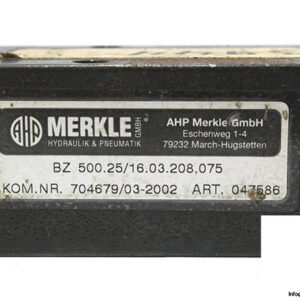

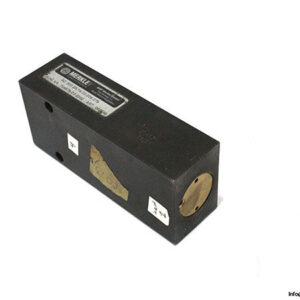

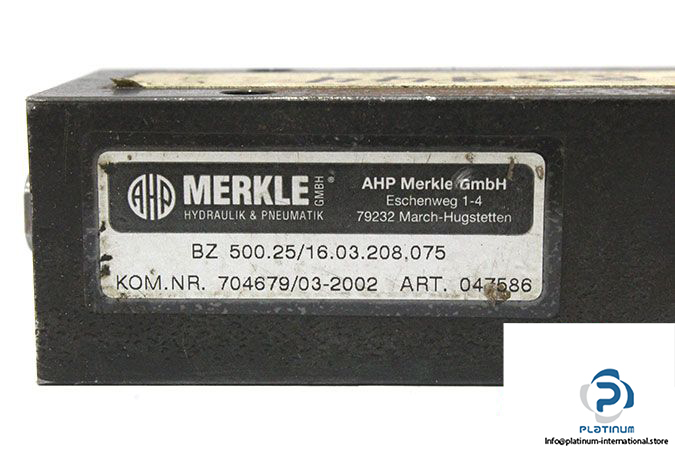

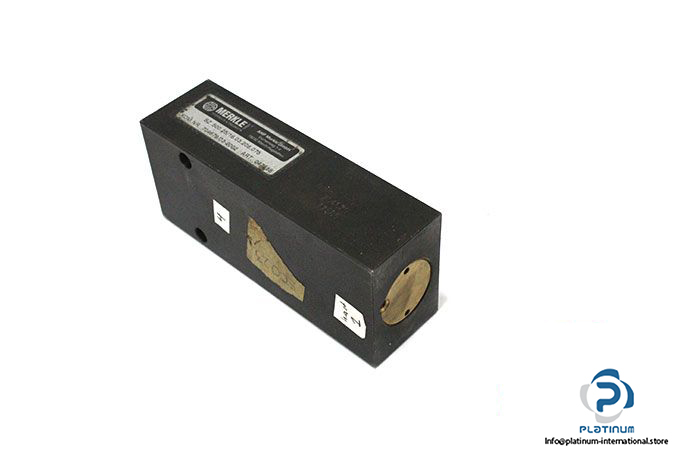

Merkle BZ 500.25/16.03.208.075 Hydraulic Block ‎Cylinder‎

Manufacturer: MERKLE

Type: Hydraulic Block Cylinder

Model: BZ500.25/16.03.208.075

Art No.: 047586

Piston Diameter: 25 mm

Rod Diameter: 16 mm

Stroke: 75 mm

Cylinder Shape: Rectangle

Mode of operation: Double-Acting

Maximum operating pressure: 500 bar

Piston rod thread: Female

Temperature range: 0 …. 180 °C

Connection: ¼ G

Stroke (total length): 151 mm

Width: 65 mm

Weight: 3.1 kg
