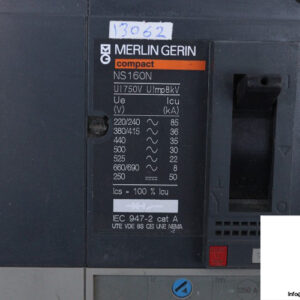

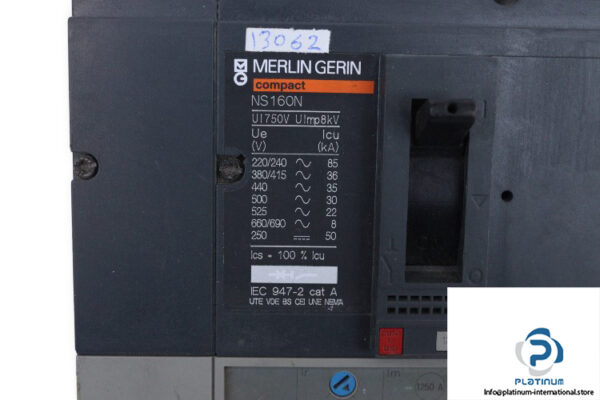

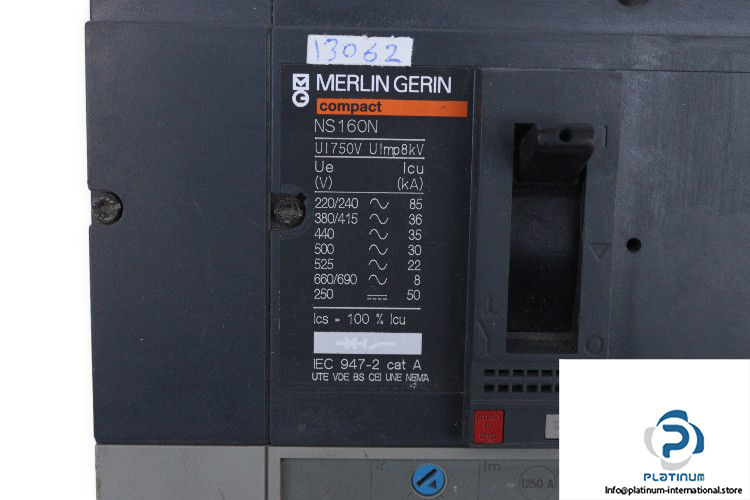

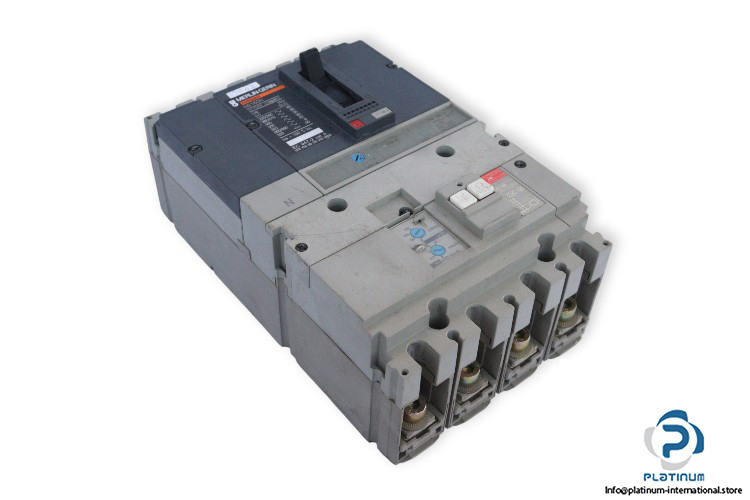

Merlin Gerin NS 160N Circuit Breaker

Manufacturer: MERLIN GERIN
Type: Circuit Breaker
Model: NS160N

Supply Voltage: 200 / 440 V AC
Rated Current: 160 A
Operating Frequency: 50 … 60 Hz
No. of Poles: 3-Pole
Rated Impulse Voltage (Uimp): 8 kV
Rated Insulation Voltage (Ui): 750 V
Service Switching Capacity (Ics):
220/240 V AC: 85 kA
380 / 415 V AC: 36 kA
440 V AC: 35 kA
500 V AC: 30 kA
525 V AC: 22 kA
660 / 690 V AC: 8 kA
250  V DC: 50 kA
Breaking Switching Capacity (Icu):
220/240 V AC: 85 kA
380 / 415 V AC: 36 kA
440 V AC: 35 kA
500 V AC: 30 kA
525 V AC: 22 kA
660 / 690 V AC: 8 kA
250  V DC: 50 kA
Protection Class: IP40
Temperature: -25 … 70 °C
Dimensions: 161 x 105 x 86 mm
